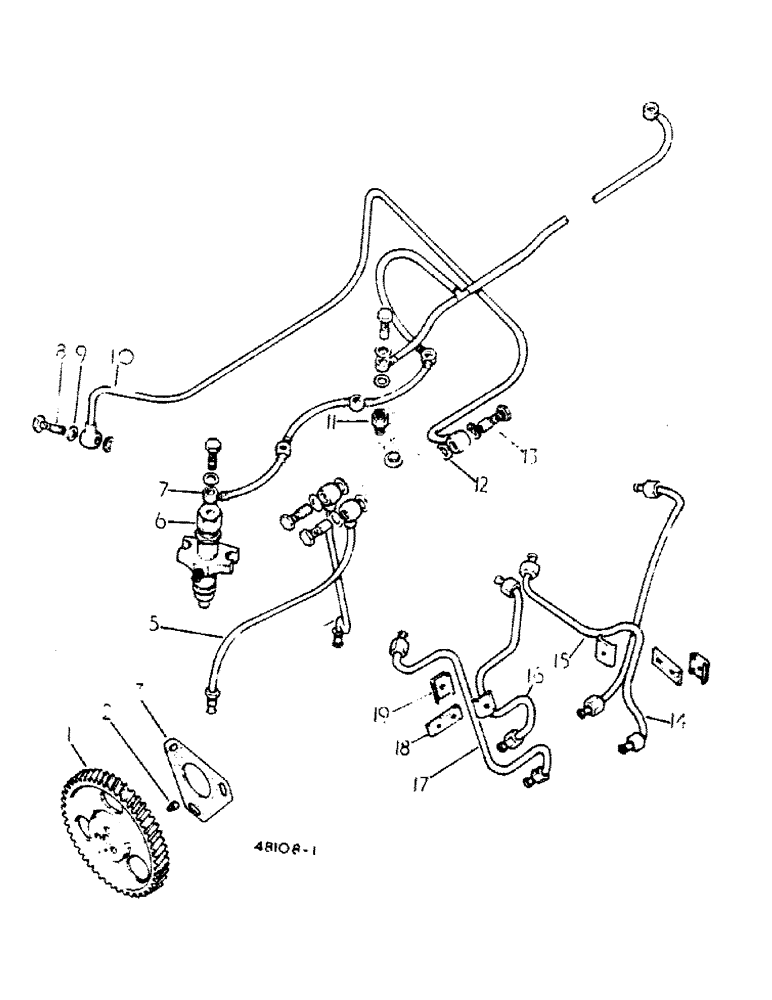

Запчасти Case IH 2350 (1-09) - FUEL INJECTION SYSTEM (02) - ENGINE

1

708290R11

GEAR

w/PIN 708291R1 cpte., injection pump

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

5/16" UNF x 3/4" hex. hd.

1шт.

w/lockwasher ext. tooth

3шт.

2

708291R1

DOWEL

PIN, dowel

1шт.

3

708289R2

GASKET

injection pump

1шт.

4

3043650R93

PIPE

cpte., fuel filter to injection pump

1шт.

5

3043651R91

PIPE

injection pump to filter, excess fuel

1шт.

6

3040870R94

NOZZLE CAP

NOZZLE, cpte., and nozzle holder (See detail list)

4шт.

103026

NUT,3/8"-24, G5

3/8-24, G5

8шт.

706077R1

WASHER

8шт.

7

3112580R91

PIPE

fuel spill

1шт.

8

708296R1

CONNECTOR, ELEC

BOLT, fuel feed pump banjo Opt.

2шт.

8

3070324R1

BOLT,1/2" - 20 x 1.067"

fuel feed pump banjo Opt.

2шт.

9

708297R1

GASKET

WASHER, banjo bolt

4шт.

10

3043649R94

PIPE

fuel, fuel pump to filter, cpte.

1шт.

3043655R1

CLIP

fuel pipe

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

3138812R1

SCREW

connection

1шт.

795864R91

VALVE

assy, ball check

1шт.

701735R1

WASHER

2шт.

3049111R1

SEALING WASHER

1шт.

12

708297R1

GASKET

WASHER, banjo bolt

6шт.

13

708296R1

CONNECTOR, ELEC

BOLT, fuel filter banjo

3шт.

14

708309R21

PIPE

cpte., No. 3. injection

1шт.

15

708310R21

PIPE

cpte., No. 4. injection

1шт.

16

708308R31

PIPE

cpte., No. 2. injection

1шт.

17

708307R21

PIPE

cpte., No. 1. injection

1шт.

18

841433R1

INSULATOR BLOCK

PAD, injection pipe clip

2шт.

19

841432R1

CLAMP

CLIP

4шт.

3119161R1

NUT

MS nyloc

2шт.

3119162R1

SCREW

MS x 20 mm cheese hd. sltd

1шт.

708321R91

SEAL, governor

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

3шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 L.H.

3шт.

3111735R1

PLUG

closing

1шт.

3070777R1

SEALING WASHER

used on FUEL FILTER PORT

1шт.
