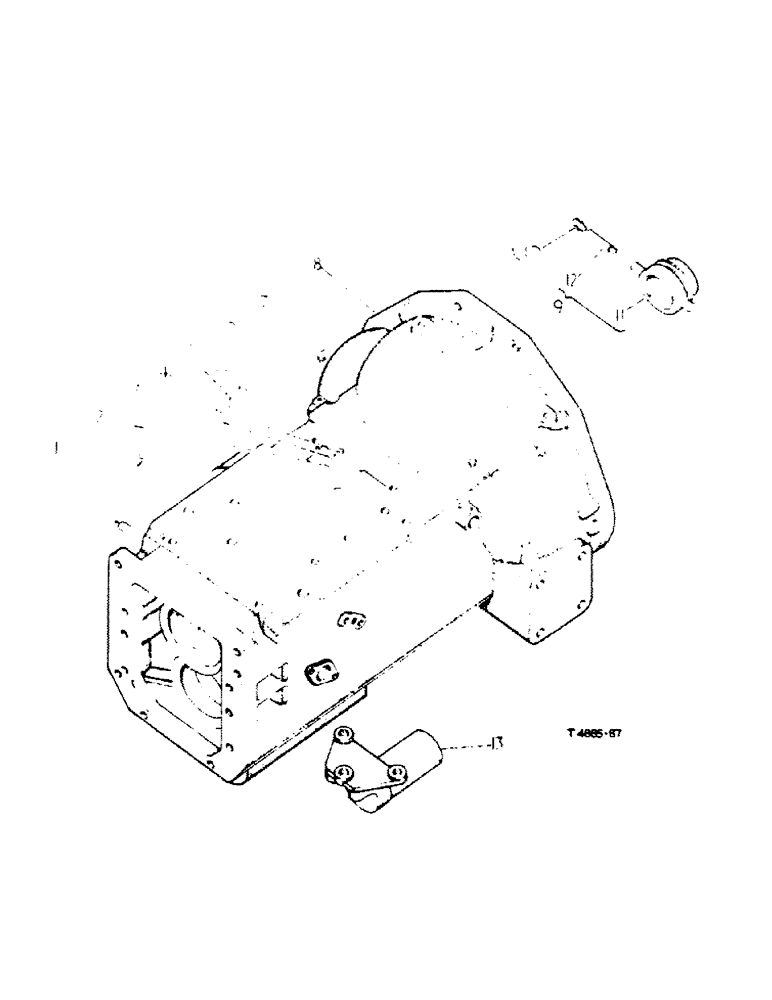

Запчасти Case IH 2350 (6-56) - CLUTCH HOUSING, MOWER DRIVE ATTACHMENT (06) - POWER TRAIN

1

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, sq. hd. pipe 1/2" Opt.

1шт.

1

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

1шт.

2

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

1шт.

3

Q102

WASHER

13/64" x 1/2" x 18 ga.

1шт.

4

57561D

VALVE SPRING

SPRING, clutch housing grease hole cover

1шт.

5

57559D

COVER, grease hole

1шт.

6

3072676R1

PIN

grease hole cover

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, angle lubrication, 1/8" PT - 90

2шт.

8

3070637R91

HOUSING, clutch Order HOUSING 3117762R91, SHAFT 3117766R91 & BEARING 3114943R91

1шт.

8

3117762R91

CLUTCH HOUSING

HOUSING, clutch comprising:

1шт.

BOLT 3069627R1

3шт.

FITTING 109462

2шт.

PLUG 438159

1шт.

WASHER 103325

3шт.

3069627R11

BOLT, special, 5/8" x 5/8"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

3070638R91

SLEEVE

clutch release assy., w/SLEEVE $ and FITTING 110146R91

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

11

SLEEVE, clutch release cpte.,, $ w/SLEEVE 3070639R1 and PIPE 3070642R1

1шт.

11

3070639R1

SLEEVE, clutch release

1шт.

12

3070642R1

PIPE

grease

1шт.

13

3070640R1

CARRIER

clutch release sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex. hd. 7/16" x 1-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3070653R91

PACKAGE, clutch housing service comprising:

1шт.

BOLT 179860

3шт.

COVER 57559D

1шт.

CARRIER 3070640R1

1шт.

FITTING 110146R91

1шт.

PIN 57558D

1шт.

PIN 103361

1шт.

SLEEVE 3070638R91

1шт.

SPRING 57561D

1шт.

WASHER Q102

1шт.

WASHER 103322

3шт.
