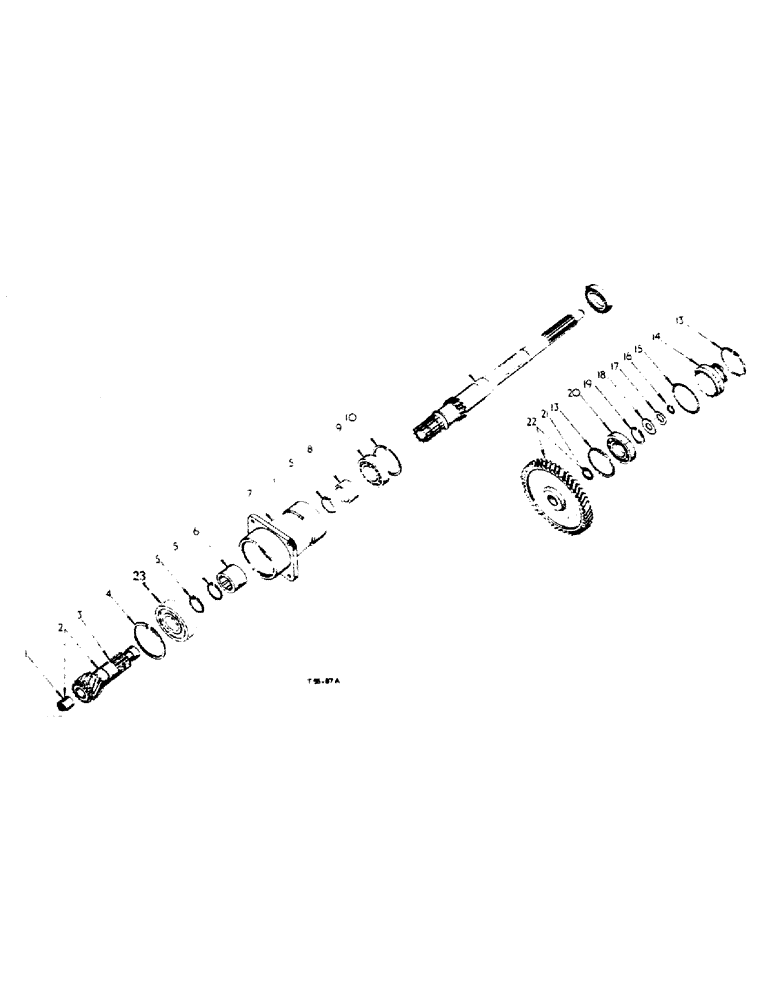

Запчасти Case IH 2350 (6-54) - SINGLE CLUTCH P.T.O. ATTACHMENT, P.T.O. GEARS AND SHAFTS (06) - POWER TRAIN

1

3115488R1

NEEDLE BEARING

"BEARING, trans spline pilot Opt."

1шт.

1

3069773R91

NEEDLE BEARING

"BEARING, trans spline pilot Opt."

1шт.

1

321981R91

NEEDLE BEARING

"BEARING, trans spline pilot Opt."

1шт.

1

3068951R91

NO LONGER SERVICED

"BEARING, trans spline pilot Opt."

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

"SPACER, pilot bearing"

1шт.

2

NOT SERVICED

1шт.

3

3070738R2

SHAFT

"SHAFT, trans driving" ON ORDERS FOR R1 ORDER SHAFT 3070738R2 w/ring 3119806R1

1шт.

4

751081R1

CLIP

"CIRCLIP, trans driving shaft rear ball" bearing retaining

1шт.

5

3048709R1

RING, SNAP

"CIRCLIP, trans driving shaft rear ball"

1шт.

bearing retaining

3шт.

UPTO

B014609 B000826 B005820 B000502 B000783 B000515 B000587

1шт.

5

3119806R1

RETAINER

RING, retaining B014610 UP B000827 B005821 B000503 B000784 B000516 B000588

1шт.

6

3049008R1

"COUPLING, splined"

1шт.

7

3049004R1

"CAGE, trans. spline shaft, bearing"

1шт.

8

3049007R1

"SPACER, trans. and P.T.O. driving shaft"

1шт.

9

703644R91

BALL BEARING

"BEARING, ball, trans. and P.T.O. Opt." driving shaft rear Opt.

1шт.

9

42454H

BALL BEARING

"BEARING, ball, trans. and P.T.O. Opt." driving shaft rear Opt.

1шт.

9

3114943R1

"BEARING, ball, trans. and P.T.O. Opt." driving shaft rear Opt.

1шт.

10

751149R1

RING

"CIRCLIP, trans. and P.T.O. driving shaft rear" "ball bearing, retaining"

1шт.

11

3048700R4

SHAFT

"SHAFT, driving, trans. and P.T.O."

1шт.

12

704229R91

OIL SEAL

"OIL SEAL, trans. and P.T.O. driving shaft Optional"

1шт.

12

704230R91

SEAL

"OIL SEAL, trans. and P.T.O. driving shaft Optional"

1шт.

12

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

"OIL SEAL, trans. and P.T.O. driving shaft Optional"

1шт.

13

751149R1

RING

"CIRCLIP, P.T.O. front bearing retaining"

1шт.

(85mm internal)

2шт.

14

751148R3

CAP

P.T.O. front bearing

1шт.

15

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O RING, P.T.O. front bearing, 3-3/8" x 3-3/4" x 3/16"

1шт.

16

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

17

NOT

USED

1шт.

18

751142R1

WASHER

P.T.O. shaft, front, retaining

1шт.

19

751146R1

RING

CIRCLIP, P.T.O. front bearing retaining (45mm ext.)

1шт.

20

704327R91

BEARING, BALL

BEARING, P.T.O. shaft, front Opt.

1шт.

20

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front Opt.

1шт.

20

42454H

BALL BEARING

BEARING, P.T.O. shaft, front Opt.

1шт.

20

708170R91

BEARING, BALL

BEARING, P.T.O. shaft, front Opt.

1шт.

21

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

22

3044007R11

GEAR

w/CIRCLIP 751145R1 cpte., driven P.T.O. (55 teeth);

1шт.

23

3048738R91

CRANKSHAFT BEARING

"BEARING, ball, trans. driving shaft rear"

1шт.

23

3048739R91

BEARING

"BEARING, ball, trans. driving shaft rear"

1шт.

23

85660H

BEARING

"BEARING, ball, trans. driving shaft rear"

1шт.

23

3048741R91

BALL BEARING

"BEARING, ball, trans. driving shaft rear"

1шт.

23

3063610R91

BALL BEARING

"BEARING, ball, trans. driving shaft rear" For use on machines fitted with 573 r.p.m. Single Speed C.R.P.T.O. Attachment "ATTACHMENT, Mower Drive (Factory)"

1шт.

3071394R91

"ATTACHMENT, Mower Drive" comprising: CLUTCH HOUSING MOWER DRIVE CONTROLS MOWER DRIVE GEAR AND SHAFTS (573 r.p.m.) For use on machines fitted with 783 r.p.m. Single Speed C.R.P.T.O. Attachment "ATTACHMENT, Mower Drive (Factory)"

1шт.

3071392R91

"ATTACHMENT, Mower Drive" comprising: CLUTCH HOUSING MOWER DRIVE CONTROLS MOWER DRIVE GEAR AND SHAFTS (783 r.p.m.) For use on machines fitted with two Speed C.R.P.T.O. "ATTACHMENT, Mower Drive (Factory)"

1шт.

3071390R91

"ATTACHMENT, Mower Drive" comprising: CLUTCH HOUSING MOWER DRIVE CONTROLS MOWER DRIVE GEAR AND SHAFTS (Two Speed)

1шт.
