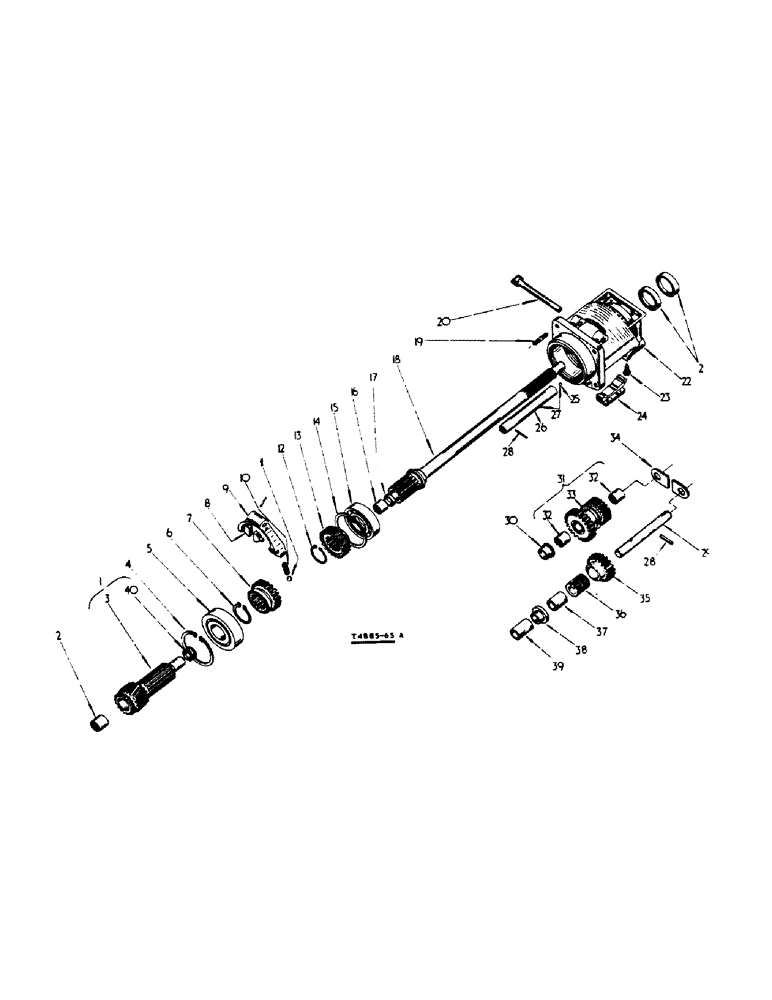

Запчасти Case IH 2350 (6-48) - FULL FORWARD AND REVERSE ATTACHMENT, KEY TO UNITS (06) - POWER TRAIN

CLUTCH SHAFT GEAR HOUSING AND GEARS (Tractors fitted w/dual clutch (A) GEAR HOUSING AND GEARS (Tractors fitted w/heavy duty single clutch) (B)

1шт.

1

3073620R91

SHAFT

"GEAR AND SHAFT, w/collar 3073619R1" cpte driving trans

1шт.

2

3115488R1

NEEDLE BEARING

"BEARING, pilot trans spline shaft Opt."

1шт.

2

321981R91

NEEDLE BEARING

"BEARING, pilot trans spline shaft Opt."

1шт.

2

3068951R91

NO LONGER SERVICED

"BEARING, pilot trans spline shaft Opt."

1шт.

2

3069773R91

NEEDLE BEARING

"BEARING, pilot trans spline shaft Opt."

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

" SPACER, pilot bearing distance piece"

1шт.

3

3070706

"GEAR AND SHAFT, trans driving", .R2 ON ORDER FOR R1 ORDER SHAFT, .R2 3070706R2 w/ring 3111806R1

1шт.

4

751081R1

CLIP

"CIRCLIP, trans driving shaft bearing" retaining

1шт.

5

3048783R91

"BEARING, ball rear trans driving shaft Opt."

1шт.

5

3048739R91

BEARING

"BEARING, ball rear trans driving shaft Opt."

1шт.

5

85660H

BEARING

"BEARING, ball rear trans driving shaft Opt."

1шт.

5

3048741R91

BALL BEARING

"BEARING, ball rear trans driving shaft Opt."

1шт.

5

3063610R91

BALL BEARING

"BEARING, ball rear trans driving shaft Opt."

1шт.

6

3048709R1

RING, SNAP

"CIRCLIP, retaining trans driving shaft rear" ball bearing

1шт.

UPTO

B014609 B000826 B005820 B000502 B000783 B000587 B000515

1шт.

6

3119806R1

RETAINER

RING, retaining B014610 HP B000827 B005821 B000503 B000784 B000516 B000588

1шт.

7

3048714R3

GEAR

output

1шт.

8

3048731R1

SHOE

gear shifter fork

2шт.

9

FORK, gear shifter (Order package 3067265R91)

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

10

3072000R1

SPRING

poppet gear shifter rail

1шт.

11

3072884R1

BALL

13/32" dia. grade 2

1шт.

12

3048709R1

RING, SNAP

CIRCLIP, clutch shaft rear ball bearing retaining (A)

1шт.

12

3048709R1

RING, SNAP

CIRCLIP, trans. and P.T.O. rear ball bearing retaining (B)

1шт.

13

3048711R1

GEAR

input

1шт.

14

751149R1

RING

CIRCLIP, clutch shaft rear ball bearing, retaining (A)

1шт.

14

751149R1

RING

CIRCLIP, trans. and P.T.O. rear ball bearing, retaining (B)

1шт.

15

3114943R91

BEARING

ball, clutch shaft rear Opt.

1шт.

15

703644R91

BALL BEARING

"BEARING, ball, clutch shaft rear (A) Opt."

1шт.

15

42454H

BALL BEARING

"BEARING, ball, clutch shaft rear (A) Opt."

1шт.

15

708170R91

BEARING, BALL

"BEARING, ball, clutch shaft rear (A) Opt."

1шт.

15

703644R91

BALL BEARING

"BEARING, ball, trans. P.T.O. driving shaft" rear (B) Optional

1шт.

15

704327R91

BEARING, BALL

"BEARING, ball, trans. P.T.O. driving shaft" rear (B) Optional

1шт.

15

42454H

BALL BEARING

"BEARING, ball, trans. P.T.O. driving shaft" rear (B) Optional

1шт.

15

708170R91

BEARING, BALL

"BEARING, ball, trans. P.T.O. driving shaft" rear (B) Optional

1шт.

16

3062462R91

BEARING

"BEARING, INA (A)"

1шт.

17

3062461R1

SPACER

"SPACER, pilot bearing distance piece (A)"

1шт.

18

3073618R2

SHAFT

" SHAFT, clutch (A)" ON ORDERS FOR R1 ORDER SHAFT 3073618R2 w/ring 3119806R1

1шт.

19

703877R1

STUD

3шт.

20

SHAFT, gear shifter fork (Order package 3067265R91)

1шт.

21

3070050R91

SEAL

OIL SEAL, clutch and p.t.o. driving shaft (A2) Optional

1шт.

21

3070049R91

SEAL

OIL SEAL, clutch and p.t.o. driving shaft (A2) Optional

1шт.

21

3048756R91

SEAL

OIL SEAL, clutch and p.t.o. driving shaft (A2) Optional

1шт.

22

3067261

HOUSING, gear carrier

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex hd

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

Screw mach hex Jam, 3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

3948721R1

BOLT, locking

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

3048730R2

RAIL

gear shifter

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4" x 7/8" hex hd

2шт.

141155

DOWEL,3/16" x 3/4"

PIN, dowel 3/16" x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

3072885R1

BALL,1/4" Dia

steel

1шт.

26

3048726R1

COUNTERSEAFT

1шт.

27

3048726R11

SHAFT

COUNTERSHAFT, w/ball 3072885R1 and COUNTERSHAFT 3048726R1 cpte

1шт.

28

443024

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, 3/16" x 1-1/4" type B groove

2шт.

29

3070705R1

SHAFT

idler

1шт.

30

3048725R1

SPACER

countershaft

1шт.

31

3048722R21

GEAR

w/GEAR and two BEARING 3048759R91 cpte., countershaft cluster

1шт.

32

3048759R91

BEARING

needle roller, countershaft cluster

1шт.

gear

2шт.

33

GEAR, countershaft cluster $

1шт.

34

3048715R4

THRUST WASHER

WASHER, thrust

1шт.

35

3070703R1

GEAR

idler, cpte.

1шт.

36

3070729R91

BEARING

needle roller, idler gear

2шт.

37

3070704R1

SLEEVE

idler gear, needle roller bearing

1шт.

38

3070707R1

SPACER

idler shaft

2шт.

39

3070708R1

TUBE,0.828" ID, 1.604" Length

idler spacer

1шт.

40

3073619R1

COLLAR

trans, driving shaft

1шт.

3067261R21

HOUSING

cpte., gear carrier (A) comprising:

1шт.

HOUSING 3067261R2

1шт.

FORK

1шт.

OIL SEAL 3048756R91

2шт.

PIN 17132R1

2шт.

SHAFT

1шт.

3067262R92

HOUSING

cpte., gear carrier (B) comprising:

1шт.

HOUSING 3067261R2

1шт.

FORK

1шт.

PIN 17132R1

2шт.

SHAFT

1шт.

3067265R91

FORK

PACKAGE, shifter fork, service (As required) comprising:

1шт.

FORK

1шт.

PIN 17132R1

2шт.

SHAFT

1шт.

3070727R91

PACKAGE

service, forward and reverse trans.

1шт.
