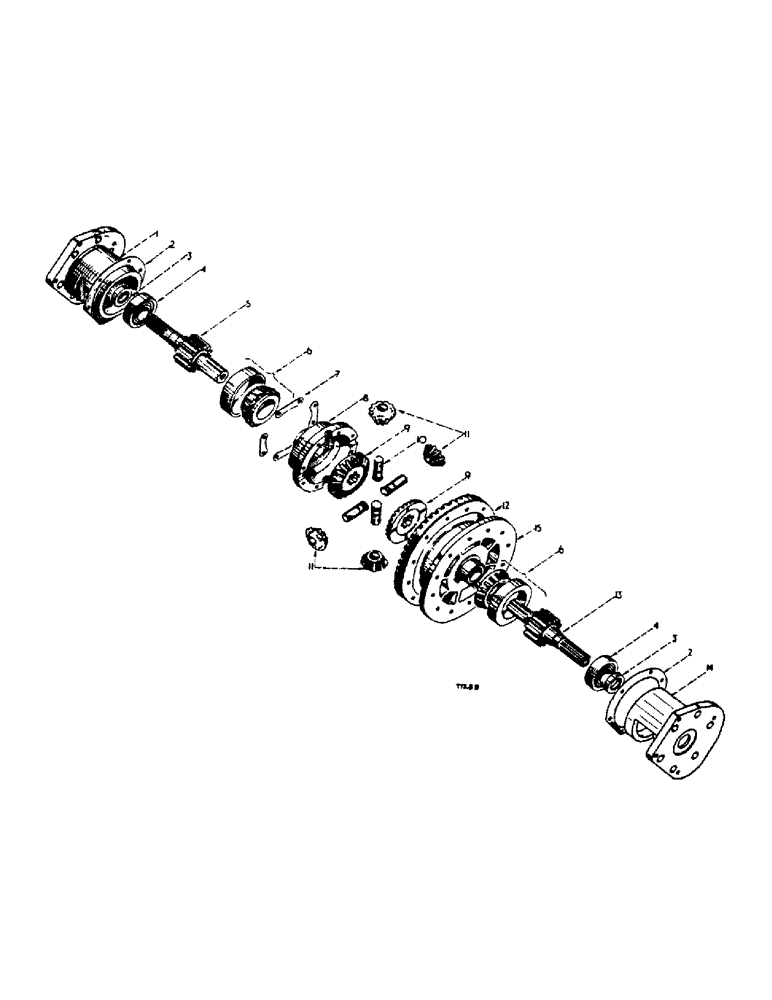

Запчасти Case IH 2350 (4-24) - DIFFERENTIAL (06) - POWER TRAIN

1

3071401R11

CAGE

bearing, bull pinion shaft, L.H. cpte., w/OIL SEAL 703908R92

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

bull pinion bearing cage roll pin

5шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

roll pin

1шт.

3071404R1

PIN

roll

1шт.

3071406R1

WASHER

roll pin bolt

1шт.

3070558R1

WASHER

bull pinion shaft bearing cage

5шт.

2

3071410R2

SHIM

bull pinion bearing cage (Light) As required

1шт.

2

3071409R2

SHIM

bull pinion bearing cage (Medium) As required

1шт.

2

3071408R2

SHIM

bull pinion bearing cage (Heavy) As required

1шт.

2

3071411R2

SHIM

bull pinion bearing cage (Extra Heavy) As required

1шт.

3

703908R92

OIL SEAL

bull pinion shaft Opt.

2шт.

3

3043788R91

SEAL

OIL SEAL, bull pinion shaft Opt.

2шт.

4

3049082R91

BALL BEARING

ball, bull pinion shaft Opt.

2шт.

4

3063502R91

BALL BEARING

BEARING, ball, bull pinion shaft Opt.

2шт.

4

3063503R91

BALL BEARING

BEARING, ball, bull pinion shaft Opt.

2шт.

4

3114944R91

BALL BEARING

BEARING, ball, bull pinion shaft Opt.

2шт.

5

3069954R1

SHAFT

brake L.H. and bull pinion (13 teeth)

1шт.

6

3044002R91

BEARING

roller, differential (Timken) Optional

2шт.

6

3049255R91

BEARING

roller, differential (SKF) Optional

2шт.

7

705551R1

LOCK WASHER

PLATE, lock

4шт.

8

CASE, differential (Order, $ 3043998R91)

1шт.

9

704215R1

GEAR

bevel, differential (24 teeth)

2шт.

10

704707R1

AXLE DIFFERENTIAL

SHAFT, differential

4шт.

11

3109649R1

GEAR

PINION, differential (13 teeth)

4шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

4шт.

12

GEAR, bevel, drive (order, $ 3069966R91)

1шт.

3042127R1

BOLT,Hex, 7/16" - 20 x 1 1/8"

retaining, drive bevel gear

12шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

12шт.

13

3069955R1

SHAFT

brake, R.H. and bull pinion (13 teeth)

1шт.

14

3071402R11

CAGE

bearing, bull pinion shaft R.H. cpte., w/OIL SEAL 703908R92

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

bull pinion shaft bearing cage

1шт.

roll pin

5шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

roll pin

1шт.

3071404R1

PIN

roll

1шт.

3071406R1

WASHER

roll pin bolt

1шт.

3070558R1

WASHER

bull pinion shaft bearing cage

1шт.

15

3043998R91

DIFFERENTIAL

CASE, differential cpte., (two halves)

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

8шт.
