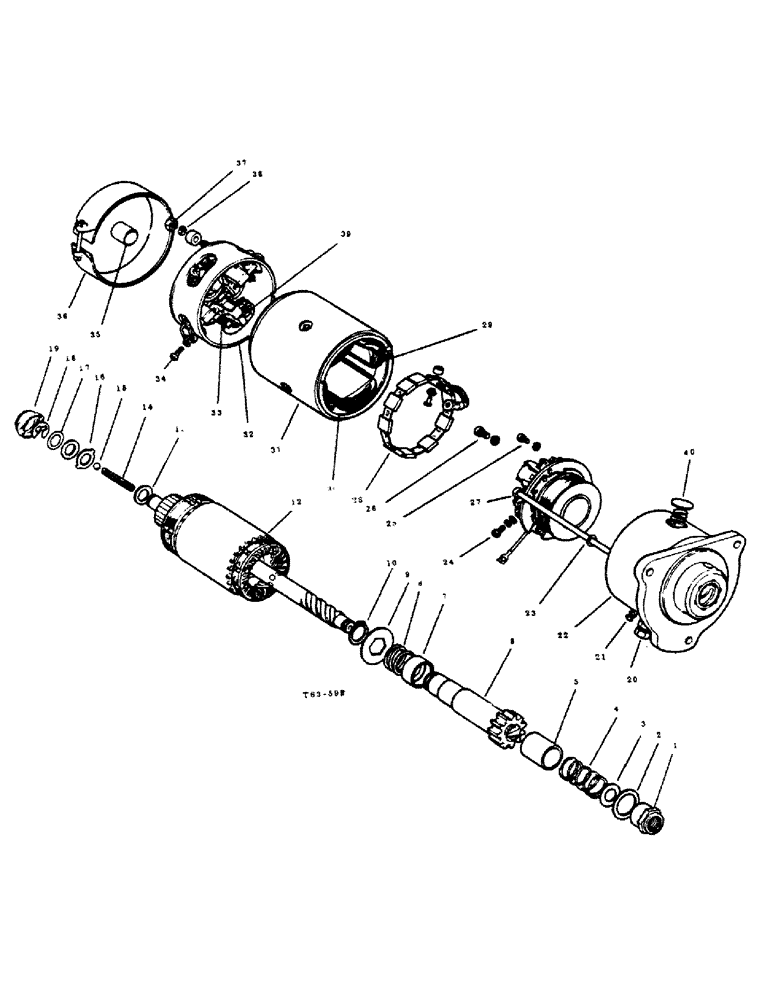

Запчасти Case IH 2350 (6-62) - STARTER MOTOR, COLD STARTING ATTACHMENT (04) - ELECTRICAL SYSTEMS

3066553R92

STARTER MOTOR

MOTOR, starter assy (CA45F12-Y51)

1шт.

1

3067832R1

NUT

pinion stop

1шт.

2

3070428R1

THRUST WASHER

thrust

1шт.

3

3070427R1

WASHER

shim

1шт.

4

3067841R1

SPRING

pinion

1шт.

5

3067830R1

COVER

spring

1шт.

6

3112476R1

GEAR

PINION

1шт.

7

3112475R1

COLLAR

locking

1шт.

8

3112474R1

SPRING

locking

1шт.

9

3070425R1

COLLAR

trip

1шт.

10

3070424R1

RETAINER

CIRCLIP, trip collar

1шт.

11

3073423R1

BALL, steel

8шт.

12

3067828R91

ARMATURE

1шт.

13

3045168R1

WASHER

SHIM, (.008) (As required)

1шт.

13

3045206R1

WASHER

SHIM, (.012)

1шт.

14

3045201R1

SPRING

shaft

1шт.

15

3045202R1

BALL

steel

1шт.

16

3045203R1

WASHER

thrust and starter motor w/o bayonet cap used w/bearing 3065977R1 DISCARD WHEN BEARING 3105005R1 IS FITTED

1шт.

17

3045204R1

WASHER

thrust (.036) (As required)

1шт.

18

3074977R1

RETAINER

CLIP, retaining

1шт.

19

3074975R1

CAP, end assy

1шт.

3074976R1

PAD

1шт.

27

3070412R91

SWITCH

SOLENOID ASSY

1шт.

28

3070408R1

RESISTOR

1шт.

3064973R1

BUSHING

BUSH

1шт.

3070411R1

RIVET

1шт.

3047225R1

SPACER

1шт.

29

3067824R91

COIL

S, set field

1шт.

30

3064979R1

INSULATOR

small

4шт.

30

3067825R1

INSULATOR

large

4шт.

31

706425R1

POST

SCREW, pole

4шт.

32

3067823R92

SHIELD

assy C.E. w/bearing 3105005R1 and 4 spring 3045208R1

1шт.

33

3045208R1

SPRING

bush

4шт.

34

702557R1

SCREW

bush

4шт.

706891R1

SPRING WASHER

spring

4шт.

35

3105005R1

BUSHING

BEARING, f/starter motor w/bayonet cap

1шт.

3065977R1

BEARING

f/starter motor w/o bayonet cap (Order 3105005R1)

1шт.

36

3045171R91

COVER

w/screw 3070429R1 and nut 3070430R1 assy band

1шт.

3070429R1

SCREW

cover

1шт.

3070430R1

NUT, screw cover

1шт.

37

3045187R1

NUT

terminal (As required)

1шт.

3064972R1

SPACER

C.E. shield terminal

1шт.

38

706423R1

WASHER

terminal spring (As required)

1шт.

39

3068411R91

SET

BRUSH, set

1шт.

40

3070416R1

PLUG

core

2шт.

41

3112479R91

X

"SET, segment"

1шт.

3112480R1

SPRING

" SPRING, segment"

1шт.
