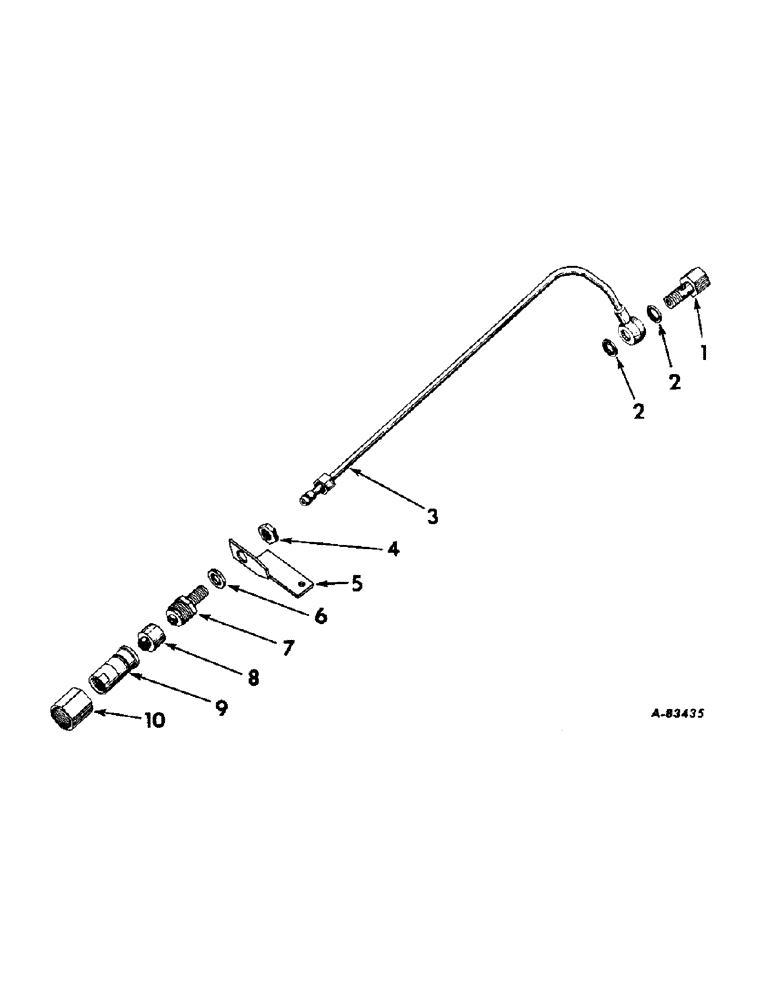

Запчасти Case IH B414 (125) - HYDRAULIC SYSTEM, SELF-SEALING COUPLING ATTACHMENT (07) - HYDRAULIC SYSTEM

3048413R92

COUPLING

ATTACHMENT, SELF-SEALING COUPLING

1шт.

1

705512R1

BOLT,1/2"-14 x 1 5/8"

SELF-SEALING COUPLING

1шт.

2

704337R1

SEALING WASHER

1/2 BSP DOWTY

2шт.

3

3048414R91

PIPE

ASSEMBLY, SELF-SEALING COUPLING

1шт.

4

752448R1

NUT

1/2 BSP LOCK

1шт.

5

3065076R11

SUPPORT

SELF-SEALING COUPLING

1шт.

NLS

NO LONGER SERVICED

1шт.

6

NOT USED

1шт.

7

3041962R91

COUPLING, BREAK AWAY

COUPLING, SELF-SEALING (OPTIONAL WITH 705579R91) (COMPOSED OF

1шт.

3045134R91

SLEEVE

1шт.

3045135R1

RING

O-RING

1шт.

3045136R1

SLEEVE

1шт.

3045137R1

SPRING

)

1шт.

7

705579R91

COUPLING

SELF-SEALING, DOWTY, MALE HALF (OPTIONAL W/3041962R91) (COMPOSED OF

1шт.

3045140R1

RING

1шт.

3045138R1

SPRING, LOCKING

1шт.

3045139R1

SPRING, VALVE

1шт.

VALVE (NSS)

1шт.

SLEEVE (NSS)

1шт.

8

3041963R1

CAP

COUPLING DUST

1шт.

9

353218R11

COUPLING, SELF-SEALING FEMALE HALF, NOT PART OF SELF-SEALING COUPLING ATTACHMENT 3048413R92 HYDRAULIC LIFT ATTACHMENT, DRAFT CONTROL

1шт.

10

357965R2

NUT

SELF-SEALING COUPLING UNION, NOT PART OF SELF-SEALING COUPLING ATTACHMENT 3048413R92 HYDRAULIC LIFT ATTACHMENT, DRAFT CONTROL

1шт.

3044363R91

ATTACHMENT, HYD LIFT (COMPOSED OF THE FOLLOWING UNITS CONTROL VALVE LIFT ARMS AND ROCKSHAFT LIFT HOUSING AND CONNECTIONS LIFT LEVERS AND CONNECTIONS PUMP, SUCTION AND PRESSURE PIPES)

1шт.
