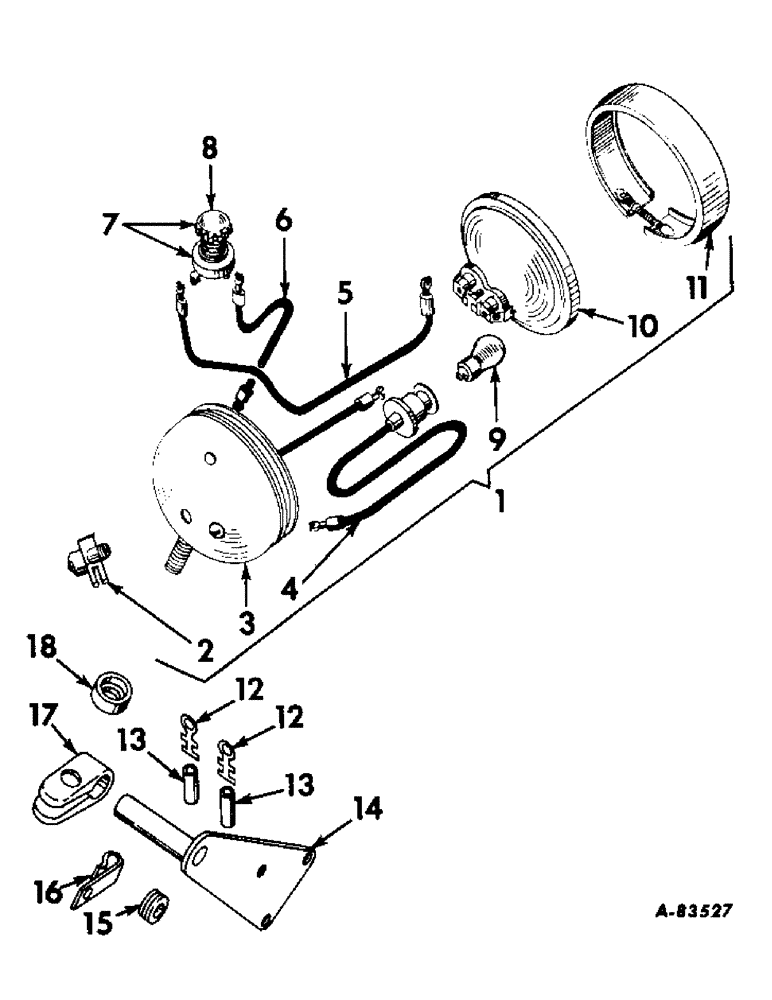

Запчасти Case IH B414 (075) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

1

373306R91

LIGHT

COMBINATION REAR LIGHT AND TAIL LIGHT ASSEMBLY, 12 VOLT

1шт.

2

365664R91

ELEC CONNECTOR

CLIP ASSEMBLY, TERMINAL BLOCK AND SPRING

1шт.

3

BODY, LIGHT, NOT SERVICED SEPARATELY, ORDER LIGHT ASSEMBLY

1шт.

4

373310R91

WIRE ASSY, TAIL LIGHT SOCKET TO SWITCH

1шт.

5

373311R91

WIRE ASSY, SWITCH TO SEALED BEAM UNIT

1шт.

6

373311R91

WIRE ASSY, SWITCH TO TERMINAL BLOCK

1шт.

7

373308R91

LIGHT SWITCH

SWITCH ASSEMBLY, LIGHT

1шт.

8

373309R1

KNOB

LIGHT SWITCH

1шт.

9

455490

BULB,C-6, #1003, 12V, .94W

LAMP, NO. 1003, 12 VOLT

1шт.

10

371461R91

LENS

UNIT ASSEMBLY, SEALED BEAM, 12 VOLT

1шт.

11

371450R91

BEZEL

MOLDING ASSEMBLY

1шт.

365697R1

NUT, 8-32 HEX.

1шт.

102637

NUT,1/2"-13, G5

1шт.

132489

SCREW, 8-32 x 1-1/4 SLT-FIL-HD

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

12

200006

SPARE PART

TERMINAL, CABLE, TYPE B

2шт.

13

28499H

SLEEVE, CABLE INSULATION

2шт.

14

378159R11

BRACKET ASSEMBLY, COMBINATION REAR AND TAIL LIGHT

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

363846R1

GROMMET

REAR LIGHT CABLE, IN LH FENDER

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, REAR LIGHT CABLE

1шт.

17

365503R1

SPACER

REAR LIGHT

1шт.

18

350920R1

CLAMP

REAR LIGHT

1шт.
