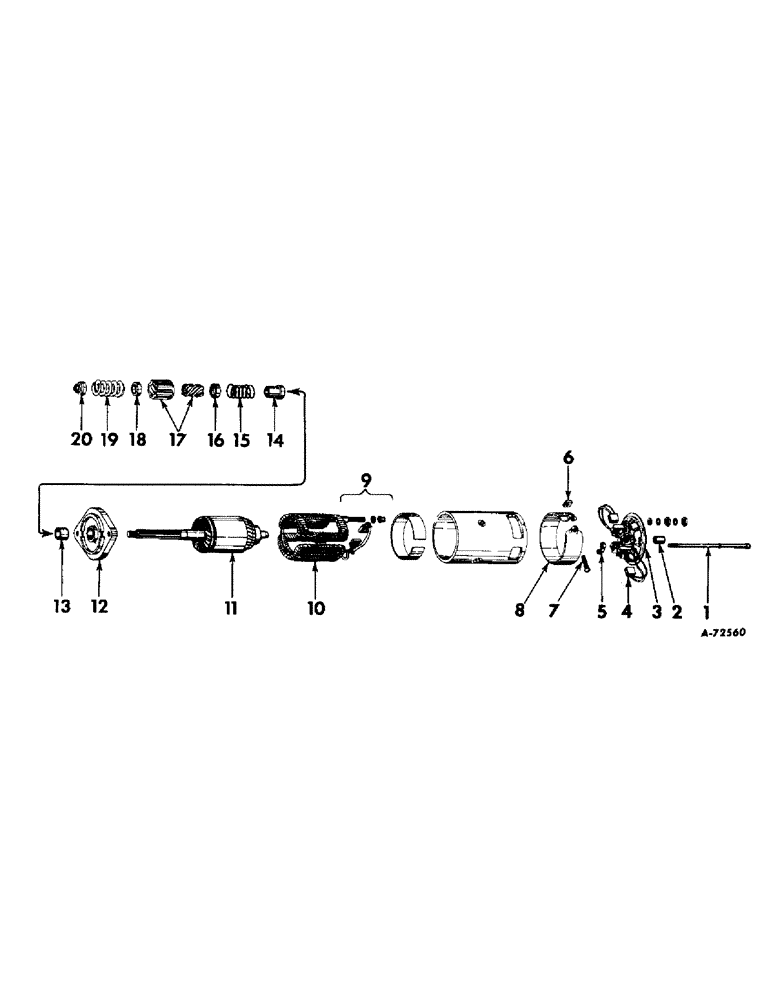

Запчасти Case IH B414 (067) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

3045322R91

STARTER MOTOR

MOTOR ASSY, CRANKING, 12 VOLT

1шт.

102635

NUT,3/8"-16, G5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 HEX-HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

1

3047182R1

BOLT

THROUGH FIXING

2шт.

2

702006R1

BUSHING

COMMUTATOR END

1шт.

3

3047108R91

FRAME ASSY, COMMUTATOR END

1шт.

4

700452R91

BRUSH, COMMUTATOR

BRUSH SET

1шт.

5

700453R91

SPRING

SET, BRUSH TENSION

1шт.

6

705832R1

NUT

COVER FIXING

1шт.

7

705831R1

SCREW, COVER FIXING

1шт.

8

3047106R1

BAND, COVER

1шт.

9

3047181R1

TERMINAL CONNECTOR

TERMINAL, FIELD

1шт.

10

3047116R91

COIL SET, FIELD

1шт.

11

3047115R91

ARMATURE ASSY

1шт.

3047107R1

CAP, SHAFT

1шт.

12

3047113R1

BRACKET

FRAME, DRIVING END

1шт.

13

3047114R1

BUSHING

BEARING

1шт.

14

3047110R1

GUIDE

SPRING RETAINING

1шт.

15

700457R1

SPRING

PINION RETAINING

1шт.

16

3047111R1

CUP

SPRING RETAINING

1шт.

17

700456R91

GEAR

PINION AND SLEEVE ASSY

1шт.

18

3047112R1

WASHER

BUFFER

1шт.

19

700455R1

SPRING

MAIN

1шт.

20

3047109R1

NUT

SHAFT

1шт.

702010R91

SUNDRY PARTS SET

1шт.
