(059) - ELECTRICAL SYSTEM, DISTRIBUTOR, UP TO B-414 GASOLINE/5885

Запчасти Case IH B414 (059) - ELECTRICAL SYSTEM, DISTRIBUTOR, UP TO B-414 GASOLINE/5885 (06) - ELECTRICAL SYSTEMS

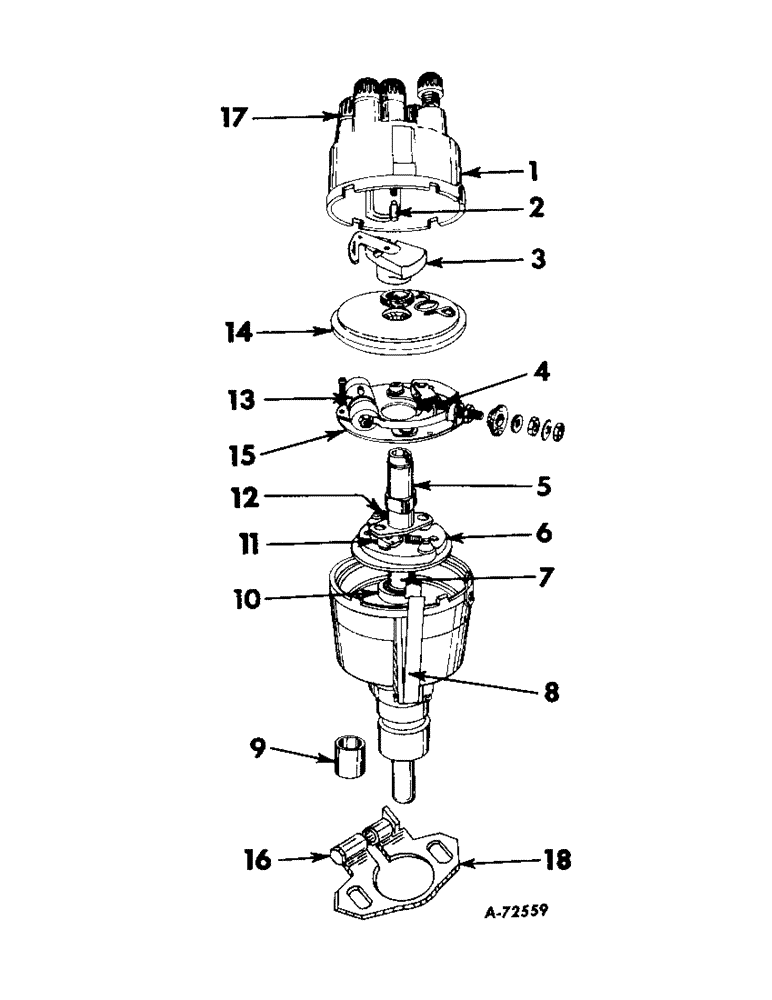

Схема запчастей Case IH B414 - (059) - ELECTRICAL SYSTEM, DISTRIBUTOR, UP TO B-414 GASOLINE/5885 (06) - ELECTRICAL SYSTEMS
18
17
11
5
5
15
9
12
3
7
8
4
13
1
16
14
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3044213R91

DISTRIBUTOR

ASSY

1шт.

1

3047513R1

CAP

DISTRIBUTOR

1шт.

2

702306R91

BRUSH, COMMUTATOR

SET, BRUSH AND SPRING

1шт.

3

3047514R1

ROTOR

DISTRIBUTOR

1шт.

4

702326R91

SET

POINT SET, DISTRIBUTOR

1шт.

5

3047523R1

CAM, DISTRIBUTOR

1шт.

6

3047525R91

WEIGHT ASSY

1шт.

7

3047526R1

PLATE, SHAFT AND ACTION

1шт.

8

3047528R1

CLIP, RETAINING COVER

1шт.

9

702333R1

BUSHING, BOTTOM

1шт.

10

3047527R1

BEARING

TOP

1шт.

11

702330R1

TOGGLES

2шт.

12

3047524R91

SPRING, AUTO-ADVANCE, SET OF TWO

1шт.

13

702325R91

CONDENSER

1шт.

14

3047515R1

COVER, DUST EXCLUDER

1шт.

15

3047516R1

BASE, CONTACT BREAKER

1шт.

16

3047511R91

SCREW AND NUT ASSY

1шт.

17

3046363R1

NUT

CABLE SECURING, NOT INCLUDED IN DISTRIBUTOR ASSY

1шт.

3046364R1

WASHER

CABLE SECURING

1шт.

18

3047510R1

PLATE, SECURING

1шт.

3047518R1

CONNECTOR

1шт.

3047512R1

PAWL, DRIVING

1шт.

702335R91

SUNDRY PARTS SET

1шт.

3047519R1

TERMINAL, LOW TENSION

1шт.

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

BUSHING, INSULATING TERMINAL

1шт.

3047521R1

PLATE, INSULATING TERMINAL

1шт.

3047522R1

BUSHING, OUTSIDE INSULATING

1шт.
