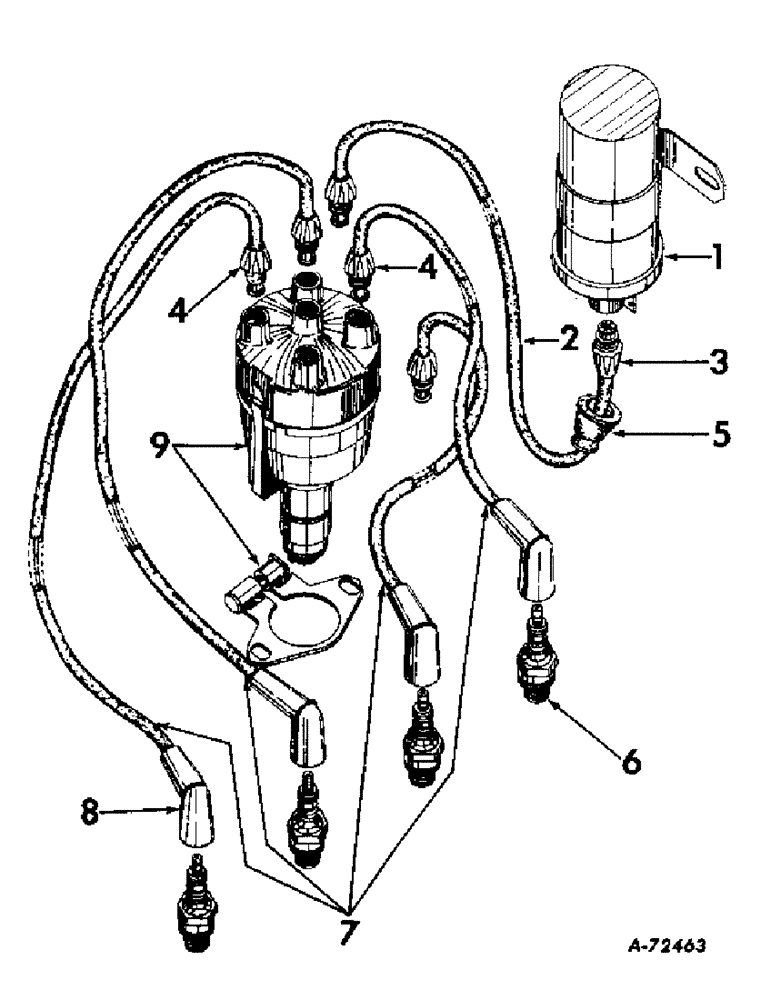

Запчасти Case IH B414 (058) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL CABLES AND CONNECTIONS, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

3063671R91

COIL

ASSY, IGNITION

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

3064017R91

CABLE

ASSY, IGNITION COIL TO DISTRIBUTOR

1шт.

3

3047607R1

NUT

COIL CABLE SECURING

1шт.

3046364R1

WASHER

COIL NUT

1шт.

4

3046363R1

NUT

CABLE SECURING

2шт.

3046364R1

WASHER

CABLE SECURING

5шт.

5

251553R1

BOOT

NIPPLE, TERMINAL

6шт.

6

3044229R91

SPARK PLUG

CHAMPION L-10-JA548

4шт.

7

3044219R93

CABLE

ASSY, SPARK PLUG, CONSISTS OF FOUR SPARK PLUG CABLES AND FOUR COVERS, 3061208R91

1шт.

8

3061208R91

COVER, SPARK PLUG

4шт.

9

3044213R91

DISTRIBUTOR

ASSY, UP TO SERIAL NO. 5885, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF DISTRIBUTOR

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 HEX-HD CAP

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 GA

2шт.
