(039) - FUEL SYSTEM, FUEL PIPES, CARBURETED ENGINE TRACTORS

Запчасти Case IH B414 (039) - FUEL SYSTEM, FUEL PIPES, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM

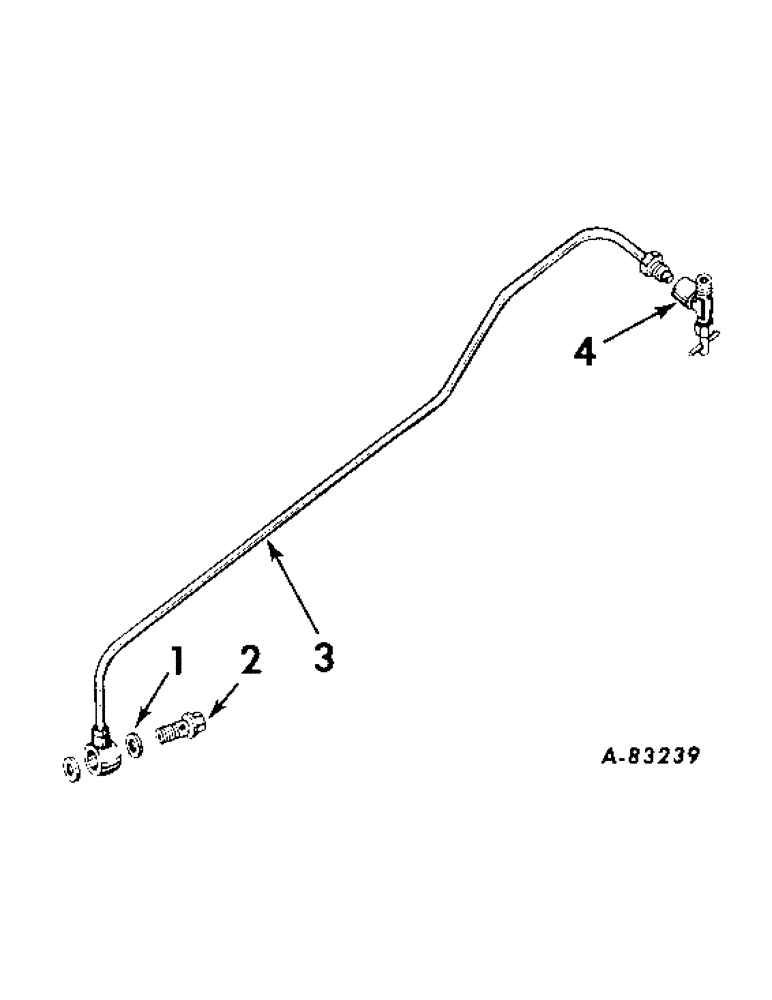

Схема запчастей Case IH B414 - (039) - FUEL SYSTEM, FUEL PIPES, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

708297R1

GASKET

WASHER, BANJO BOLT

2шт.

2

708296R1

CONNECTOR, ELEC

BOLT, BANJO

1шт.

3

3046898R91

PIPE CLAMP

PIPE ASSY, FUEL TAP TO PUMP

1шт.

4

3045327R91

VALVE

NEEDLE FUEL TANK

1шт.

118748

CONNECTOR, ELEC

CONNECTOR, FLARED TUBE

1шт.
