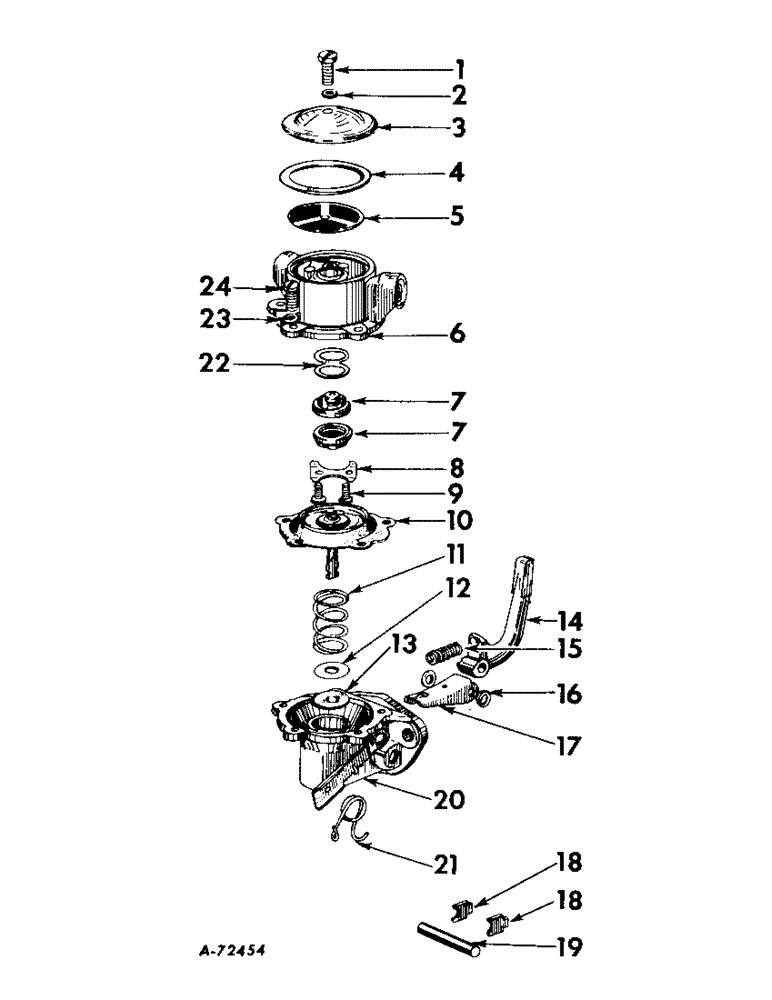

Запчасти Case IH B414 (033) - FUEL SYSTEM, FUEL PUMP, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM

3044197R91

FUEL PUMP

PUMP ASSY, FUEL, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF FUEL PUMP

1шт.

1

702953R1

SCREW

HEAD

1шт.

2

3044511R1

GASKET

HEAD

1шт.

3

3044512R1

COVER

FILTER

1шт.

4

3044518R1

GASKET

FILTER

1шт.

5

3044513R1

FILTER SCREEN

SCREEN, FILTER

1шт.

6

3044514R1

COVER

1шт.

7

702959R91

VALVE

ASSY

2шт.

8

702960R1

RETAINER

PLATE, VALVE RETAINING

1шт.

9

702961R1

SCREW

VALVE RETAINING

2шт.

10

708953R91

DIAPHRAGM

ASSY

1шт.

11

3047235R1

SPRING, DIAPHRAGM

1шт.

12

708958R1

WASHER

OIL SEAL, METAL

1шт.

13

708959R1

WASHER

OIL SEAL, FABRIC

1шт.

14

3044517R1

ARM

ROCKER

1шт.

15

708956R1

SPRING

ROCKER ARM

1шт.

16

708957R1

WASHER

ROCKER ARM PIN

2шт.

17

708963R1

LINK

1шт.

18

3062570R1

RETAINER

ROCKER ARM PIN

2шт.

19

3044515R1

PIN

ROCKER ARM

1шт.

20

3044519R91

COVER ASSY

BODY AND HAND ASSY, PRIMER

1шт.

21

3044520R1

SPRING

PRIMING LEVER

1шт.

22

702958R1

GASKET

VALVE

1шт.

23

114648

WASHER, COVER SCREW

5шт.

24

132117

CLAMP

SCREW, NO. 10-32 x 1/2 SLT-FIL-HD PARKERIZED, COVER

5шт.

3044458R91

SPRING

SET, PRIMER PARTS, AS REQUIRED

1шт.

3046381R91

REPAIR KIT

KIT, REPAIR, LESS ROCKER ARM, AS REQUIRED

1шт.

3046382R91

PACKAGE

KIT, DIAPHRAGM FIRST AID REPAIR

1шт.
