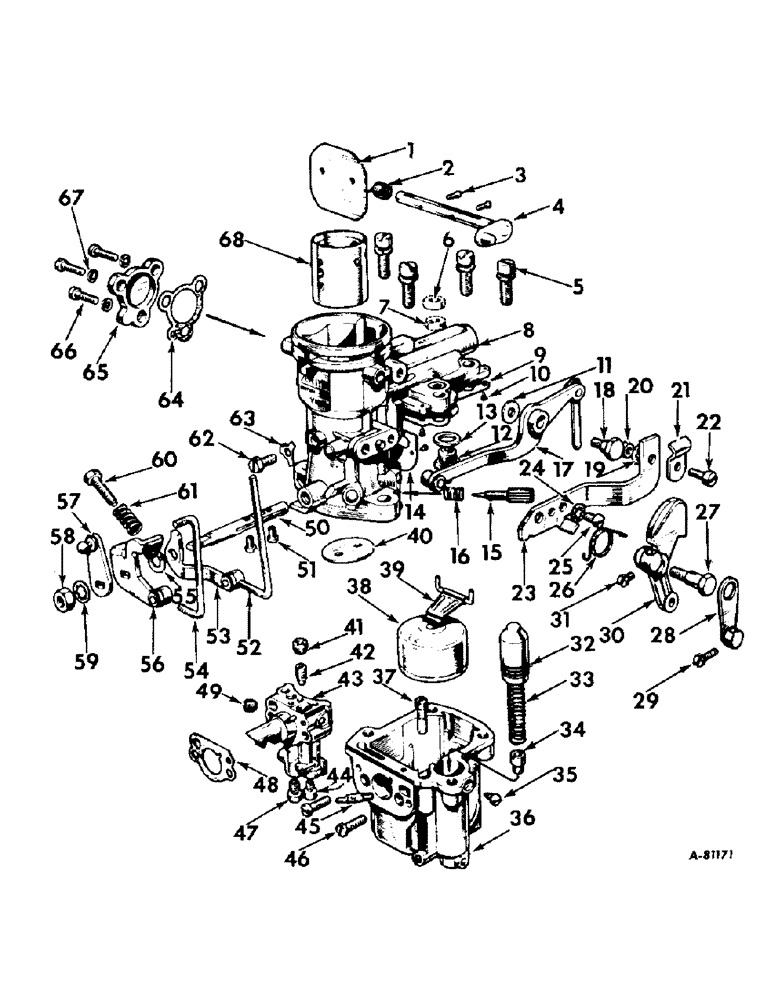

Запчасти Case IH B414 (032) - FUEL SYSTEM, CARBURETOR, BC-144/3525 UP (02) - FUEL SYSTEM

3063945R91

CARBURETOR

ASSY

1шт.

1

3047486R1

FLAP, STRANGLER

1шт.

2

3047485R1

SPRING

AUTOMATICITY

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

3

700659R1

SCREW

STRANGLER FLAP

2шт.

4

3047483R91

LEVER

AND SPINDLE

1шт.

3047484R1

WASHER

1шт.

5

3047465R91

SCREW

W/WASHER, FIXING BOWL TO BARREL

4шт.

6

3065056R1

RETAINER

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

7

3065055R1

WASHER

FELT

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

8

3065060R91

BARREL ASSY, CARBURETOR

1шт.

9

3065054R1

GASKET

FLOAT CHAMBER COVER

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

10

3047467R1

SCREW, PARKER

6шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

11

3065062R1

WASHER, PUMP PIVOT SCREW

1шт.

12

3047508R91

SEAT

ING, NEEDLE

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

13

3047462R1

WASHER

NEEDLE SEATING

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

14

3047468R1

GASKET

VERTICAL BOWL FACE

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

15

3047499R1

SCREW

VOLUME CONTROL

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

16

3047500R1

SPRING

VOLUME CONTROL

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

17

3065059R91

LEVER W/ROD ASSY, PUMP

1шт.

18

3065061R1

SCREW

PUMP PIVOT

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

19

3047490R1

WASHER, SHAKEPROOF

1шт.

20

3047489R1

NUT

1шт.

21

3047487R1

CLIP

1шт.

22

3047488R1

SCREW

1шт.

23

3047491R91

BRACKET ASSY, STRANGLER CONTROL

1шт.

24

3047490R1

WASHER, SHAKEPROOF

1шт.

25

3047492R1

SCREW, STRANGLER CONTROL BRACKET

1шт.

26

3047494R1

SPRING

STRANGLER CONTROL LEVER

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

27

3047495R1

SCREW

STRANGLER CENTRAL LEVER PIVOT

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

28

3047498R91

LINK ASSY, STRANGLER CONTROL

1шт.

29

3047497R1

SCREW, SWIVEL

1шт.

30

3047493R91

LEVER

ASSY, STRANGLER CONTROL

1шт.

31

3047496R1

SCREW, INTERCONNECTION SWIVEL

1шт.

32

3065050R1

PISTON

PUMP, PISTON

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

33

3065051R1

SPRING

PUMP, PISTON SPRING

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

34

3065049R1

VALVE

PUMP, VALVE CHECK

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

35

3065052R1

SCREW, PISTON RETAINING

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

36

3065048R1

BOWL, CARBURETOR

1шт.

37

3065053R1

VALVE

PUMP DISCHARGE

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

38

3047463R91

FLOAT

1шт.

39

3047464R91

ARM

FLOAT ARM AND PIVOT

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

40

3047478R1

THROTTLE

1шт.

41

3047507R1

PLUG

OVER SLOW RUNNING JET, SIZE 50

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

42

3047506R1

JET

SLOW RUNNING, SIZE 50

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

43

3047506R1

JET

BLOCK, EMULSION

1шт.

44

3047469R1

JET, COMPENSATING, SIZE 50

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

45

3065067R1

JET

PUMP, JET

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

46

3047461R1

SCREW, EMULSION BLOCK FIXING

2шт.

47

708396R1

JET

MAIN, SIZE 92

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

48

3047460R1

GASKET

EMULSION BLOCK

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

49

3047505R1

SCREW

VENTILATING, SIZE 2.6

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

50

3047470R1

SPINDLE

THROTTLE

1шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

51

3047479R1

SCREW

THROTTLE

2шт.

Part of carburetor overhaul package P/N 3070406R91

1шт.

52

3047476R1

ROD, INTERCONNECTION

1шт.

53

3047475R91

LEVER ASSY, FLOATING

1шт.

54

3065058R1

LINK

PUMP, LINK

1шт.

55

3047477R1

WASHER, THROTTLE SPINDLE

1шт.

56

3065057R1

STOP

THROTTLE

1шт.

57

3047472R91

LEVER ASSY, THROTTLE

1шт.

58

3047473R1

NUT

1шт.

59

3047474R1

WASHER, SHAKEPROOF

1шт.

60

3047480R1

SCREW, THROTTLE STOP

1шт.

61

700632R1

SPRING

THROTTLE STOP SCREW

1шт.

62

3047482R1

SCREW, FIXING CHOKE TUBE

1шт.

63

3047481R1

WASHER, TAB

1шт.

64

3065063R1

GASKET

PLATE

1шт.

Part of carburetor gasket package P/N 3070405R91

1шт.

65

3065065R1

PLATE, ECONOMY BLANKING

1шт.

66

3065065R1

SCREW

3шт.

67

3065066R1

WASHER, SPRING

3шт.

68

3048467R1

TUBE, CHOKE, SIZE 24

1шт.

69

3070405R91

PACKAGE

CARBURETOR GASKET, CONSISTS OF REF. NOS. 6, 7, 9, 10, 13, 14, 48, 64 AND WASHER, 3047484R1

1шт.

3070406R91

KIT

PACKAGE, CARBURETOR OVERHAUL, CONSISTS OF REF. NOS. 2, 12, 15, 16, 18, 26, 27, 32 - 35, 37, 39, 41, 42, 44, 45, 47, 49, 50 AND 51

1шт.
