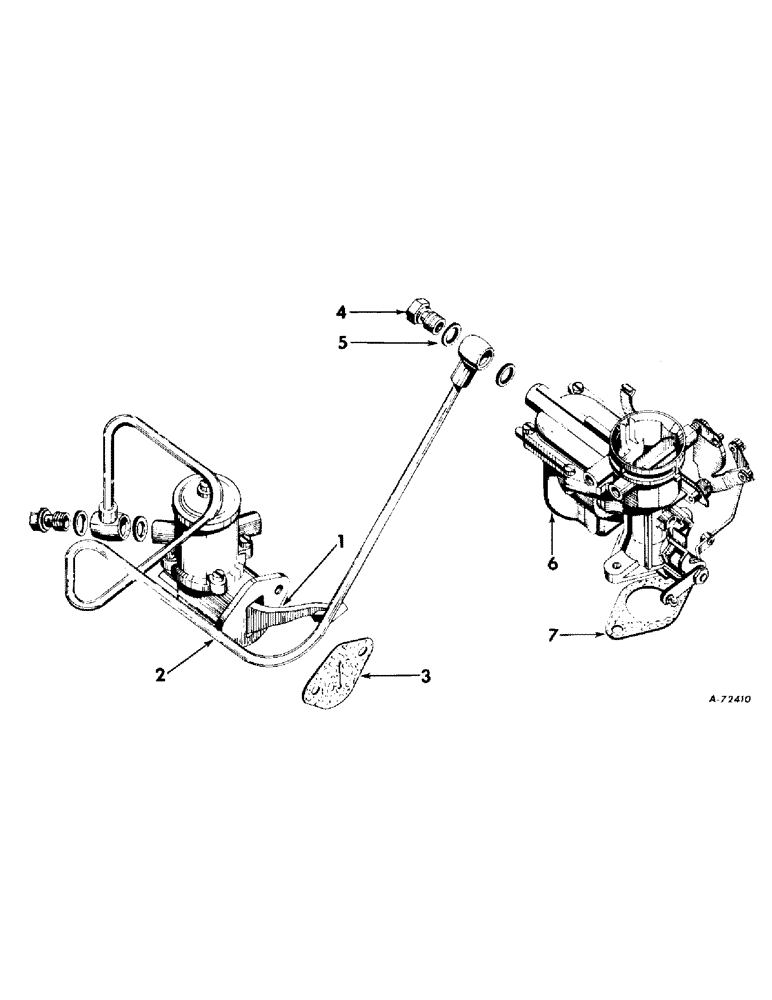

Запчасти Case IH B414 (029) - FUEL SYSTEM, CARBURETOR, FUEL PUMP AND PIPES, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM

1

3044197R91

FUEL PUMP

PUMP ASSY, FUEL, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF FUEL PUMP

1шт.

3063872R1

BOLT

SCREW, FUEL PUMP

2шт.

2

3044198R93

PIPE ASSY, PUMP TO CARBURETOR FUEL

1шт.

3

3043370R1

GASKET

FUEL PUMP

1шт.

3

3061658R1

GASKET

FUEL PUMP, USED IN CONJUNCTION WITH GASKET, 3043370R1

1шт.

4

708296R1

CONNECTOR, ELEC

BOLT, BANJO

2шт.

5

708297R1

GASKET

WASHER, BANJO, INLET AND OUTLET

4шт.

6

3063945R91

CARBURETOR

ASSY, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CARBURETOR

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 HEX

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3047295R91

GASKET

CARBURETOR

1шт.
