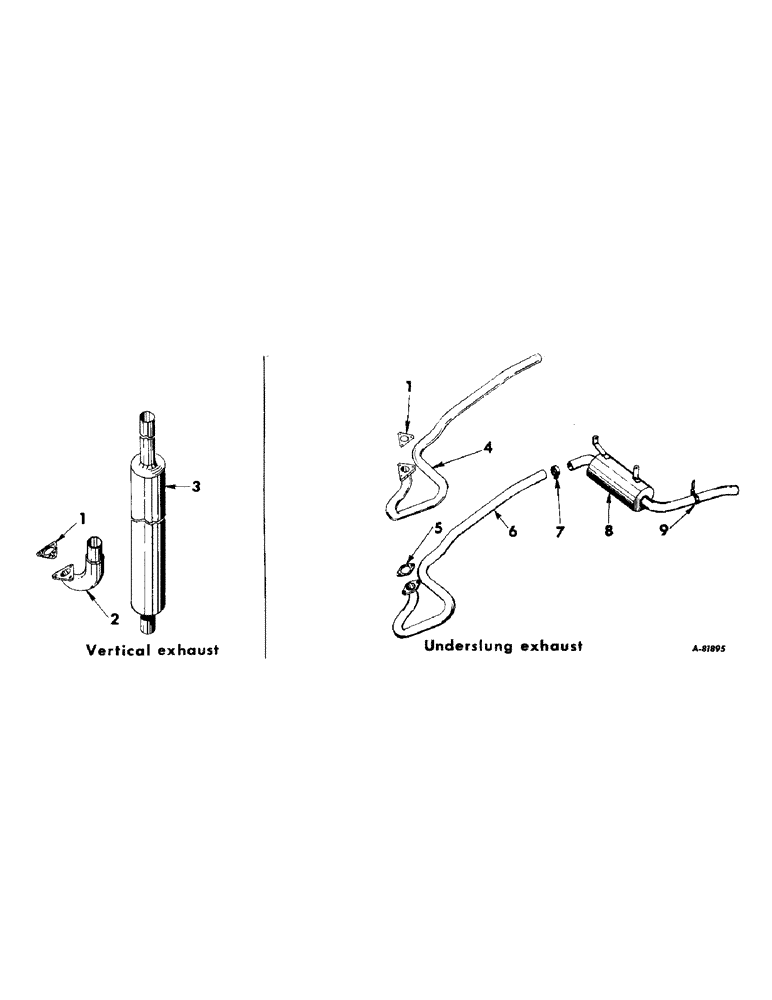

Запчасти Case IH B414 (019) - CARBURETED ENGINE, EXHAUST SYSTEM, VERTICAL EXHAUST, UNDERSLUNG EXHAUST (01) - ENGINE

1

3060566R1

GASKET

EXHAUST PIPE FLANGE, Start Serial: BC-144/2001

1шт.

2

3060565R1

PIPE ASSY.

PIPE, EXHAUST, Start Serial: BC-144/2001

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 HEX-HD CAP

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

3046362R92

MUFFLER

EXHAUST, Start Serial: BC-144/2001

1шт.

4

3060567R92

EXHAUST SYSTEM PIPE

PIPE ASSY, EXHAUST, Start Serial: BC-144/2001

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

704613R1

GASKET

EXHAUST PIPE FLANGE, Serial Range: -BC-144/2000

1шт.

6

3045285R93

EXHAUST SYSTEM PIPE

PIPE ASSY, EXHAUST, Serial Range: -BC-144/2000

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

704621R1

CLAMP

EXHAUST PIPE

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

3047572R92

MUFFLER

ASSY, EXHAUST

1шт.

NLS

NO LONGER SERVICED

2шт.

9

705449R1

CLAMP

MUFFLER OUTLET PIPE SUPPORT

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
