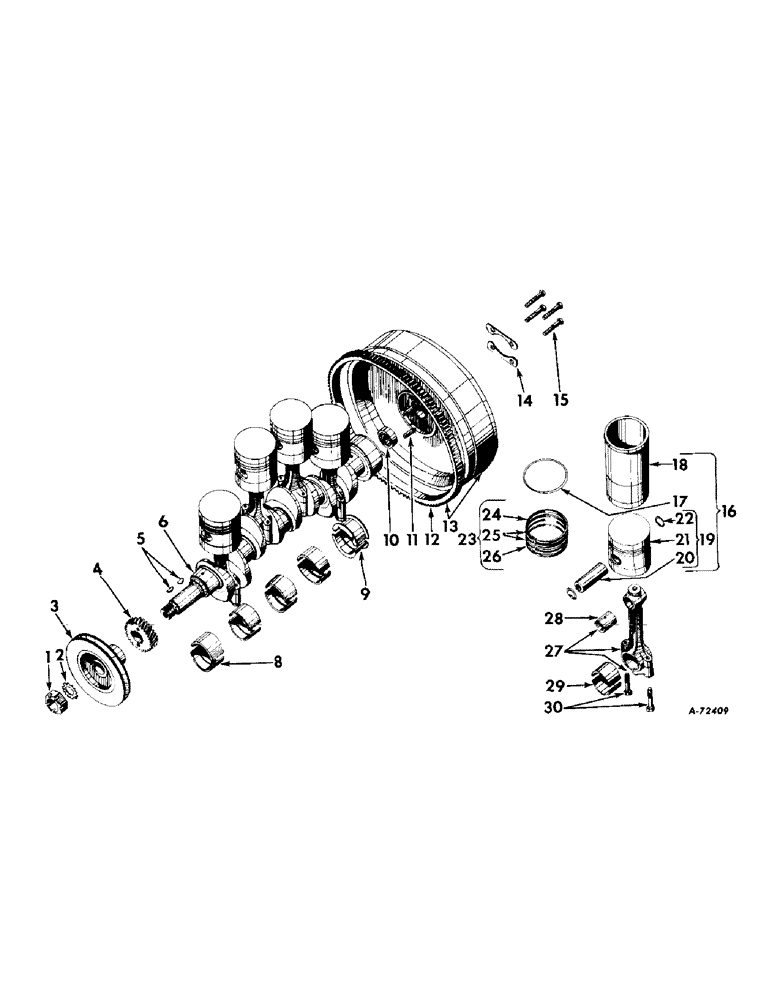

Запчасти Case IH B414 (017) - CARBURETED ENGINE, CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTON (01) - ENGINE

1

272620

RING

1-14 HEX. TYPE LLJ LOCK, FAN DRIVE PULLEY

1шт.

2

NOT USED

1шт.

3

3048133R2

PULLEY

FAN DRIVE

1шт.

4

703865R1

GEAR

PINION, CRANKSHAFT, 33 TEETH

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 WOODRUFF 91, CRANKSHAFT PINION

2шт.

6

384599R91

PACKAGE

CRANKSHAFT ASSY, STANDARD, COMPOSED OF

1шт.

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING

1шт.

3064523R11

CRANKSHAFT BEARING

BEARING ASSY

4шт.

708910R91

BEARING ASSY

1шт.

710768R91

BEARING SET

1шт.

751303R5

CRANKSHAFT (NSS)

1шт.

24550D

PIN

2шт.

6

384600R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, UNDERSIZE, CONSISTS OF FOUR CONNECTING ROD BEARINGS, FIVE CRANKSHAFT BEARINGS AND CRANKSHAFT

1шт.

7

NOT USED

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING ASSY, CRANKSHAFT FRONT AND CENTER, 2 HALVES, STANDARD

4шт.

8

3064524R11

BEARING LINER

BEARING ASSY, CRANKSHAFT FRONT AND CENTER, 2 HALVES, -.030 UNDERSIZE

4шт.

8

3064525R11

BEARING LINER

BEARING ASSY, CRANKSHAFT FRONT AND CENTER, 2 HALVES, .015 UNDERSIZE

4шт.

9

708910R91

BEARING ASSY

CRANKSHAFT REAR, 2 HALVES, STANDARD SIZE

1шт.

9

708911R91

BEARING ASSY

CRANKSHAFT REAR, 2 HALVES, .030 UNDERSIZE

1шт.

9

708915R91

BEARING ASSY

CRANKSHAFT REAR, 2 HALVES, .015 UNDERSIZE

1шт.

10

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, CLUTCH PILOT

1шт.

11

24550D

PIN

FLYWHEEL DOWEL

1шт.

12

3044171R1

GEAR

FLYWHEEL RING

1шт.

13

3045089R11

FLYWHEEL

W/GEAR, 3044171R1 ASSY, DUAL CLUTCH

1шт.

13

3047594R11

FLYWHEEL W/GEAR, 3044171R1 AND TWO PINS, 141223, SINGLE CLUTCH

1шт.

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 DOWEL

1шт.

14

3069118R1

LOCK ASSY

LOCK, FLYWHEEL BOLT

2шт.

15

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

FLYWHEEL

4шт.

16

3044201R92

SLEEVE CYLINDER

SLEEVE SET, CRANKCASE, CONSISTS OF FOUR SLEEVES, 3044202R92

1шт.

16

3044202R92

PISTON

SLEEVE W/PISTON ASSY, CYLINDER, COMPOSED OF

4шт.

3044203R93

PISTON

1шт.

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING

1шт.

704092R1

LINER, ENGINE CYLIND

SLEEVE

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, CYLINDER SLEEVE PACKING

4шт.

18

704092R1

LINER, ENGINE CYLIND

SLEEVE, CYLINDER

4шт.

19

3044203R93

PISTON

W/RINGS ASSY, COMPOSED OF

4шт.

704094R1

LARGE PIN

PIN

1шт.

3044207R3

PISTON

1шт.

704095R1

SNAP RING,M28, Int

RETAINER

2шт.

3044204R1

PISTON RING

RING

1шт.

3044205R1

PISTON RING

RING

2шт.

705993R1

RING

1шт.

20

704094R1

LARGE PIN

PIN, PISTON, STANDARD

4шт.

20

706411R1

PIN

PISTON, .005 OVERSIZE, AS REQUIRED

1шт.

21

3044207R3

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, PISTON PIN

8шт.

23

3044208R91

PACKAGE

RING SET, PISTON, CONSISTS OF

1шт.

3044204R1

PISTON RING

RING

4шт.

3044205R1

PISTON RING

RING

8шт.

705993R1

RING

4шт.

24

3044204R1

PISTON RING

RING, COMPRESSION PISTON, TOP GROOVE

4шт.

25

3044205R1

PISTON RING

RING, COMPRESSION PISTON, SECOND AND THIRD GROOVE

8шт.

26

705993R1

RING, OIL CONTROL PISTON, BOTTOM GROOVE

4шт.

27

704088R91

ROD, CONNECTING

ROD ASSY, CONNECTING, Serial Range: -BC-144/2723

4шт.

27

3061214R91

PITMAN ASSY.

ROD ASSY, CONNECTING, Start Serial: BC-144/2724

4шт.

28

3043611R1

BUSHING

PISTON PIN

4шт.

29

710768R91

BEARING SET

CONNECTING ROD, STD, CONSISTS OF FOUR BEARINGS, 710327R11

1шт.

29

715146R91

BEARING SET

CONNECTING ROD, .015 U/S, CONSISTS OF FOUR BEARINGS, 713660R11

1шт.

29

710769R91

BEARING ASSY

BEARING SET, CONNECTING ROD, .030 U/S, CONSISTS OF FOUR BEARINGS, 710737R11

1шт.

30

3043216R1

BOLT,3/8" - 24 x 2"

CONNECTING ROD

8шт.
