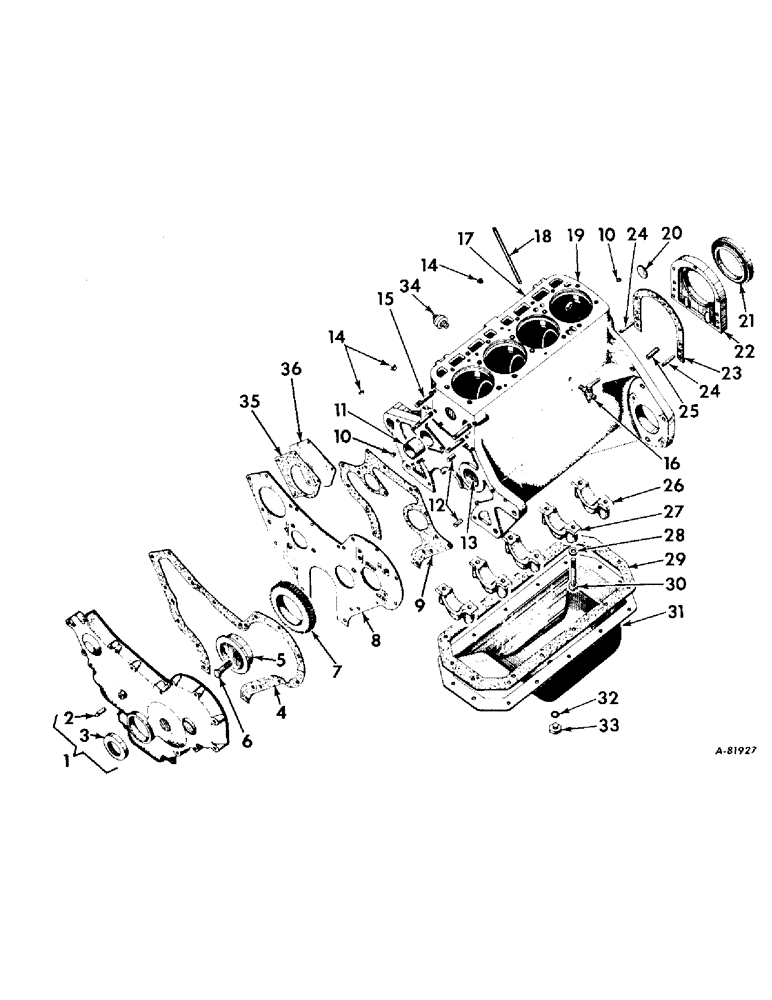

Запчасти Case IH B414 (015) - CARBURETED ENGINE, CRANKCASE, FRONT COVER AND OIL PAN (01) - ENGINE

1

3044166R92

COVER W/OIL SEAL, 703844R91 AND POINTER, 712064R1, CRANKCASE FRONT

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

4шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

2

712064R1

POINTER, TIMING

1шт.

3

703844R91

OIL RESERVOIR

SEAL, CRANKSHAFT FRONT OIL

1шт.

4

708285R1

GASKET

CRANKCASE FRONT COVER

1шт.

5

3044191R1

SHAFT, IDLER GEAR

1шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW, 1/2-13 x 1-7/8 HEX-HD CAP

1шт.

7

3044190R1

X

GEAR, IDLER

1шт.

8

3044164R91

PLATE W/THREE LOCKS, 46250D AND THREE RIVETS, 110638, CRANKCASE FRONT

1шт.

3047230R1

SCREW

CRANKCASE FRONT PLATE

2шт.

9

709903R1

GASKET

CRANKCASE FRONT PLATE

1шт.

10

444691

PLUG

1/4 SLOTTED HEADLESS PIPE

2шт.

11

703827R1

CAMSHAFT BEARING

BUSHING, CAMSHAFT FRONT

1шт.

11

703828R1

CAMSHAFT BEARING

BUSHING, CAMSHAFT CENTER

1шт.

11

703829R1

CAMSHAFT BEARING

BUSHING, CAMSHAFT REAR

1шт.

12

37-1616

DOWEL,3/8" x 1"

PIN, 3/8 x 1 DOWEL, CRANKSHAFT FRONT

2шт.

13

751610R1

INSERT

LOCK IDLER GEAR BOLT SCREW

1шт.

14

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

15

703832R1

STUD

WATER PUMP

4шт.

16

106794

VALVE

COCK, 1/4 TYPE A WATER DRAIN

1шт.

17

3044162R94

CRANKCASE

ASSY, COMPOSED OF

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

BUSHING

1шт.

703828R1

CAMSHAFT BEARING

BUSHING

1шт.

703829R1

CAMSHAFT BEARING

BUSHING

1шт.

703834R2

CAP (NSS)

4шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP (NSS)

1шт.

106794

VALVE

COCK

1шт.

3044163R3

CRANKCASE

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

14шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

37-1616

DOWEL,3/8" x 1"

PIN

2шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703832R1

STUD

4шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

18

751826R1

TUBE,0.375" OD, 5.75" Length

DIPSTICK

1шт.

19

751834R1

INSERT

7/16 HELI-COIL THREAD

14шт.

20

172578

PLUG,Exp, 1 3/4"

1-3/4 DIA TYPE 1 EXPANSION

1шт.

21

708903R91

HOLDER

SEAL, CRANKSHAFT REAR OIL

1шт.

22

708904R1

RETAINER

CRANKSHAFT REAR OIL SEAL

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

CRANKSHAFT REAR OIL SEAL RETAINER

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

23

708907R1

GASKET

CRANKSHAFT REAR OIL SEAL RETAINER

1шт.

24

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 DOWEL, CRANKSHAFT REAR OIL SEAL RETAINER

2шт.

25

141287

DOWEL,1/2" x 1 1/2"

PIN, 1/2 x 1-1/2 DOWEL

2шт.

26

CAP, CRANKSHAFT BEARING REAR, NOT SERVICED SEPARATELY, ORDER CRANKCASE ASSY, 3044162R94

1шт.

27

CAP, CRANKSHAFT BEARING, NOT SERVICED SEPARATELY, ORDER CRANKCASE ASSY, 3044162R94

1шт.

28

3061325R1

WASHER

CRANKSHAFT BEARING CAP BOLT

10шт.

29

703840R1

GASKET

CRANKCASE PAN

1шт.

30

3061211R1

BOLT,1/2" - 13 x 2.875"

CRANKSHAFT BEARING CAP

10шт.

31

704712R21

HOUSING

PAN ASSY, CRANKCASE OIL, Serial Range: -BC-144/5594

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

32

3405H

GASKET

CRANKCASE PAN DRAIN PLUG

1шт.

33

359875R1

PLUG

CRANKCASE PAN DRAIN

1шт.

34

3041100R91

PRESSURE SWITCH

SWITCH ASSY, OIL PRESSURE

1шт.

35

703851R1

GASKET

HYDRAULIC PUMP

1шт.

36

703850R1

COVER

HYD PUMP OPENING

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

272391

BEARING ASSY,Hex, 5/16" - 18 x 2 1/8", Gr 5

SCREW, 5/16-18 x 2-1/8 HEX-HD CAP

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

11/32 x 3/4 x 16 GA

1шт.
