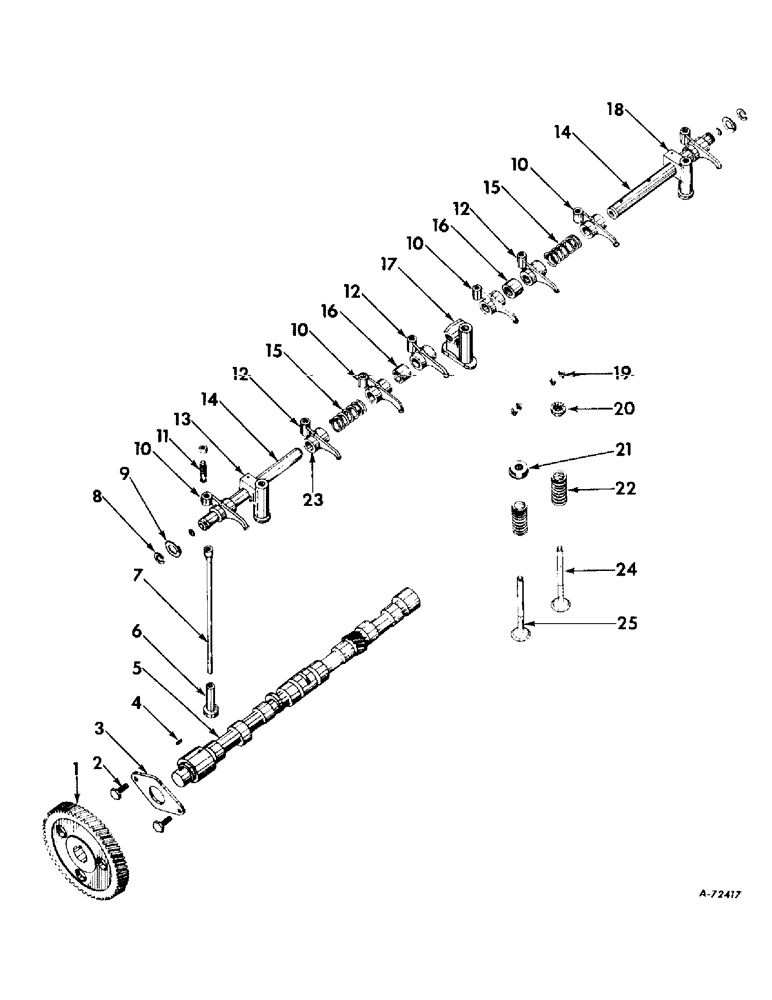

Запчасти Case IH B414 (013) - CARBURETED ENGINE, CAMSHAFT AND VALVE MECHANISM (01) - ENGINE

1

703812R1

GEAR

CAMSHAFT, 66 TEETH, Serial Range: -BC-144/3526

1шт.

1

3064085R1

PINION

GEAR, CAMSHAFT, 66 TEETH BC-144/3527 to

1шт.

2

26058D

SCREW

CAMSHAFT THRUST PLATE

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

43249D

PLATE

CAMSHAFT THRUST

1шт.

4

431787

WOODRUFF KEY,#61, 3/16" x 5/8", HT

KEY, 3/16 x 5/8 ALY-STL WOODRUFF 61, CAMSHAFT GEAR

1шт.

5

709450R1

CAMSHAFT

, Serial Range: -BC-144/3526

1шт.

5

3063934R1

CAMSHAFT

, Start Serial: BC-144/3527

1шт.

6

704782R1

TAPPET

VALVE

8шт.

7

3044192R1

ROD

VALVE PUSH

8шт.

8

43375D

RING

VALVE LEVER SHAFT SNAP

2шт.

9

43374D

SPRING WASHER

VALVE LEVER SHAFT SPRING

2шт.

10

3045211R11

LEVER

W/BUSHING, 24564 DA, INTAKE AND EXHAUST VALVE RH

4шт.

11

16067DA

ADJUSTMENT SCREW,3/8" - 24

VALVE LEVER ADJUSTING

8шт.

133093R1

NUT,Hex, 3/8" - 24

VALVE LEVER ADJUSTING SCREW

8шт.

12

3045210R11

LEVER

W/BUSHING, 24564 DA, INTAKE AND EXHAUST VALVE LH

4шт.

13

703886R2

SUPPORT

BRACKET, VALVE LEVER SHAFT FRONT

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

14

703884R21

CAMSHAFT

SHAFT W/PLUG, 172528, VALVE LEVER

2шт.

172528

PLUG,Exp, 9/16"

9/16 EXPANSION

2шт.

15

45949D

SPRING

VALVE LEVER

2шт.

16

703893R2

SPACER

VALVE LEVER

2шт.

17

703885R1

SUPPORT

BRACKET, VALVE LEVER SHAFT CENTER

1шт.

18

703887R2

SUPPORT

BRACKET, VALVE LEVER SHAFT REAR

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

19

3049609R1

LOCK

VALVE SPRING

16шт.

20

3049610R1

CUP, INTAKE VALVE SPRING RETAINER

4шт.

21

356841R91

ROTATOR

ASSY, EXHAUST VALVE

4шт.

22

3049608R1

SPRING

VALVE

8шт.

23

24564DA

BUSHING

VALVE LEVER

8шт.

24

3044174R1

VALVE

INTAKE

4шт.

25

3044175R1

VALVE

EXHAUST

4шт.
