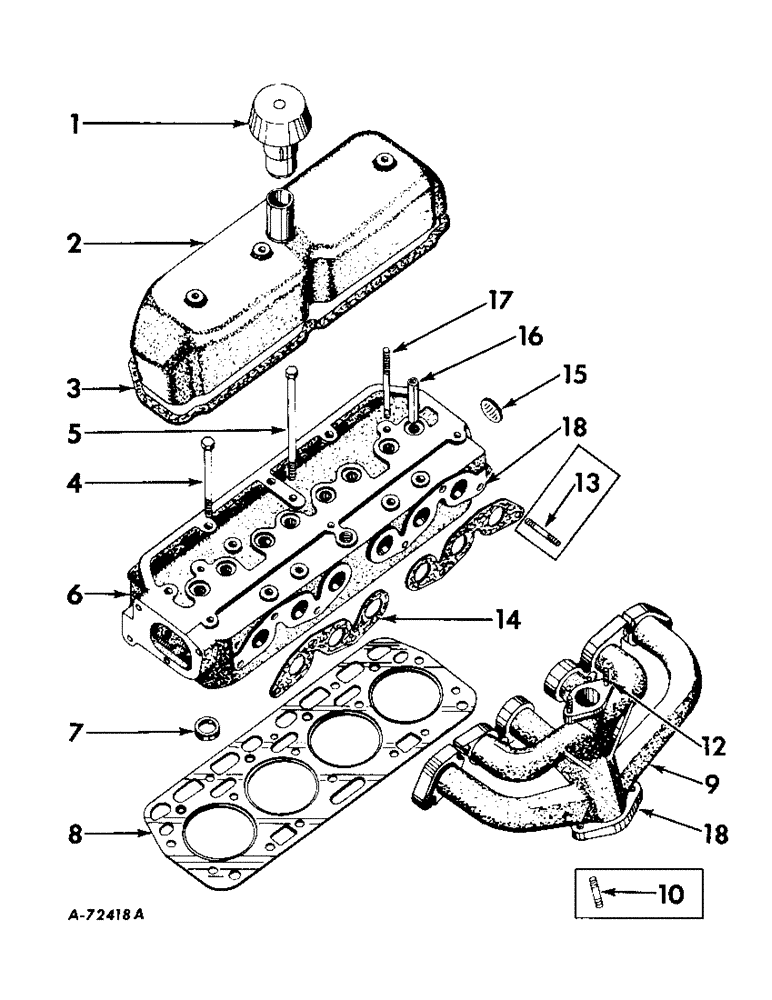

Запчасти Case IH B414 (011) - CARBURETED ENGINE, CYLINDER HEAD AND MANIFOLDS (01) - ENGINE

1

3049701R91

FILTER, ELEMENT

BREATHER ASSY, OPTIONAL W/364901R91, COMPOSED OF

1шт.

.

3060552R1

CAP

1шт.

.

3060553R1

CLIP

RETAINING

1шт.

.

3060549R1

FILTER, ELEMENT

ELEMENT, LONG

1шт.

.

3060550R1

FILTER, ELEMENT

ELEMENT, SHORT

1шт.

.

3060547R91

MUFFLER

TUBE

1шт.

.

3060551R1

WASHER

CAP

1шт.

.

3060548R1

WASHER

ELEMENT

1шт.

.

3060554R1

WASHER

TUBE

1шт.

1

364901R91

BREATHER

ASSY, OPTIONAL W/3049701R91

1шт.

1

364901R91GV

CAP

Value, Breather Assy.

1шт.

2

703894R21

COVER

ASSY, VALVE HOUSING

1шт.

.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

3

703896R1

GASKET

VALVE COVER

1шт.

4

708331R1

BOLT

BOLT, CYLINDER HEAD SHORT

13шт.

.

63116D

WASHER

CYLINDER HEAD BOLT

13шт.

5

708332R1

BOLT,Cyl Hd

CYLINDER HEAD LONG

1шт.

.

63116D

WASHER

CYLINDER HEAD BOLT

1шт.

6

3049604R92

HEAD W/VALVES ASSY, CYL COMPOSED OF

1шт.

.

3049610R1

CUP

4шт.

.

3049605R92

HEAD

1шт.

.

3049609R1

LOCK

16шт.

.

356841R91

ROTATOR

4шт.

.

3049608R1

SPRING

8шт.

.

3044174R1

VALVE

4шт.

.

3044175R1

VALVE

4шт.

6

3049605R92

HEAD ASSY, CYLINDER, COMPOSED OF

1шт.

.

3049607R1

GUIDE

1шт.

.

3044179R1

GUIDE

4шт.

.

3049606R2

HEAD (NSS)

1шт.

.

3044181R1

INSERT

4шт.

.

444691

PLUG

3шт.

.

172574

PLUG,Exp, 1 1/2"

1шт.

.

3060306R1

INSERT

6шт.

.

703875R1

STUD

2шт.

7

3044181R1

INSERT

EXHAUST VALVE SEAT

4шт.

8

3045854R1

GASKET

CYLINDER HEAD

1шт.

9

3044237R1

MANIFOLD, INTAKE AND EXHAUST

1шт.

.

2 STUD EXHAUST PIPE MOUNTING

1шт.

.

280136

NUT,3/8"-16, G8

Intake and Exhaust manifold stud 3/8"-16, G8, Serial Range: -BC-144/2000

6шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

.

24523D

WASHER

INTAKE AND EXHAUST MANIFOLD STUD

2шт.

9

3060305R11

MANIFOLD

ASSY, INTAKE AND EXHAUST, 3 BOLT EXHAUST PIPE MOUNTING, COMPOSED OF BC -144/2001 to

1шт.

.

3047734R1

STUD

2шт.

.

3060306R1

INSERT

3шт.

.

179842

SPACER

3/8-16 x 1-3/8 HEX-HD CAP

6шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

.

24523D

WASHER

INTAKE AND EXHAUST MANIFOLD STUD

2шт.

10

704164R1

STUD

EXHAUST PIPE, Serial Range: -BC-144/2000

1шт.

11

NOT USED

1шт.

12

3047734R1

STUD, CARBURETOR

2шт.

13

3044180R1

STUD

MANIFOLD TO CYLINDER HEAD, Serial Range: -BC-144/2000

6шт.

14

3044210R1

GASKET

INTAKE AND EXHAUST MANIFOLD

2шт.

15

172574

PLUG,Exp, 1 1/2"

1-1/2 EXPANSION

1шт.

16

3049607R1

GUIDE

INTAKE VALVE

4шт.

16

3044179R1

GUIDE

EXHAUST VALVE

4шт.

17

703875R1

STUD

ROCKER SHAFT END BRACKET

2шт.

18

3060306R1

INSERT, 3/8 HELI-COIL THREADED

6шт.
