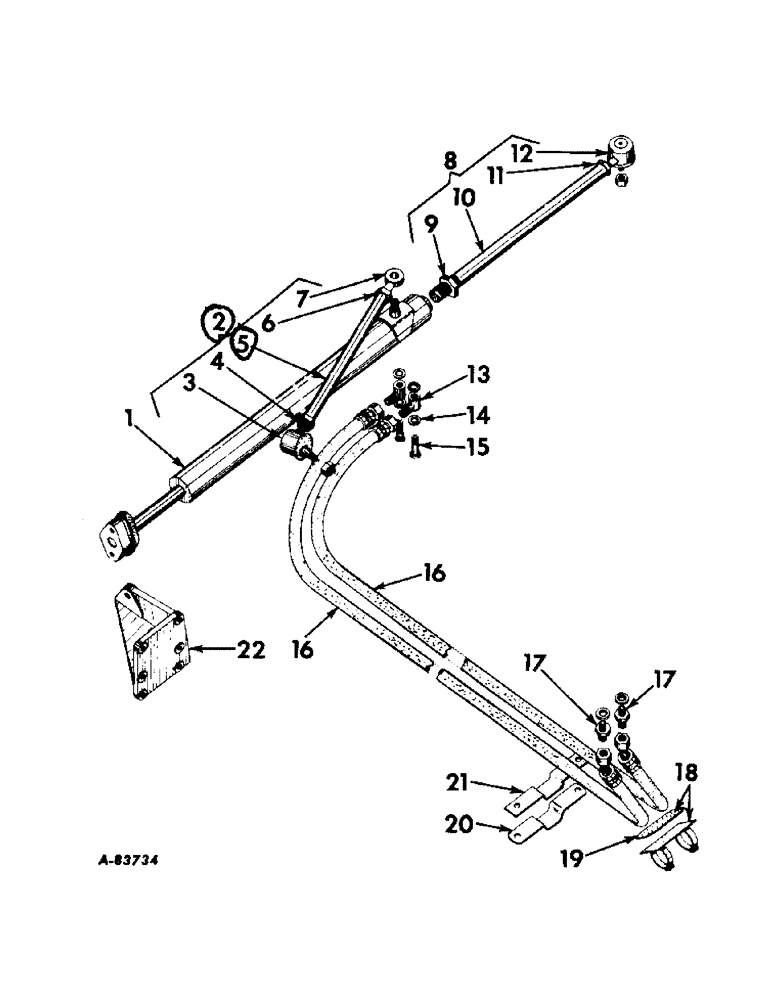

Запчасти Case IH B414 (104) - STEERING MECHANISM, POWER STEERING BOOSTER AND HOSES Steering Mechanism

1

3043938R92

STEERING CYLINDER

BOOSTER ASSY, STEERING (FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING BOOSTER)

1шт.

2

3043949R91

LINK

ASSY, STEERING DRAG (COMPOSED OF

1шт.

3041067R1

BOOT

1шт.

3041066R1

CLIP

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3041065R1

WASHER

)

1шт.

3

3040921R92

KNEE JOINT

SOCKET ASSY

1шт.

4

705247R1

NUT

3/8 IN. LH B.S.P.

1шт.

5

3043953R1

LINK, DRAG

1шт.

6

705248R1

NUT

3/8 IN. RH B.S.P.

1шт.

7

3043951R1

END, DRAG LINK

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 GA

1шт.

8

3043945R91

LINK

ASSY, CONNECTING (COMPOSED OF

1шт.

3043937R1

NUT

1шт.

705247R1

NUT

1шт.

3043946R1

LINK

1шт.

3045309R91

BALL JOINT

SOCKET

1шт.

9

3043937R1

NUT

1-12UNF HEX. JAM

1шт.

10

3043946R1

LINK

CONNECTING

1шт.

11

705247R1

NUT

3/8 IN. LH B.S.P.

1шт.

12

3045309R91

BALL JOINT

SOCKET ASSY, LH

1шт.

13

3043982R1

BOLT

BANJO, Serial Range: -B-414/23355

2шт.

13

3064499R1

BOLT,Mild Steel

BANJO, Start Serial: B-414/23356

2шт.

14

704743R91

SEALING WASHER

WASHER, SEALING, Serial Range: -B-414/23355

6шт.

14

3045118R1

SEAL

WASHER, SEALING, Start Serial: B-414/23356

6шт.

15

3043983R1

BOLT, BANJO, Serial Range: -B-414/23355

2шт.

15

3064500R1

BOLT

BANJO, Start Serial: B-414/23356

2шт.

16

3043978R91

HOSE

ASSY

2шт.

17

702270R2

ADAPTER

ADAPTOR, REDUCING

2шт.

18

3045831R91

SHIELD ASSY W/SHEET 3047839R1 AND PLATE 3060195R1, HOSE (FOR UNDERSLUNG EXHAUST)

1шт.

109084

NUT,1/4"-20, G5

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

3047839R1

SHEET, HOSE SHIELD ASBESTOS

1шт.

20

3043979R1

BRACKET

HOSE

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

21

3043980R1

INSERT

RUBBER

2шт.

22

3043954R1

BRACKET

RE-ACTION

1шт.

102635

NUT,3/8"-16, G5

2шт.

141244

PIN

3/8 x 1 DOWEL

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/8 STR-LUB

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4 SQ-HD PIPE, USED IN CRANKCASE, Serial Range: -B-414/21195

1шт.

3063930R94

PACKAGE, FIELD IMPROVEMENT (USED WITH VARY TOUCH CONTROL) (TO UPDATE TRACTORS IN THE FIELD EQUAL ), Start Serial: B-414/21196

1шт.

3063920R1

ADAPTER

ADAPTOR

4шт.

3063912R91

BLOCK

1шт.

706405R1

CLAMP

2шт.

3040744R91

CLIP

8шт.

3062073R93

FILTER

1шт.

3063927R91

HOSE

1шт.

3062074R1

HOSE

4шт.

3063923R1

MANIFOLD

1шт.

109084

NUT,1/4"-20, G5

1шт.

271500

SOCKET

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

O-RING

1шт.

3069926R11

PIPE

1шт.

3063921R1

PIPE

1шт.

3063922R1

PIPE

1шт.

3063928R1

PLATE

1шт.

3063911R92

PUMP

1шт.

705519R1

RING

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW

2шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

2шт.

707888R92

COCK

TAP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
