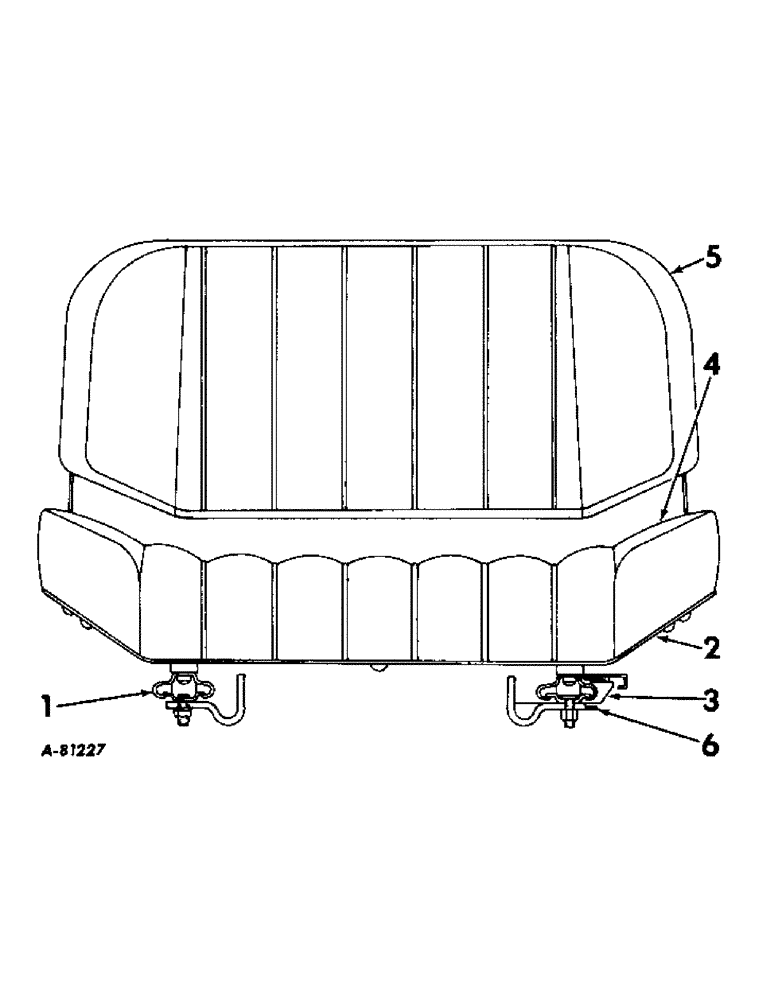

Запчасти Case IH B414 (146A) - SEAT AND SUPPORT, SEAT, B-414 DIESEL/26589 UP AND B-414 GASOLINE/3448 UP Seat & Supports

3064746R91

SEAT ASSY, DELUXE

1шт.

3065389R1

NUT, 1/2-13 LOCK

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 HEX-HD CAP

2шт.

120396

WASHER

17/32 x 1-1/16 x .095

2шт.

1

3067848R1

RAIL, SLIDE RH

1шт.

2

3068211R91

SEAT

PAN ASSY, SEAT

1шт.

3

3067849R1

RAIL W/ADJUSTING LEVER, SLIDE LH

1шт.

4

3068212R91

CUSHION

ASSY, SEAT

1шт.

5

3068213R91

ARMREST

CUSHION ASSY, BACK

1шт.

6

3067850R1

BRACKET, SEAT

2шт.

120376

NUT,5/16"-18, G5

10шт.

155338

SCREW, 1/4-20 x 1/2 C-Z RD-HD CR-REC MACH

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.
