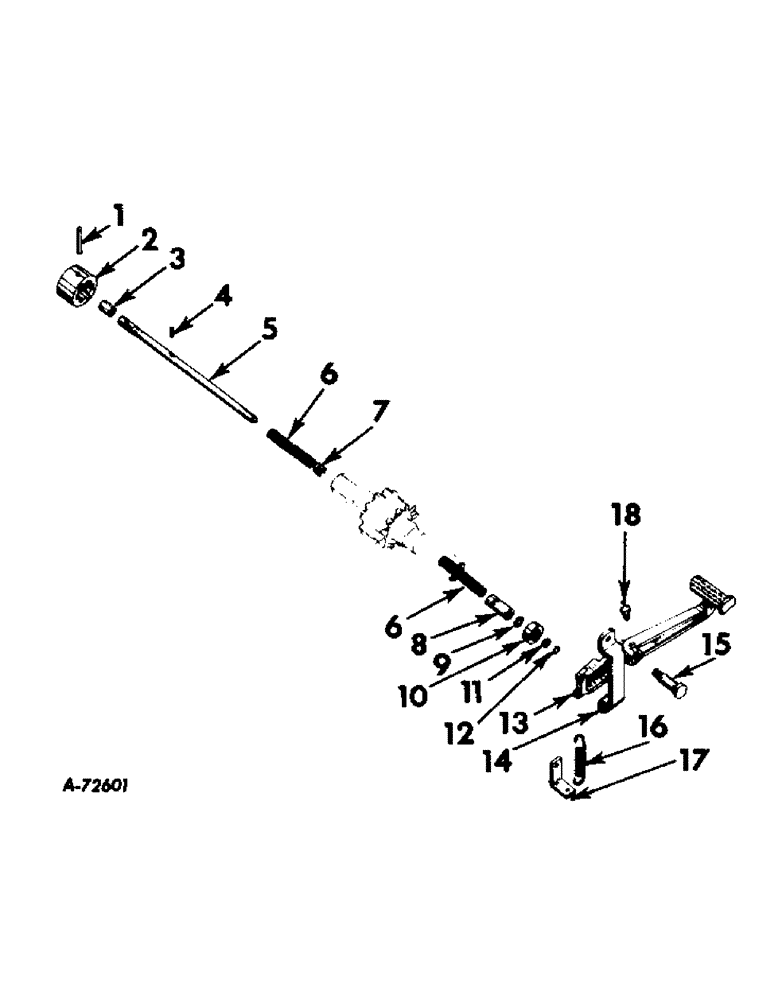

Запчасти Case IH B414 (091) - REAR FRAME AND DRIVING MECHANISMS, DIFFERENTIAL LOCK Rear Frame & Driving Mechanisms

1

443050

PIN

5/16 x 2-1/2 TYPE 3 GROOVE

1шт.

2

704747R1

CLUTCH

DIFFERENTIAL LOCK

1шт.

3

704750R1

TUBE

DISTANCE PIECE, DIFFERENTIAL LOCK SHAFT

1шт.

4

141155

DOWEL,3/16" x 3/4"

PIN, 3/16 x 3/4 DOWEL

1шт.

5

708997R2

SHAFT

DIFFERENTIAL LOCK

1шт.

6

705233R1

SPRING

DIFFERENTIAL LOCK

2шт.

7

704749R1

COLLAR

DIFFERENTIAL LOCK SHAFT

1шт.

8

708996R1

RETAINER

DIFFERENTIAL LOCK SHAFT O-RING

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, DIFFERENTIAL LOCK SHAFT INNER

1шт.

10

708998R91

SEAL

DIFFERENTIAL LOCK SHAFT OIL

1шт.

11

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32, DIFFERENTIAL LOCK SHAFT OUTER

1шт.

12

708999R1

RETAINER

CIRCLIP, EXTERNAL

1шт.

13

704744R4

LEVER

DIFFERENTIAL LOCK

1шт.

14

704758R1

LARGE PLATE

PLATE, DIFFERENTIAL LOCK LEVER THRUST

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 HEX-HD CAP

2шт.

W6652

WASHER

15/32 x 1 x 16 GA

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

704757R1

BOLT

DIFFERENTIAL LOCK PIVOT

1шт.

615167R1

WASHER

25/32 x 1-3/16 x 16 GA

2шт.

16

704759R2

SPRING

DIFFERENTIAL LOCK LEVER RETURN

1шт.

17

707299R2

PLATE, DIFFERENTIAL LOCK LEVER RETURN SPRING ANCHOR to B-414 DIESEL/31373

1шт.

17

707299R2

PLATE, DIFFERENTIAL LOCK LEVER RETURN SPRING ANCHOR to B-414 GASO

1шт.

17

3064165R1

PLATE

DIFFERENTIAL LOCK LEVER RETURN SPRING ANCHOR B-414, Start Serial: DIESEL/31374

1шт.

17

3064165R1

PLATE

DIFFERENTIAL LOCK LEVER RETURN SPRING ANCHOR B-414, Start Serial: GASO

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Differential lock lever 1/8"-27 x .66 lg

1шт.
