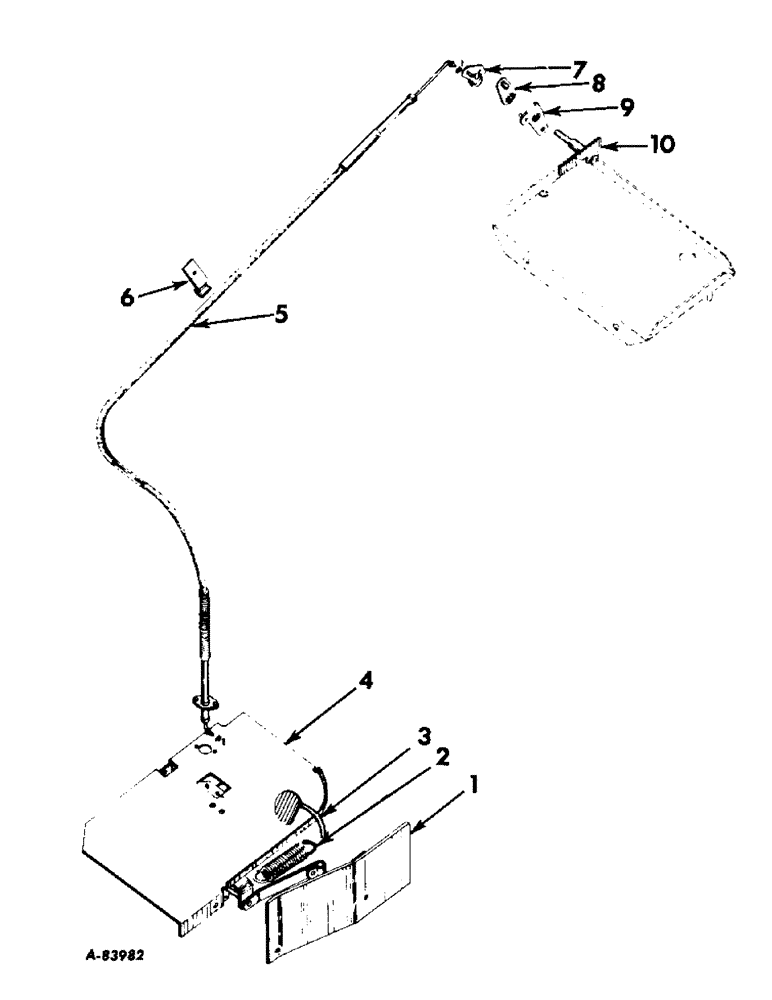

Запчасти Case IH B414 (052) - GOVERNOR, FOOT OPERATED ACCELERATOR ATTACHMENT, GASOLINE ENGINE TRACTORS Governor

3045851R92

ATTACHMENT, FOOT OPERATED ACCELERATOR

1шт.

1

751666R11

PLATE ASSY, FOOT GUIDE

1шт.

102635

NUT,3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3047546R1

SPRING

ACCELERATOR PEDAL

1шт.

3

3047530R91

PEDAL, FOOT CONTROL

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

3045280R94

FOOTPLATE ASSY, RH

1шт.

5

3045301R92

CABLE

ASSY

1шт.

225-10108

NUT,#8-32

Machine screw #8-32

2шт.

451689

SHAKER SHOE

SCREW, NO. 8-32 UNF HEX-HD MACH

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

6

3047538R1

CLIP, CABLE

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

3047543R11

BELLCRANK ASSY, FOOT CONTROL

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

8

3047541R11

BELLCRANK ASSY, TWO-WAY

1шт.

9

3047539R11

BELLCRANK ASSY, HAND CONTROL

1шт.

10

3045049R92

BRACKET ASSY, BELLCRANK PIVOT

1шт.

3047548R1

BRACKET, HIGH SPEED STOP

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX. JAM

2шт.

181317

PULLEY

SCREW, 1/4-28 x 1-1/4 HEX-HD CAP

2шт.
