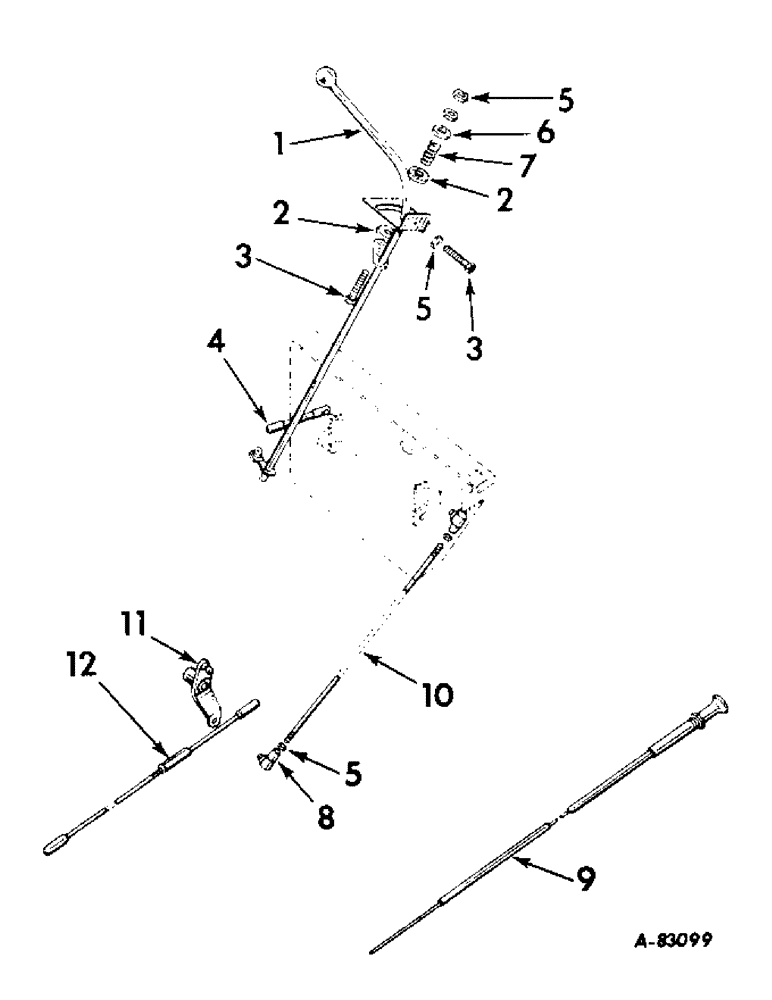

Запчасти Case IH B414 (050) - GOVERNOR, GOVERNOR CONTROLS, CARBURETED ENGINE TRACTORS Governor

1

3045349R91

CONTROL ASSY, GOVERNOR

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 GA

1шт.

2

3047324R1

WASHER, FRICTION GOVERNOR CONTROL

2шт.

3

NLS

NO LONGER SERVICED

SCREW, 1/4-28 x 1-1/2 SLT-FIL-HD MACH

2шт.

4

708431R92

ROD

ASSY, CONTROL CROSS SHAFT

1шт.

5

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX. JAM

3шт.

6

3047325R1

WASHER

GOVERNOR CONTROL

1шт.

7

3047323R1

SPRING

FRICTION GOVERNOR CONTROL

1шт.

8

3043081R92

JOINT, BALL

2шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX. JAM

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

3045038R91

CABLE

ASSY, CHOKE CONTROL

1шт.

10

3045032R1

ROD, BELL CRANK TO CROSS SHAFT CONTROL

1шт.

11

3045035R11

CRANK, BELL CONTROL HAND

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

12

3045034R92

ROD ASSY, BELL CRANK TO GOVERNOR CONTROL

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.
