(153) - ENGINE CONTROLS, INSTRUMENT & PANEL, TACHOMETER, B-414 GASOLINE/5886 UP

Запчасти Case IH B414 (153) - ENGINE CONTROLS, INSTRUMENT & PANEL, TACHOMETER, B-414 GASOLINE/5886 UP Engine Controls

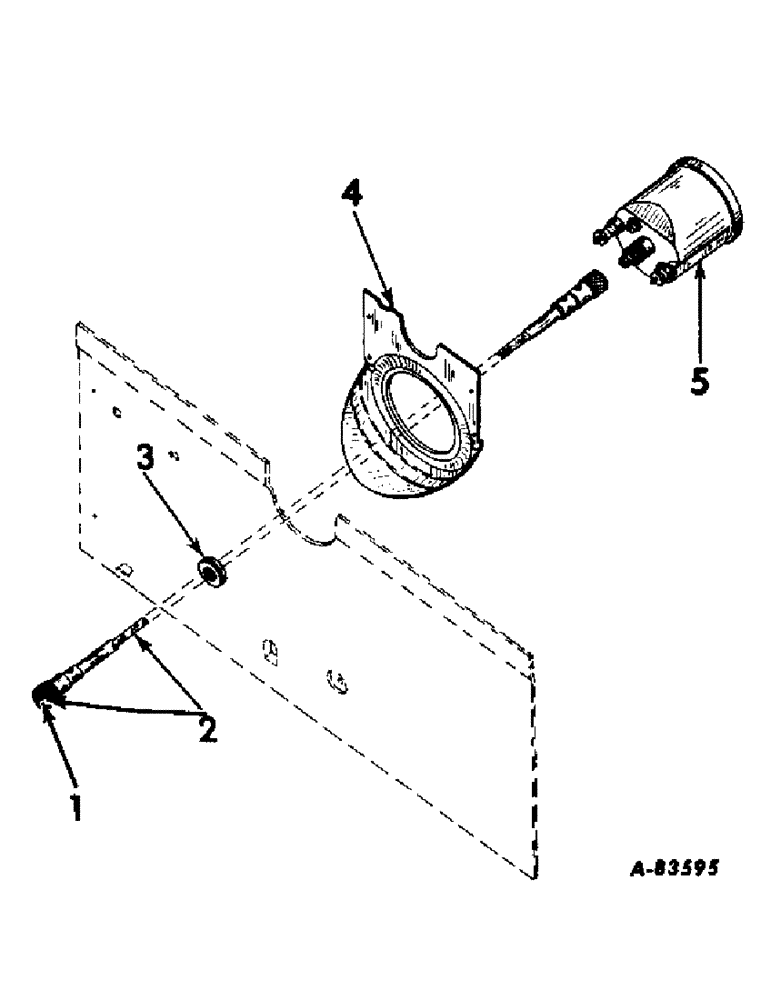

Схема запчастей Case IH B414 - (153) - ENGINE CONTROLS, INSTRUMENT & PANEL, TACHOMETER, B-414 GASOLINE/5886 UP Engine Controls
5
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3069058R92

ATTACHMENT, TACHOMETER

1шт.

1

3068985R1

FLEXIBLE DRIVE SHAFT

CORE, TACHOMETER DRIVE SHAFT

1шт.

2

3068984R91

CABLE

SHAFT ASSY, TACHOMETER DRIVE

1шт.

3

3040862R1

WASHER

GROMMET, SHAFT TACHOMETER DRIVE

1шт.

4

3040857R91

BRACKET ASSY, TACHOMETER

1шт.

186509

CAPSCREW

SCREW, NO. 8 x 1/4 TYPE B PAN-HD CR-REC

4шт.

5

3068983R91

METER

TACHOMETER

1шт.
