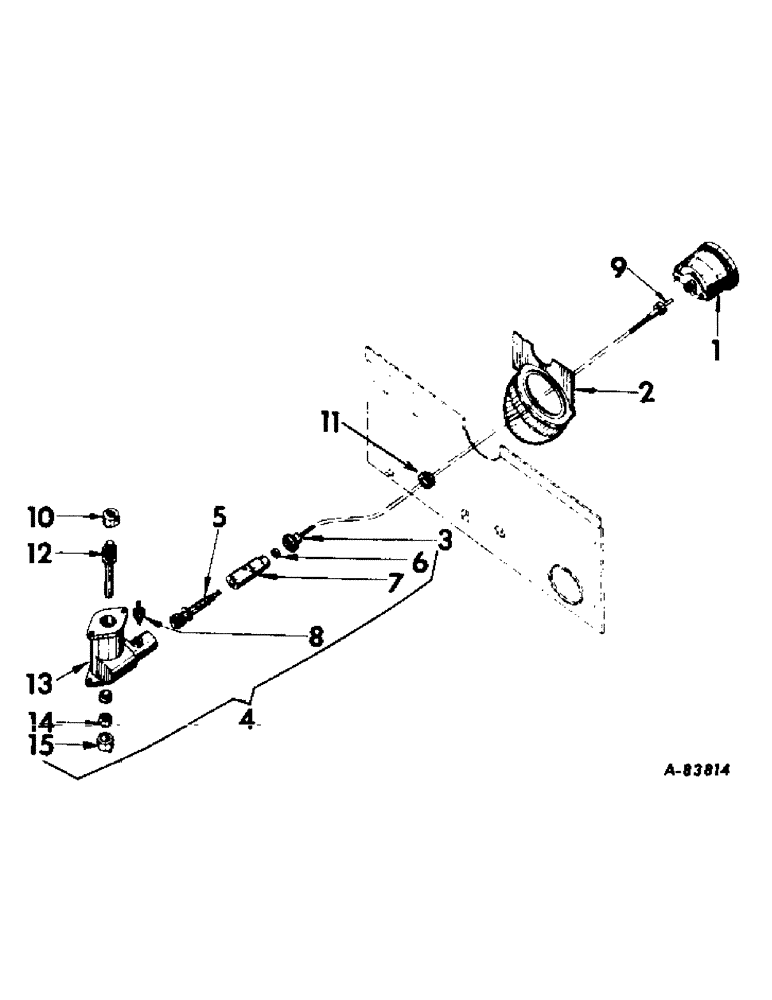

Запчасти Case IH B414 (152) - ENGINE CONTROLS, INSTRUMENT & PANEL, TACHOMETER, UP TO B-414 GASOLINE/5885 Engine Controls

3045780R92

ATTACHMENT, TACHOMETER

1шт.

1

3045066R92

METER

TACHOMETER

1шт.

2

3040857R91

BRACKET ASSY, TACHOMETER

1шт.

125706

SPARE PART

SCREW, NO. 8 x 1/4 SELF TAPPING

4шт.

3

3047701R91

DRIVE

SHAFT ASSY, TACHOMETER DRIVE (34-1/4 IN.)

1шт.

4

3047702R92

DRIVE

ASSY, TACHOMETER (COMPOSED OF

1шт.

3047708R1

BUSHING

2шт.

3047704R2

GEAR

1шт.

3047705R2

GEAR

1шт.

3047703R1

HOUSING

1шт.

3047706R1

PAWL

1шт.

3061100R1

PIN

1шт.

3064183R11

SCREW

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3047705R2

GEAR

DRIVEN

1шт.

6

3047711R91

OIL SEAL

TACHOMETER DRIVE OIL

1шт.

7

3047710R1

BEARING, DRIVEN GEAR

1шт.

8

3064183R11

SCREW W/LUB FITTING, BEARING RETAINER

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

3049383R1

CABLE PULLING GRIP

CORE, TACHOMETER DRIVE SHAFT (35-1/4 IN.)

1шт.

10

3047709R1

PAWL, DISTRIBUTOR DRIVING

1шт.

3061100R1

PIN

ROLL

1шт.

11

3040862R1

WASHER

GROMMET, SHAFT TACHOMETER DRIVE

1шт.

12

3047704R2

GEAR, TACHOMETER DRIVE

1шт.

13

3047703R1

HOUSING, TACHOMETER GEAR BOX

1шт.

14

3047708R1

BUSHING, TACHOMETER DRIVE

2шт.

15

3047706R1

PAWL

TACHOMETER DRIVE

1шт.

3061100R1

PIN

ROLL

1шт.
