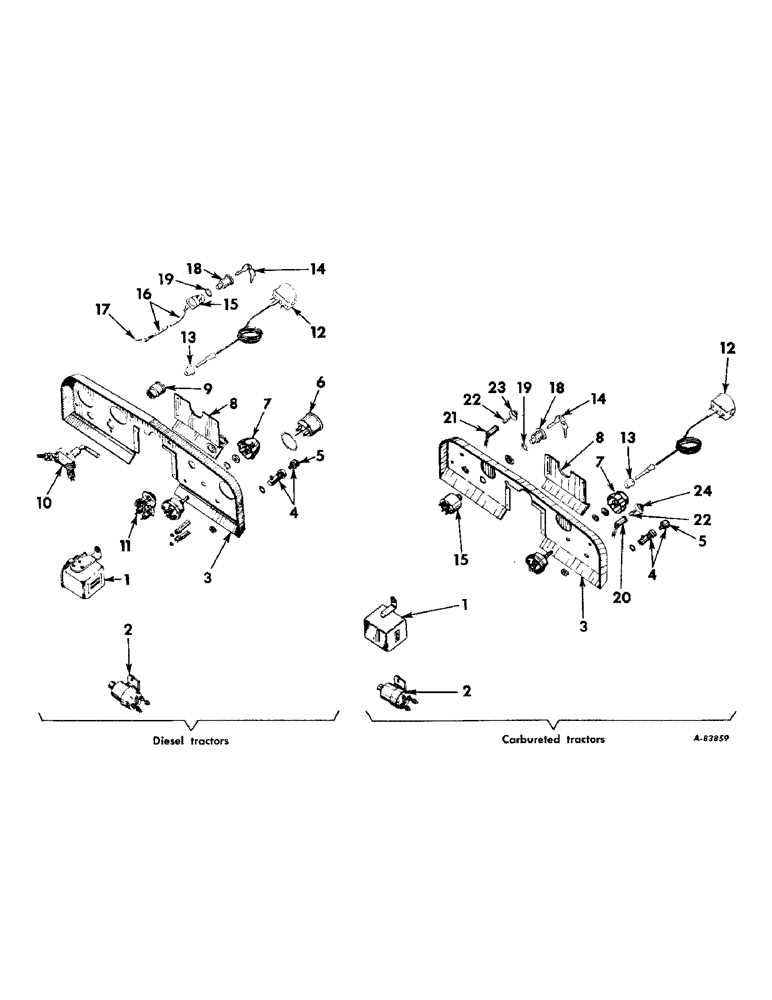

Запчасти Case IH B414 (151) - ENGINE CONTROLS INSTRUMENT & PANEL, INSTRUMENT PANEL & INSTRUMENTS, FOR DIESEL & CARBURETED TRACTORS Engine Controls

1

708969R92

REGULATOR

ASSY, VOLTAGE, 12 VOLT, Serial Range: -B-414/19473

1шт.

1

3064234R91

GOVERNOR

REGULATOR ASSY, VOLTAGE, 12 VOLT (COMPOSED OF, Start Serial: B-414/19474

1шт.

3043624R1

BRACKET

1шт.

3043625R1

SCREW

1шт.

705827R1

WASHER)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

133049

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4-10 x 1 SLT-RD-HD MACH

2шт.

700489R1

SLEEVE

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

704668R94

SWITCH

STARTER MOTOR SOLENOID (12 VOLT)

1шт.

372632A1

SPRING

NO. 12 HEX-HD

2шт.

113809

SCREW, NO. 12 x 9/16 SLT-RD-HD MACH

2шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

3

751185R11

PANEL ASSY, INSTRUMENT (DIESEL TRACTORS)

1шт.

3

3044085R11

PANEL ASSY, INSTRUMENT (CARBURETED TRACTORS)

1шт.

704445R1

NUT

1/4 BSW SPIRE SPEED

4шт.

704444R2

SCREW

1/4 BSW x 1/2 CD-PLTD RD-HD

4шт.

4

707481R92

HOLDER

W/LID 709193R92, FUSE

1шт.

706595R1

NUT

5BA BRASS LOCK

1шт.

706594R1

SCREW, 5BA x 1/4 RD-HD BRASS

1шт.

706596R1

WASHER, 5BA BRASS

1шт.

5

709193R92

COVER ASSY

LID ASSY, FUSE HOLDER

1шт.

6

708109R93

GAUGE

AMMETER W/TWO CLAMPS 708637R1 AND TWO NUTS 708636R1 (DIESEL TRACTORS)

1шт.

708637R1

CLAMP

TERMINAL CLAMP

2шт.

708636R1

NUT, TERMINAL

2шт.

7

709489R92

LIGHT SWITCH

SWITCH, LIGHTING (COMPOSED OF

1шт.

3042366R1

KNOB

1шт.

3042361R1

NUT

1шт.

3042365R1

NUT

1шт.

3042364R1

SCREW

4шт.

3042360R1

WASHER

1шт.

3042362R1

WASHER

1шт.

3042363R1

WASHER)

4шт.

3042366R1

KNOB

1шт.

3042361R1

NUT, FRICTION

1шт.

3042365R1

NUT, RETAINING SWITCH

1шт.

3042360R1

WASHER, LOCK

1шт.

3042362R1

WASHER

1шт.

3042363R1

WASHER

4шт.

8

708435R1

PLATE, INSTRUMENT PANEL FILLER

1шт.

186758

SCREW, TUPE A NO. 8 x 1/4 PAN-HD CR-REC TAP.

4шт.

9

707573R1

SLEEVE

REUBER (DIESEL TRACTORS)

1шт.

10

3063978R91

SWITCH

ASSY, GLOW PLUG (DIESEL TRACTORS) (COMPOSED OF

1шт.

3068252R1

CAP

1шт.

3063976R91

SWITCH

1шт.

114947

WASHER

4шт.

109084

NUT,1/4"-20, G5

2шт.

137138

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 SLT-TRUSS-HD MACH

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

706685R92

RESISTOR

ASSY, INDICATOR (DIESEL TRACTORS) (COMPOSED OF

1шт.

3043619R1

COIL

1шт.

3043504R1

NUT

2шт.

3043500R1

NUT

1шт.

3043505R1

SCREW

3шт.

3043502R1

WASHER

2шт.

3043503R1

WASHER

2шт.

3043501R1

WASHER)

1шт.

3043500R1

NUT, MOUNTING (INDICATOR RESISTOR TO DASH)

1шт.

3043504R1

NUT, FIXING COIL

3шт.

3043505R1

SCREW, TERMINAL

2шт.

3043503R1

WASHER, PLAIN

2шт.

3043502R1

WASHER, SPRING

2шт.

3043501R1

WASHER, NUT MOUNTING

1шт.

12

704538R92

NO LONGER SERVICED

INDICATOR W/NUT 376575R1 AND ADAPTER 707355R1, HEAT

1шт.

13

707355R1

ADAPTER

SENDING UNIT NUT TO CRANKCASE

1шт.

376575R1

NUT, SENDING UNIT ADAPTER SECURING

1шт.

14

3062962R1

KEY

IGNITION SWITCH

1шт.

15

3062964R91

IGNITION SWITCH

SWITCH, IGNITION AND STARTER (CARBURETED TRACTORS)

1шт.

Shows that the key comes with the switch, it does not!

1шт.

3047375R1

NUT, FIXING FRONT

1шт.

3047376R1

SPACER

1шт.

15

3062963R1

SWITCH

IGNITION (DIESEL TRACTORS)

1шт.

16

751685R91

CABLE, SWITCH TO SOLENOID (DIESEL TRACTORS)

1шт.

17

705897R1

CONNECTOR, ELEC

CONNECTOR, CABLE (DIESEL TRACTORS)

1шт.

18

3062961R1

X

LOCK, IGNITION SWITCH

1шт.

19

3063383R1

RING, IGNITION SWITCH SEALING (DIESEL TRACTORS)

1шт.

19

3063384R1

SEALING RING

RING, IGNITION SWITCH SEALING (CARBURETED TRACTORS)

1шт.

20

LIGHT ASSY, IGNITION WARNING (PART OF MAIN CABLE HARNESS 3044088R92) (CARBURETED TRACTORS)

1шт.

21

LIGHT ASSY, OIL PRESSURE WARNING (PART OF MAIN CABLE HARNESS 3044088R92) (CARBURETED TRACTORS)

1шт.

22

3048831R91

LAMP

WARNING LIGHT (CARBURETED TRACTORS)

2шт.

23

3048829R91

LENS W/MOUNT, IGNITION WARNING LIGHT, RED (CARBURETED TRACTORS)

1шт.

24

3048830R91

LENS W/MOUNT, OIL PRESSURE WARNING, GREEN (CARBURETED TRACTORS)

1шт.

455844

FUSE,25 Amp, Type 3AG

25 AMP

1шт.

751686R1

TERMINAL (DIESEL TRACTORS)

1шт.
