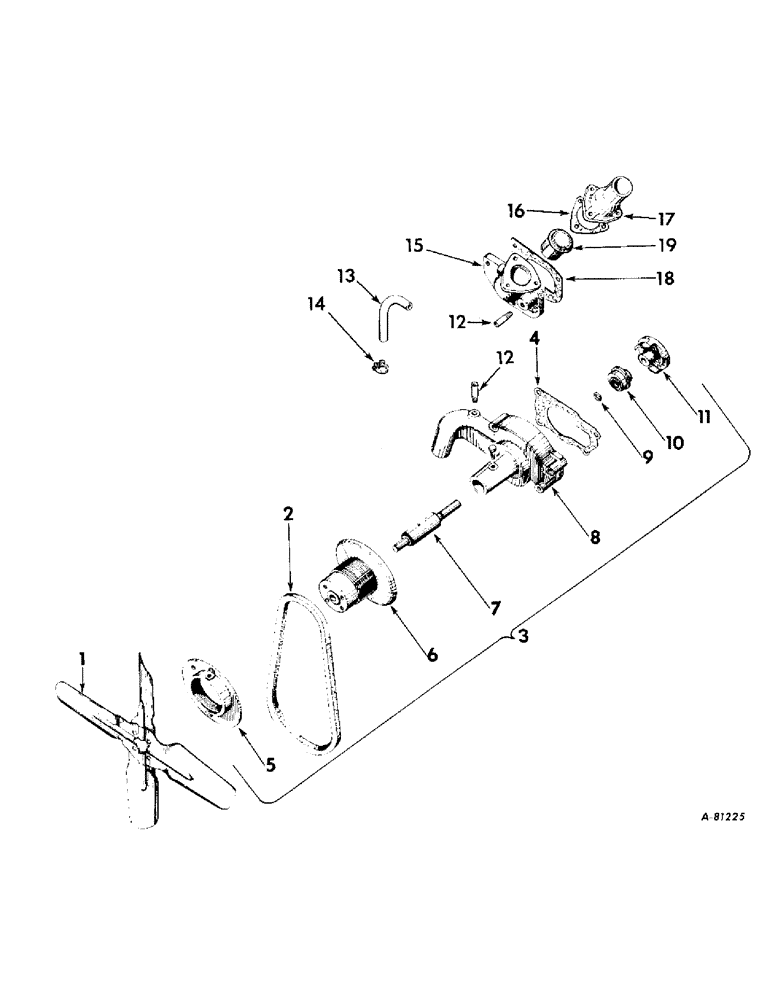

Запчасти Case IH B414 (046) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, BC-144/6029 UP, BD-154/32795 UP COOLING SYSTEM

1

706749R91

FAN

BLADE ASSY, FAN

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

709502R1

BELT

BELT, Fan

1шт.

3

703820R94

WATER PUMP

PUMP ASSY, WATER, COMPOSED OF

1шт.

3

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

704216R4

BODY

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

WATER PUMP BEARING RETAINING

1шт.

703825R11

FLANGE

1шт.

704222R1

HUB

1шт.

709909R2

TURBINE

IMPELLER

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

703822R91

SEAL

1шт.

3065123R1

TUBE

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

703816R1

GASKET

WATER PUMP

1шт.

5

703825R11

FLANGE

W/SCREW, 102831 and NUT, 114502 WATER PUMP PULLEY

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102831

SCREW

5/16-18 x 7/8 HDLS-DOG-PT SET

1шт.

6

704222R1

HUB

WATER PUMP PULLEY

1шт.

7

704217R91

NO LONGER SERVICED

BEARING, WATER PUMP SPINDLE

1шт.

8

704216R3

BODY

WATER PUMP

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

WATER PUMP BEARING RETAINING

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

WATER PUMP SPINDLE

1шт.

10

703822R91

SEAL

WATER PUMP

1шт.

11

709909R2

TURBINE

IMPELLER, WATER PUMP

1шт.

12

3065123R1

TUBE

CONNECTING, THERMOSTAT BY-PASS HOSE

2шт.

13

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

14

3065128R1

CLIP, THERMOSTAT BY-PASS HOSE

2шт.

15

3065124R11

HOUSING

ASSY, THERMOSTAT, Serial Range: -BD-144/9040

1шт.

15

3065124R11

HOUSING

ASSY, THERMOSTAT, Serial Range: -BD-154/501

1шт.

15

3069642R11

HOUSING

ASSY, THERMOSTAT, Start Serial: BC-144/9041

1шт.

15

3069642R11

HOUSING

ASSY, THERMOSTAT, Start Serial: BD-154/501

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

3065125R1

GASKET

THERMOSTAT HOUSING COVER

1шт.

17

3065126R1

COVER

THERMOSTAT HOUSING

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

703815R1

GASKET

THERMOSTAT HOUSING

1шт.

19

369322R91

THERMOSTAT

170 TO 199 DEG OPENING

1шт.

389918R91

PACKAGE

WATER PUMP SERVICE, CONSISTS OF

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

703816R1

GASKET

1шт.

709909R2

TURBINE

IMPELLER

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

703822R91

SEAL

1шт.
