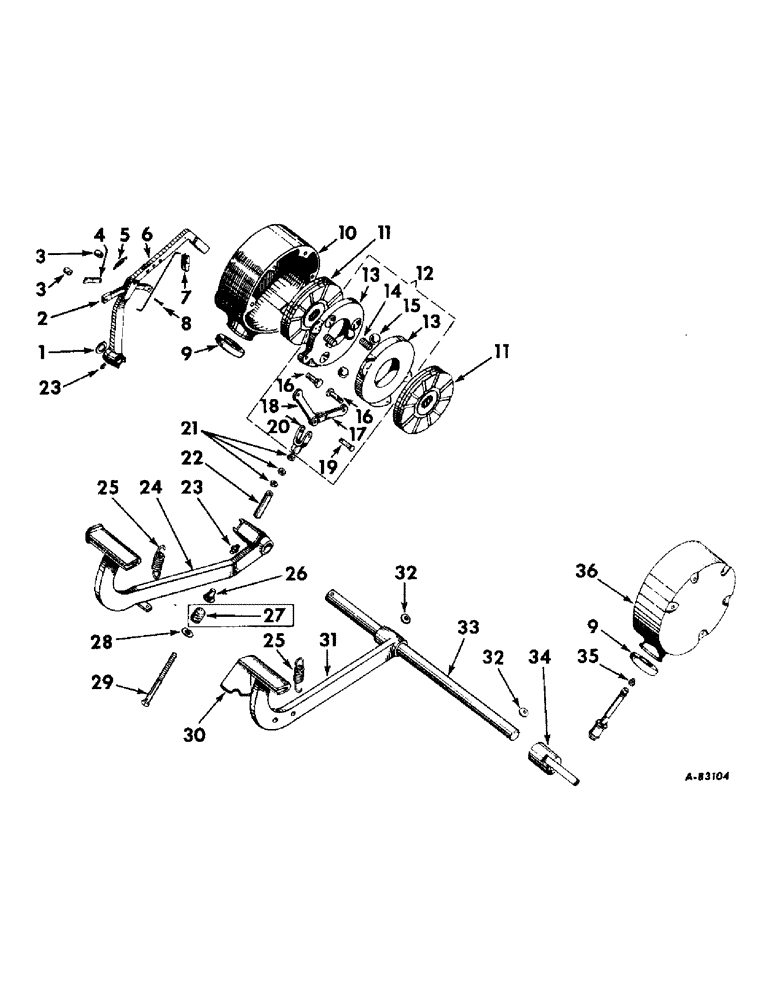

Запчасти Case IH B414 (118) - BRAKES, BRAKES, BRAKE LOCK & CONNECTIONS, 5-3/8 X 3-3/8 INCH (5.1) - BRAKES

1

65012H

WASHER, 1-9/64 x 1-3/4 x 16 GA

1шт.

119195

COTTER PIN,3/16" x 1 5/8"

PIN, SPLIT (COTTER), 3/16" x 1 5/8"

1шт.

2

709500R2

SECTOR

QUADRANT, HAND BRAKE LEVER

1шт.

3

703952R2

SPACER

HAND BRAKE LEVER QUADRANT

2шт.

102635

NUT,3/8"-16, G5

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 HEX-HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 x 16 GA

2шт.

4

709497R1

PAWL

HAND BRAKE

1шт.

709499R1

PIN

HAND BRAKE PAWL PIVOT

1шт.

137130

PIN

1/16 x 7/16 COT.

1шт.

5

709498R1

SPRING

PAWL RETURN

1шт.

6

709492R91

LEVER

W/THREE RIVETS, 103487

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

103487

RIVET, 5/16 x 13/16 SOLID B-HD

3шт.

7

709495R1

LEVER, RELEASE HAND BRAKE

1шт.

443146

AXLE PIN

PIN, 3/16 x 3/4 LONG GROOVE

1шт.

8

709496R1

ROD

HAND BRAKE PAWL

1шт.

137124

FRAME

PIN, 1/16 x 5/16 COT.

2шт.

446120

WASHER,#6

5/32 x 5/16 x .035

2шт.

9

705965R1

BOOT

BRAKE HOUSING PROTECTION

2шт.

10

708995R1

HOUSING, RH BRAKE

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 HEX-HD CAP

4шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 HEX-HD CAP

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

11

378697R91

BRAKE DISC

DISC ASSY, BRAKE

4шт.

12

3049094R92

DISC

ASSY, ACTUATING

2шт.

13

DISC ASSY, ACTUATING (ORDER 3049094R92)

1шт.

14

706037R2

SPRING

EXTENSION

4шт.

15

706039R2

BALL

ACTUATING DISC STEEL

6шт.

16

706038R1

STUD

4шт.

118624

JAM NUT,Jam, 5/16"-24, G5

5/16-24 PHOSPATE COATED HEX. JAM

4шт.

17

704428R3

LINK, ACTUATING BRAKE, FEMALE

4шт.

18

704427R2

LINK

ACTUATING BRAKE, MALE

2шт.

19

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, BRAKE OPERATING ROD YOKE

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

20

705972R1

YOKE

BRAKE OPERATING ROD

2шт.

21

325-157

NUT

7/16-20 HEX. JAM

6шт.

22

705231R2

SPACER, BRAKE OPERATING ROD to B-414 DIESEL/26740

2шт.

22

705231R2

SPACER, BRAKE OPERATING ROD to B-414 GASO

2шт.

22

3065843R1

SPACER, BRAKE OPERATING ROD (B-414 DIESEL/26741 TO 31373) (B-414 GASOLINE/2448 TO 4359)

2шт.

23

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 x 90 DEG ANGLE LUBRICATION

2шт.

24

703938R13

PEDAL ASSY, RH BRAKE to B-414 DIESEL/11649

1шт.

24

703938R13

PEDAL ASSY, RH BRAKE to B-414 GASO

1шт.

24

3063089R91

PEDAL ASSY, RH BRAKE B-414, Start Serial: DIESEL/11650

1шт.

24

3063089R91

PEDAL ASSY, RH BRAKE B-414, Start Serial: GASO

1шт.

25

703943R3

SPRING

BRAKE PEDAL RETURN

2шт.

26

3063245R1

BALL

BRAKE OPERATING ROD

2шт.

27

705977R1

SPRING

BRAKE OPERATING ROD to B-414 DIESEL/26740

2шт.

27

705977R1

SPRING

BRAKE OPERATING ROD to B-414 GASO

2шт.

28

707351R1

WASHER

BRAKE OPERATING ROD SPRING (15/32 x 1-1/8 x 11 GA)

2шт.

29

703932R3

ROD

BRAKE OPERATING to B-414 DIESEL/26740

2шт.

29

703932R3

ROD

BRAKE OPERATING to B-414 GASO

2шт.

29

3065845R1

ROD, BRAKE OPERATING (B-414 DIESEL/26741 TO 31373) (B-414 GASOLINE/2448 TO 4359)

2шт.

30

43751DB

LATCH, PEDALS

PLATE, BRAKE PEDAL LOCK

1шт.

443036

PIN, 1/4 x 3/4 GROOVE

1шт.

51293D

SPRING

LOCK PLATE TENSION

1шт.

31

703935R13

PEDAL W/PLATE 43751DB, PIN 443036 AND SPRING 51293, LH BRAKE to B-414 DIESEL/11649

1шт.

31

703935R13

PEDAL W/PLATE 43751DB, PIN 443036 AND SPRING 51293, LH BRAKE to B-414 GASO

1шт.

31

3063092R91

PEDAL W/PLATE 43751DB, PIN 443036 AND SPRING 51293D, LH BRAKE B-414, Start Serial: DIESEL/11650

1шт.

31

3063092R91

PEDAL W/PLATE 43751DB, PIN 443036 AND SPRING 51293D, LH BRAKE B-414, Start Serial: GASO

1шт.

102635

NUT,3/8"-16, G5

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

704664R1

WASHER

KEY, BRAKE LEVER

2шт.

33

703942R3

SHAFT, BRAKE PEDAL

1шт.

34

703942R3

LEVER, LH DISC BRAKE

1шт.

102635

NUT,3/8"-16, G5

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

703932R32

ROD

ASSY, BRAKE OPERATING to B-414 DIESEL-26740

2шт.

35

703932R32

ROD

ASSY, BRAKE OPERATING to B-414 GASO

2шт.

35

3065842R91

ROD ASSY, BRAKE OPERATING (B-414 DIESEL/26741 TO 31373) (B-414 GASOLINE/2448 TO 4359)

2шт.

36

704429R2

HOUSING, LH BRAKE

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 HEX-HD CAP

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

356528R91

LINING

PACKAGE, BRAKE LINING SERVICE

1шт.
