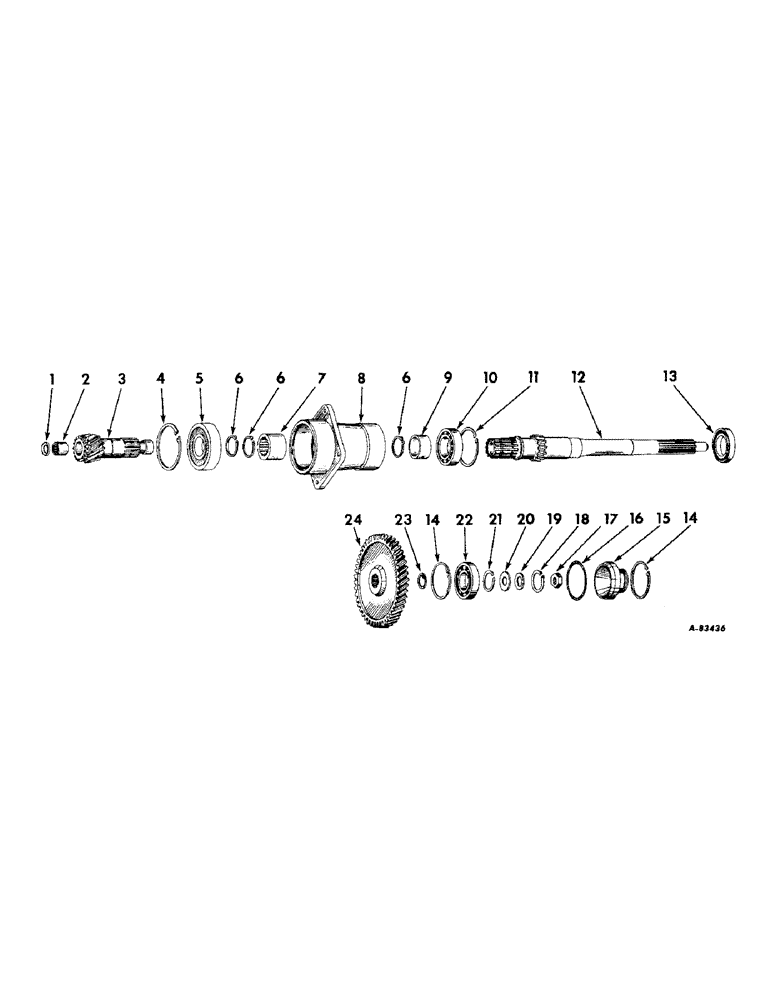

Запчасти Case IH B414 (079) - CLUTCH, SINGLE CLUTCH PTO GEARS AND SHAFT (03.1) - CLUTCH

1

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

PILOT BEARING B-414, Start Serial: DIESEL/39112

1шт.

1

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

PILOT BEARING B-414, Start Serial: GASO

1шт.

2

3043986R92

BEARING

TRANSMISSION SPLINE SHAFT PILOT to B-414 DIESEL/39111

1шт.

2

3043986R92

BEARING

TRANSMISSION SPLINE SHAFT PILOT to B-414 GASO

1шт.

2

321981R91

NEEDLE BEARING

TRANSMISSION SPLINE SHAFT PILOT to B-414 DIESEL/39111

1шт.

2

321981R91

NEEDLE BEARING

TRANSMISSION SPLINE SHAFT PILOT to B-414 GASO

1шт.

3

3049005R2

SHAFT, TRANSMISSION DRIVING to B-414 DIESEL/39111

1шт.

3

3049005R2

SHAFT, TRANSMISSION DRIVING to B-414 GASO

1шт.

4

751081R1

CLIP

CIRCLIP, TRANSMISSION DRIVING SHAFT REAR BALL BEARING RETAINING

1шт.

5

3048738R91

CRANKSHAFT BEARING

BEARING, TRANSMISSION DRIVING SHAFT

1шт.

6

3048709R1

RING, SNAP

CIRCLIP, TRANSMISSION DRIVING SHAFT REAR BALL BEARING RETAINING

3шт.

7

3049008R1

COUPLING, SPLINED

1шт.

8

3049004R1

CAGE, TRANSMISSION SPLINE SHAFT BEARING

1шт.

9

3049007R1

SPACER, TRANSMISSION AND PTO DRIVING SHAFT

1шт.

10

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, TRANSMISSION AND PTO DRIVING SHAFT REAR BALL

1шт.

11

751149R1

RING

CIRCLIP, TRANSMISSION AND PTO DRIVING SHAFT REAR BALL BEARING RETAINING

1шт.

12

3048700R4

SHAFT

TRANSMISSION AND PTO DRIVING

1шт.

13

3049150R92

SEAL

OIL SEAL, TRANSMISSION AND PTO DRIVING SHAFT

1шт.

14

751149R1

RING

CIRCLIP, PTO FRONT BEARING RETAINING, 85 MM INTERNAL

2шт.

15

751148R3

CAP

PTO FRONT BEARING

1шт.

16

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

PTO FRONT BEARING CAP, 3-3/8 x 3-3/4 x 3/16

1шт.

17

219753

BACK-UP RING

FRONT PTO SHAFT LOCK to B-414 DIESEL/28387

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

FRONT PTO SHAFT LOCK to B-414 GASO

1шт.

18

269181R1

SNAP RING,#75, Ext

Ring, Snap, , front PTO shaft #75, Ext B-414, Start Serial: DIESEL-28388

1шт.

18

269181R1

SNAP RING,#75, Ext

Ring, Snap, , front PTO shaft #75, Ext B-414, Start Serial: GASO

1шт.

19

751143R1

LOCK WASHER

FRONT PTO SHAFT LOCKING to B-414 DIESEL/28387

1шт.

19

751143R1

LOCK WASHER

FRONT PTO SHAFT LOCKING to B-414 GASO

1шт.

20

751142R1

WASHER

FRONT PTO SHAFT RETAINING

1шт.

21

751146R1

RING

CIRCLIP, PTO FRONT BEARING RETAINING, 45 MM EXTERNAL

1шт.

22

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, FRONT PTO SHAFT

1шт.

23

751145R1

RING, SNAP

CIRCLIP, PTO DRIVEN GEAR

1шт.

24

3044007R11

GEAR

ASSY, PTO DRIVE

1шт.
