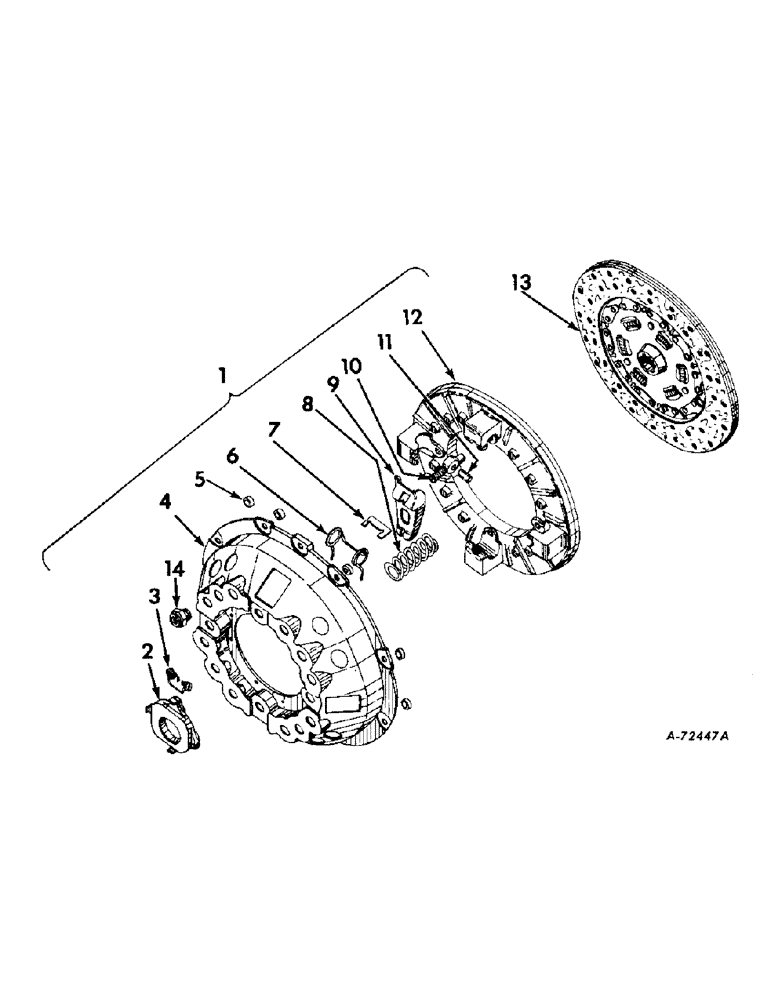

Запчасти Case IH B414 (077) - CLUTCH, SINGLE CLUTCH, 11 INCH HEAVY DUTY (03.1) - CLUTCH

3046389R91

CLUTCH ASSEMBLY

CLUTCH ASSY, 11 IN. HEAVY DUTY, HIS CLUTCH IS MOUNTED ON BOSSES FROM THE FLYWHEEL FACE

1шт.

1

3062712R92

CLUTCH, PRESSURE PLA

PLATE ASSY, CLUTCH PRESSURE

1шт.

179842

SPACER

3/8-16 x 1-3/8 HEX-HD CAP

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

3048593R1

CLUTCH DISC

PLATE, RELEASE LEVER

1шт.

3

705530R1

SPRING

RETAINER, RELEASE LEVER PLATE

4шт.

4

3063481R91

COVER

PLATE W/EIGHT SPACERS, 3062718R1, BACK

1шт.

5

3062718R1

SPACER

PLATE W/EIGHT SPACERS, 3062718R1, BACK

1шт.

6

3069740R1

VALVE SPRING

SPRING, ANTI-RATTLE, USED WITH PLATE, 3062712R92

4шт.

7

700915R1

STRUT

4шт.

8

3048592R1

SPRING

THRUST

12шт.

9

3048594R1

LEVER

RELEASE

4шт.

10

3062715R1

BOLT (SPREADER)

EYEBOLT

4шт.

11

700913R1

PIN

RELEASE LEVER

4шт.

12

3062716R1

PLATE

PRESSURE

1шт.

13

3062713R91

CLUTCH DISC

DISC ASSY, CLUTCH DRIVEN, 1-1/8 IN. SPLINE

1шт.

14

3062714R1

NUT

EYEBOLT

4шт.

3069327R91

FACING

PACKAGE, DRIVEN DISC FACING

1шт.
