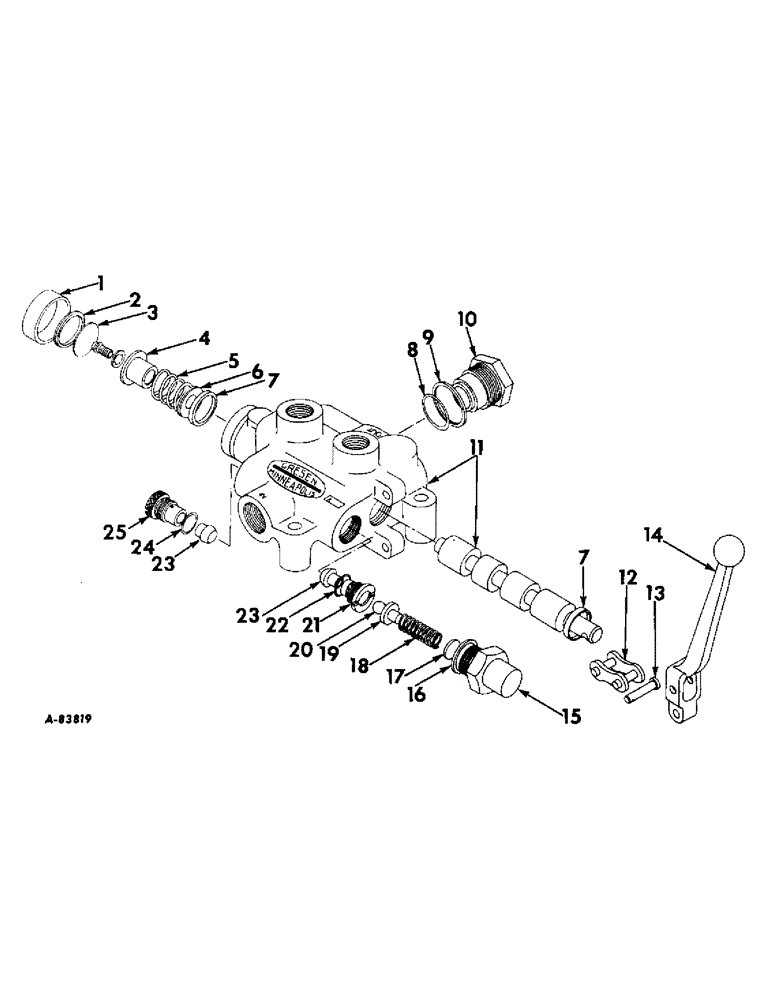

Запчасти Case IH B414 (134) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

375453R91

VALVE ASSY, HYDRAULIC CONTROL

1шт.

1

663034R1

CYLINDER END CAP

CAP, BONNET

1шт.

2

663025R1

OIL SEAL

RING, STOP DISC SNAP

1шт.

3

663023R1

CAP

END

1шт.

4

663022R1

COLLAR

STOP, COLLAR

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z SLT-RD-HD MACH

1шт.

174878

WASHER

1/4 INT-TOOTH LOCK

1шт.

5

663024R1

SPRING

CENTERING

1шт.

6

149372R1

WASHER

STOP

1шт.

7

663032R1

O-RING

SEAL, SPOOL

2шт.

8

666218R1

SEAL

SEAL, SLEEVE

1шт.

9

635971R1

GASKET, SLEEVE

1шт.

10

666217R1

SLEEVE

1шт.

11

BODY W/SPOOL ASSY (ORDER VALVE 375453R91)

1шт.

12

1397D

DRAG LINK

LINK, 1 IN. PITCH SINGLE CONNECTING

1шт.

187357

PIN, 1/16 x 1-1/2 COT.

1шт.

13

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, HANDLE

1шт.

19454R1

PIN

5/64 x 7/16 COT.

1шт.

14

380366R1

HANDLE

VALVE

1шт.

15

380363R1

FITTING

BODY, RELIEF

1шт.

16

663029R1

GASKET

RELIEF VALVE BODY

1шт.

17

380365R1

SHIM

1шт.

18

380364R1

SPRING

RELIEF VALVE

1шт.

19

635785R1

SPACER

GUIDE, SPRING

1шт.

20

16014R1

BALL

CHECK

1шт.

21

380362R1

SEAT

RELIEF VALVE

1шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64 RELIEF VALVE

1шт.

23

666719R1

VALVE POPPET

POPPET, CHECK

2шт.

24

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 CHECK PLUG

1шт.

25

666722R1

PLUG

REAR CHECK

1шт.
