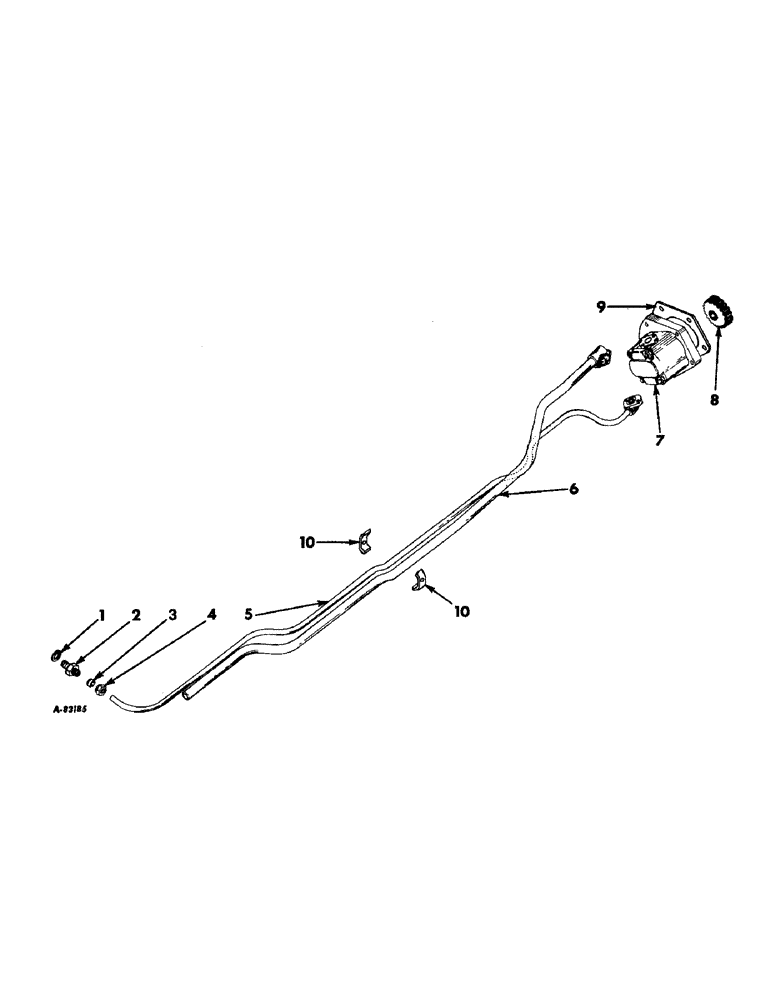

Запчасти Case IH B414 (129) - HYDRAULIC SYSTEM, HYDRAULIC LIFT ATTACHMENT, DRAFT CONTROL, PUMP, SUCTION & PRESSURE PIPES (07) - HYDRAULIC SYSTEM

1

704337R1

SEALING WASHER

WASHER, 1/2 IN. BSP SEALING

1шт.

2

704336R1

COUPLING, BREAK AWAY

COUPLING, 1/2 IN. O.D. x 1/2 IN. BSP PARALLEL MALE

1шт.

3

705519R1

RING

SEALING

1шт.

4

705520R1

NUT,0.69" Length

1шт.

5

3045509R21

PIPE

ASSY, PRESSURE

1шт.

6

3045508R21

PIPE

ASSY, SUCTION

1шт.

7

704330R94

HYDRAULIC PUMP

PUMP ASSY, HYDRAULIC (FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF HYDRAULIC PUMP)

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

8

704331R1

GEAR

PINION, HYDRAULIC PUMP

1шт.

9

703851R1

GASKET

PUMP MOUNTING

1шт.

10

706405R1

CLAMP

HYDRAULIC PIPE

2шт.

109084

NUT,1/4"-20, G5

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
