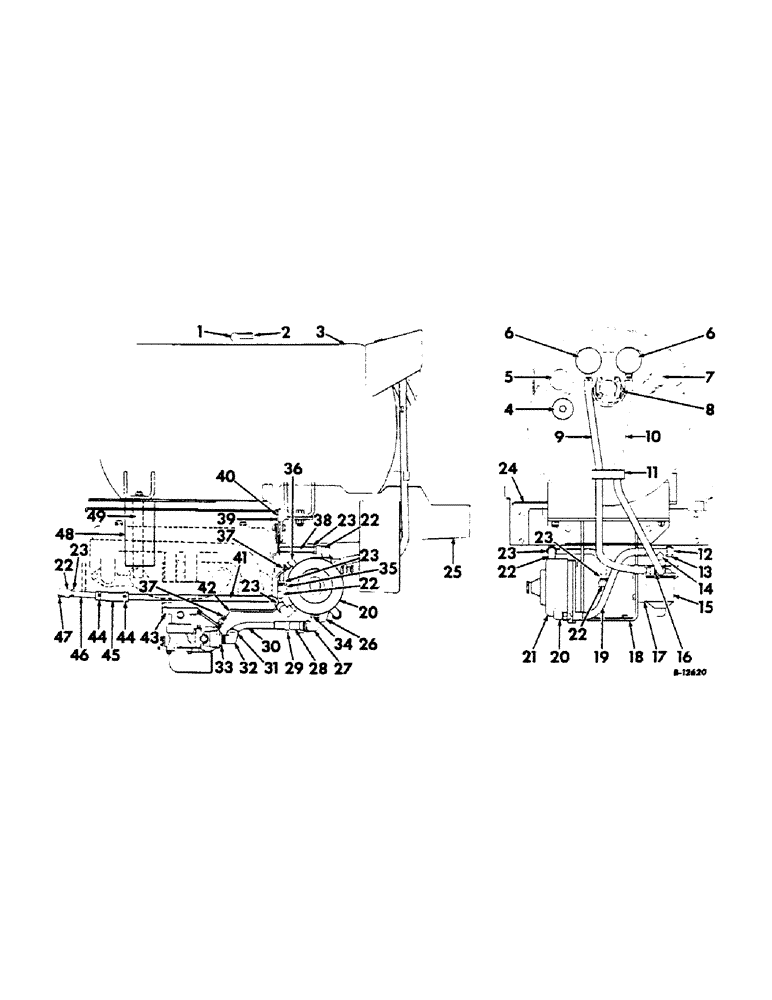

Запчасти Case IH 504 (055) - FUEL SYSTEM, FUEL TANK SUPPORTS AND PIPING, LP GAS ENGINE TRACTORS (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
363692R1
CAP, relief valve rain
1шт.
2
363690R91
VALVE, relief
1шт.
3
377898R91
TANK ASSY, fuel, Farmall tractors, composed of (1) cap 363692R1 (1) gauge 363693R91 (1) gauge 378464R91 (1) valve 109567R91 (2) valve 109850R91 (1) valve 363688R91 (1) valve 363690R91
1шт.
3
375824R91
TANK ASSY, fuel, International tractors, composed of (1) cap 363692R1 (1) gauge 363693R91 (1) gauge 371708R91 (1) valve 109567R91 (2) valve 109850R91 (1) valve 363688R91 (1) valve 363690R91
1шт.
18601R1
NUT,7/16"-20, GC
7/16-20 elastic stop
4шт.
80298R1
BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8
SCREW, 7/16-20 x 1-1/2 hex-hd cap
4шт.
369324R1
SPACER, fuel tank mounting
8шт.
4
363693R91
GAUGE W/PLATE, 369049R1, ring 369050R1 and stem 369048R91, fixed liquid level
1шт.
5
363688R91
VALVE ASSY, filler, for components see list of parts under details of fuel valves
1шт.
6
109850R91
VALVE W/EXCESS FLOW CHECK, service, for components see list of parts under details of fuel valves
2шт.
7
109567R91
VALVE W/EXCESS FLOW CHECK, service, for components see list of parts under details of fuel valves
1шт.
8
378464R91
GAUGE ASSY, liquid level magnetic, Farmall tractors
1шт.
8
371708R91
GAUGE ASSY, liquid level magnetic, International tractors
1шт.
225593
SCREW, 5/16-24 x 7/8 fil-hd cap, Rochester
4шт.
225594
SCREW
5/16-24 x 1 fil-hd cap, Taylor
4шт.
8
364263R1
GASKET, liquid level gauge, not illustrated
1шт.
8
369381R91
CHAMBER ASSY, dial, Rochester
1шт.
164314
SCREW, 6-32 x 1/4 C-Z pan-hd cr-rec tapping
2шт.
9
380052R91
HOSE ASSY, filter to vapor valve fuel, Farmall tractors
1шт.
9
380051R91
HOSE ASSY, filter to vapor valve fuel, International tractors
1шт.
10
380047R91
HOSE ASSY, filter to liquid valve fuel, Farmall tractors
1шт.
10
380051R91
HOSE ASSY, filter to liquid valve fuel, International tractors
1шт.
11
359511R1
CLAMP, fuel line
1шт.
179795
TILLAGE BLADE
SCREW, 1/4-20 x 3/4 hex-hd cap
1шт.
W6075
SPACER, fuel line clamp
1шт.
12
357495R1
CAP, fuel line tee
1шт.
13
357078R1
NUT, fuel line tee cap
1шт.
14
364602R1
TEE, right angle two-way flared tube
1шт.
15
346818R91
FILTER ASSY, fuel, for components see list of parts under details of fuel filter
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
16
364598R1
TEE, right angle two-way flared tube
1шт.
17
372346R1
BRACKET, fuel filter mounting
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
18
375817R91
BRACKET ASSY, fuel tank rear support
1шт.
102635
NUT,3/8"-16, G5
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
1шт.
179858
SUPPORT
SCREW, 7/16-14 x 1 hex-hd cap
4шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
19
380048R91
HOSE ASSY, fuel, Serial Range: filter-regulator
1шт.
20
109563R1
ELBOW
90 deg
1шт.
21
382904R91
REGULATOR ASSY, fuel, for components see list of parts under details of fuel regulator, Farmall series
1шт.
21
378319R92
REGULATOR ASSY, fuel, for components see list of parts under details of fuel regulator, International series
1шт.
9635082
NUT,5/16" - 18, Gr 5
3шт.
179820
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
3шт.
22
40876D
ELBOW, 1/2 x 90 deg 90º x 3/8" NPT x 11/16"-16
4шт.
23
19987R1
NUT
11/16-16 hi-duty tube fitting
4шт.
24
375822R1
SHIELD, heat LH
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
179812
GEAR
SCREW, 5/16-18 x 1/2 hex-hd cap
5шт.
24
375818R11
SHIELD ASSY, heat RH
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
179814
SPACER
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
1шт.
25
377868R91
SUPPORT ASSY, fuel tank and cowl rear, Farmall tractors
1шт.
131-883
SPRING NUT,Rtnr, 5/16" - 18
5/16 floating cage
6шт.
102635
NUT,3/8"-16, G5
4шт.
179833
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd
2шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
2шт.
25
376880R91
SUPPORT ASSY, fuel tank and cowl rear, International tractors
1шт.
131-883
SPRING NUT,Rtnr, 5/16" - 18
5/16 floating cage
6шт.
179856
BOLT,Hex, 7/16" - 14 x 3/4", Gr 5
SCREW, 7/16-14 x 3/4 hex-hd cap
4шт.
26
375714R11
BRACKET ASSY, fuel regulator mounting
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
27
864456R1
NIPPLE, LUBE
ELBOW, fuel line hose, regulator end
1шт.
28
380451R1
HOSE, fuel line, Serial Range: regulator-carburetor
1шт.
29
274085R91
HOSE CLAMP,#10, 0.56/1.06 Type F Worm
CLAMP, fuel line hose
2шт.
30
380449R11
PIPE W/NUT, fuel
1шт.
31
222-507
TUBE NUT,7/8"-18
NUT, coupling, 5/8
1шт.
32
56445D
ELBOW,90 Degree x 1/2" NPT x 7/8"-18
5/8 x 90 deg
1шт.
33
380459R1
BUSHING, reducing, carburetor end
1шт.
34
221-89
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING, reducing, regulator end
1шт.
35
380452R1
ELBOW
regulator to balance line
1шт.
36
32468H
ELBOW,90 Degree x 1/8" NPT x 3/8"-24
regulator to carburetor idle line, 3/16 x 90 deg
1шт.
37
19983R1
NUT, coupling, 3/16
2шт.
38
375720R11
PIPE W/NUTS, regulator to cylinder water
1шт.
39
375819R91
BRACKET ASSY, cowl front support
1шт.
40
377869R1
EXTENSION, cowl front support bracket, Farmall tractors
4шт.
102635
NUT,3/8"-16, G5
2шт.
179833
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd
4шт.
371658
SPACER, cowl front support
2шт.
41
372276R11
PIPE W/NUT, water pump to regulator end
1шт.
42
377644R11
PIPE W/NUTS ASSY, idle
1шт.
43
377641R93
CARBURETOR ASSY, for components see list of parts under details of carburetor
1шт.
103026
NUT,3/8"-24, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
44
251227R91
CLAMP
water line hose
2шт.
45
357487R1
HOSE, water line
1шт.
46
375721R11
PIPE W/NUT, water pump to regulator, water pump end
1шт.
47
444002
ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male
water pump pipe, 3/8
1шт.
48
375776R1
SUPPORT, fuel tank front LH
1шт.
49
375823R1
SUPPORT, fuel tank front RH
1шт.
NLS
NO LONGER SERVICED
2шт.
41116D
KEY
SPACER, support
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Выбрано товаров: 101
