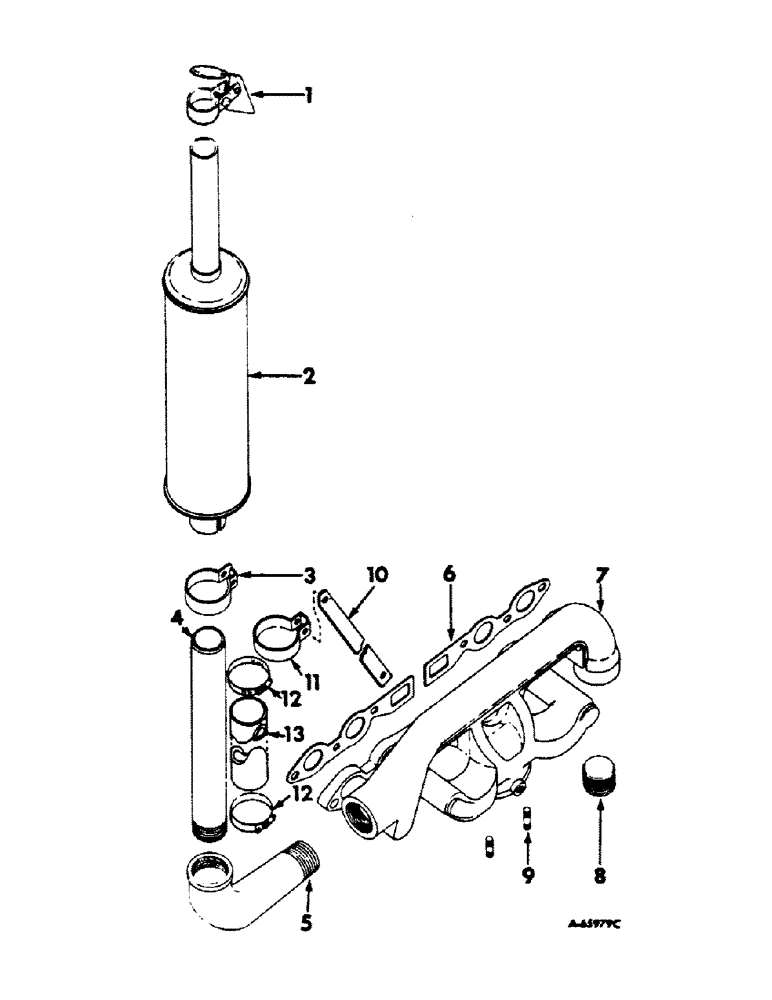

Запчасти Case IH 504 (022) - CARBURETED ENGINE, EXHAUST SYSTEM, TRACTORS WITH VERTICAL EXHAUST (01) - ENGINE

1

381799R91

CAP

ASSY, exhaust, Farmall tractors

1шт.

2

381665R92

MUFFLER

exhaust

1шт.

2

403825R1GV

MUFFLER

Value, Muffler

1шт.

3

48889DA

CLAMP

exhaust muffler

1шт.

93082H

NUT

exhaust pipe clamp

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

4

369807R1

PIPE

exhaust, Farmall tractors

1шт.

5

377947R1

ELBOW

exhaust manifold outlet, Farmall tractors

1шт.

5

377200R1

ELBOW

exhaust manifold outlet, International tractors

1шт.

178736

BELT, TRANSMISSION

PIN, 5/32 x 3/4 type #3 groove

2шт.

6

352014R3

GASKET

intake & exhaust manifold

2шт.

7

377179R11

MANIFOLD

W/PLUG, intake & exhaust, gasoline engine tractors

1шт.

7

377181R11

MANIFOLD W/PLUG, intake & exhaust, LP gas tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto. sq-hd pipe

1шт.

8

20976R1

PLUG

1-1/2 auto, sq-soc-hd pipe

1шт.

9

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

393457R1

BRACE, exhaust pipe, Farmall tractors with serial no. 13230 & above, International tractors with serial no. 13844 & above

1шт.

11

372102R1

CLAMP, exhaust pipe brace, Farmall tractors with serial no. 13230 & above, International tractors with serial no. 13844 & above

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, exhaust pipe, Farmall LP gas engine tractors

2шт.

13

375561R2

SLEEVE

exhaust pipe asbestos, Farmall LP gas engine tractors

1шт.
