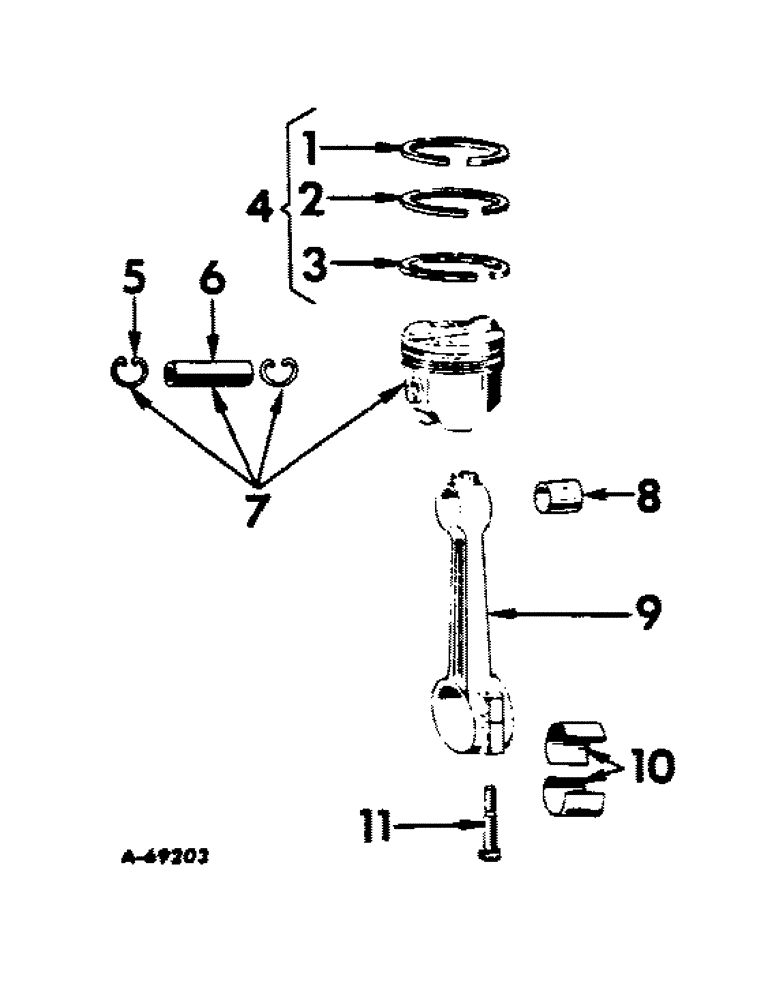

Запчасти Case IH 504 (020) - CARBURETED ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE

1

359657R1

OIL SEAL

RING, compression piston chrome, top or first groove, std and .010 O/S

4шт.

1

375814R1

RING, compression piston chrome, top or first groove, .020 O/S

4шт.

1

378262R1

RING, compression piston chrome, top or first groove, .030 O/S

4шт.

1

375842R1

RING, compression piston chrome, top or first groove, .040 O/S

4шт.

2

375810R1

OIL SEAL

RING, compression, second groove, std and .020

4шт.

2

375815R1

OIL SEAL

RING, compression, second groove, .020 O/S

4шт.

2

378263R1

OIL SEAL

RING, compression, second groove, .030 O/S

4шт.

2

375843R1

RING, compression, second groove, .040 O/S

4шт.

3

388351R91

OIL SEAL

RING, oil regulating piston, third or bottom groove, std and .010

4шт.

3

388352R91

OIL SEAL

RING, oil regulating piston, third or bottom groove, .020 O/S

4шт.

3

388352R91

OIL SEAL

RING, oil regulating piston, third or bottom groove, .030 O/S

4шт.

3

388353R91

RING, oil regulating piston, third or bottom groove, .040 O/S

4шт.

4

375845R92

RING

SET, piston, consists of eight compression & four oil regulating rings, std and .020 O/S

1шт.

4

375846R92

KIT

RING SET, piston, consists of eight compression & four oil regulating rings, .020 O/S

1шт.

4

378267R92

KIT

RING SET, piston, consists of eight compression & four oil regulating rings, .030 O/S

1шт.

4

375847R92

PISTON RING SET

RING SET, piston, consists of eight compression & four oil regulating rings, .040 O/S

1шт.

5

367798R1

RING, PISTON

pin retaining

8шт.

6

367797R1

PIN,21.83mm OD x 69.93mm L

piston, std

4шт.

6

367862R1

PIN

piston, .005 O/S

4шт.

7

378183R92

PISTON

ASSY, std

4шт.

7

378186R92

PISTON

ASSY, .010 O/S

4шт.

7

378184R92

PISTON

ASSY, .020 O/S

4шт.

7

378189R92

PISTON

ASSY, .030 O/S

4шт.

7

378185R92

PISTON

ASSY, .040 O/S

4шт.

7

378261R92

PISTON

ASSY, high altitude, std

4шт.

7

378260R92

PISTON

ASSY, high altitude, .010 O/S

4шт.

7

378264R92

PISTON

ASSY, high altitude, .020 O/S

4шт.

7

378265R92

PISTON

ASSY, high altitude, .030 O/S

4шт.

7

378266R92

PISTON

ASSY, high altitude, .040 O/S

4шт.

8

367775R1

BUSHING,21.36mm ID x 23.36mm OD x 29.97mm L

connecting rod

4шт.

9

396976R11

ROD

W/TWO BOLTS, 375732R1 & bushing 367775R1, connecting

4шт.

10

375723R11

BEARING LINER

BEARING ASSY, connecting rod, 2 halves, std

4шт.

10

375725R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

4шт.

10

376656R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .010 U/S

4шт.

10

376658R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .020 U/S

4шт.

10

375724R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .030 U/S

4шт.

10

375730R11

BEARING SET, connecting rod, std, consists of four bearing 375723R11

1шт.

10

377273R91

SET

BEARING SET, connecting rod, .002 U/S, consists of four bearings 375725R11

1шт.

10

376655R91

BEARING SET

connecting rod, .010 U/S, consists of four bearings 376656R11

1шт.

10

376657R91

BEARING SET

connecting rod, .020 U/S, consists of four bearings 376658R11

1шт.

10

375731R91

BEARING SET

connecting rod, .030 U/S, consists of four bearings 375524R11

1шт.

11

375732R1

BOLT,Hex, 3/8" - 24 x 2"

connecting rod

8шт.
