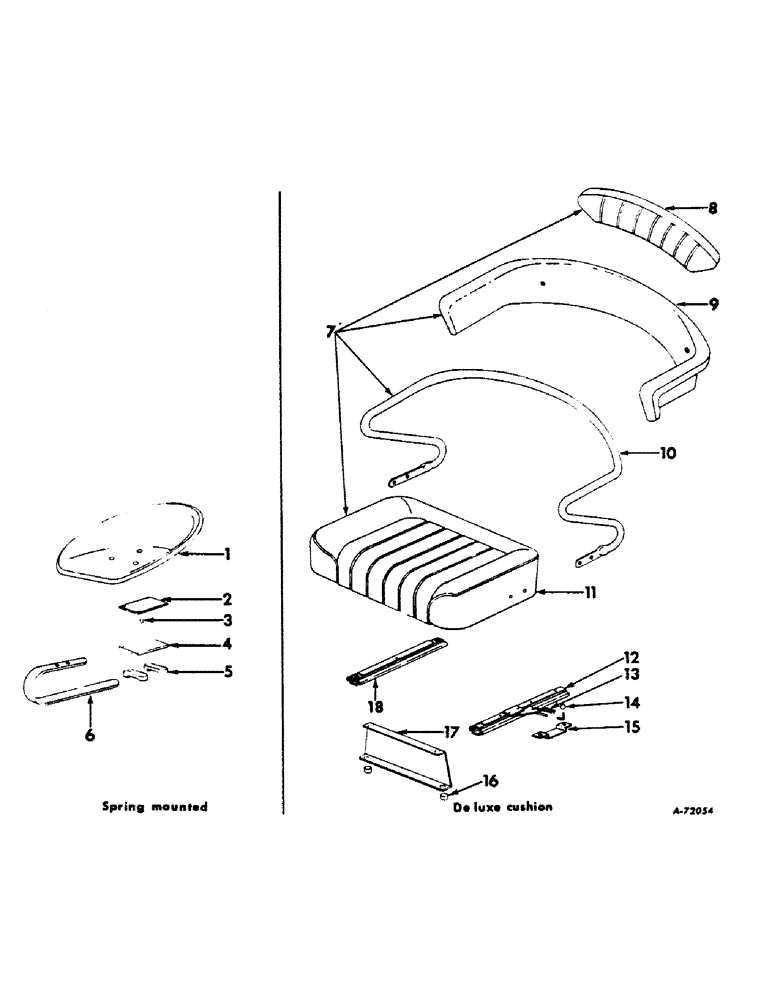

Запчасти Case IH 504 (262) - SEATS AND SUPPORTS, INTERNATIONAL TRACTORS Seat & Supports

1

351880R92

SEAT

ASSY, plain

1шт.

1

357518R92

SEAT

ASSY, deluxe upholstered

1шт.

2

373542R1

BRACKET, seat adjustment upper

1шт.

3

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel, lower bracket

1шт.

4

373542R1

BRACKET W/PIN, 141236, seat adjustment lower

1шт.

181397

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 5

SCREW, 7/16-20 x 1-1/4 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

375999R1

CLAMP, seat adjustment

2шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

Front clamp Hex, 5/16"-18 x 1 1/2", G5

2шт.

243119R1

BOLT

SCREW, 5/16-18 x 1 hex-hd cap, rear clamp

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

378103R1

SPRING, seat

1шт.

7

376903R92

SEAT ASSY, deluxe cushion

1шт.

8

380684R92

CUSHION

ASSY, back

1шт.

9

380682R1

SUPPORT

back

1шт.

19905R1

SCREW, 1/4-20 x 7/8 cd-pltd cr-rec-truss-hd mach

5шт.

380683R1

WASHER, spring

5шт.

10

380681R1

SUPPORT

tubular back

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

380680R92

CUSHION

ASSY, seat

1шт.

407040R1

COVER

seat cushion

1шт.

12

379066R91

RAIL W/SPRING, LH

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, 5/16-18 x 1-1/4 cr-rec-fil-hd C-Z mach

2шт.

374237R1

BOLT,12 Pt, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 twelve pt cap

2шт.

380470R1

WASHER, 5/16 light lock

4шт.

13

96775R1

SPRING

adjuster

1шт.

14

148689R1

KNOB

seat adjuster

1шт.

15

371630R1

GUIDE, handle

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga, as required

1шт.

16

392664R1

SPACER, seat support front

2шт.

17

376904R11

SUPPORT ASSY, seat front

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, 7/16-14 x 3-1/2 hex-hd cap

2шт.

18

379067R91

RAIL ASSY, RH

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, 5/16-18 x 1 cr-rec-fil-hd C-Z mach

2шт.

374237R1

BOLT,12 Pt, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 twelve pt cap

2шт.

380470R1

WASHER, 5/16 light lock

4шт.

351438R93

PAD

detachable seat, rubber

1шт.

359483R91

PAD

detachable seat, jute

1шт.
