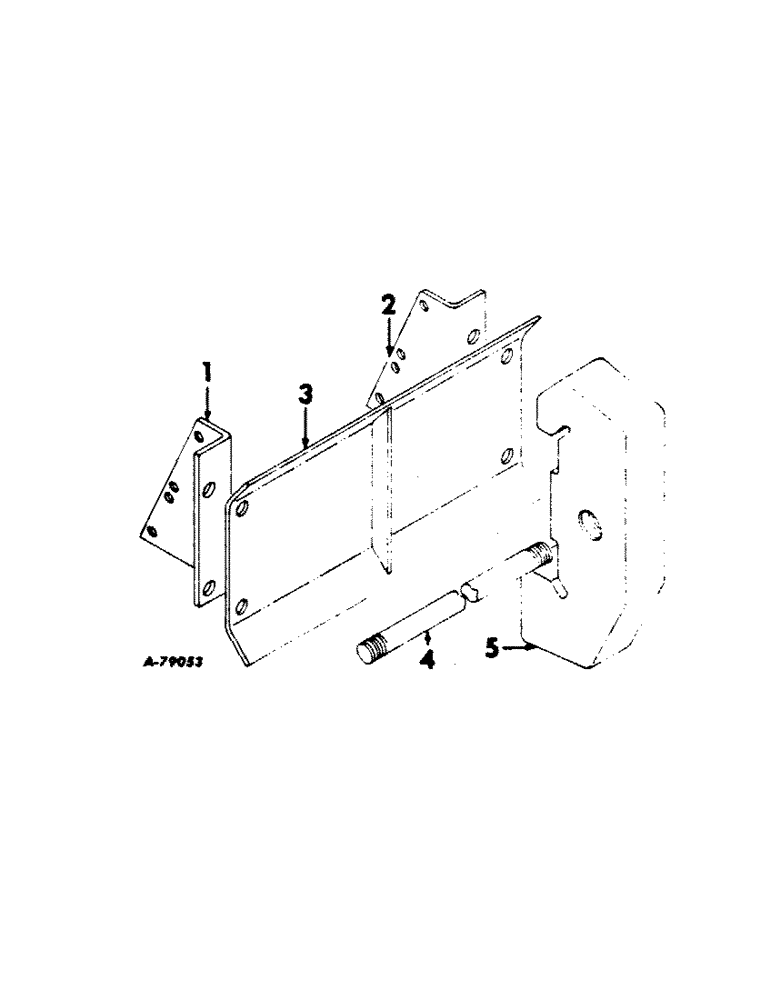

Запчасти Case IH 504 (275[A]) - MISCELLANEOUS EQUIPMENT, FRONT END WEIGHT BRACKET AND WEIGHTS, INTERNATIONAL TRACTORS WITH BACKHOE Miscellaneous Equipment

1

385534R1

BRACKET, front end weight RH, not included in front end weight attachment

1шт.

2

385533R1

BRACKET, front end weight LH, not included in front end weight attachment

1шт.

220081

NUT

3/4-10 hex, not included in front end weight attachment

4шт.

3

381214R11

PLATE, front weight mounting

1шт.

271605

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5

SCREW, 3/4-10 x 1-1/4 hex-hd cap

4шт.

4

381217R1

SHAFT, front weight cross tie

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

427691

NUT

7/8-9 C-Z sq

1шт.

5

381216R1

WEIGHT

front end

8шт.

19628R91

NIPPLE, LUBE

FITTING, 1/8-27 taper drive thread lub, front axle pivot pin

1шт.
