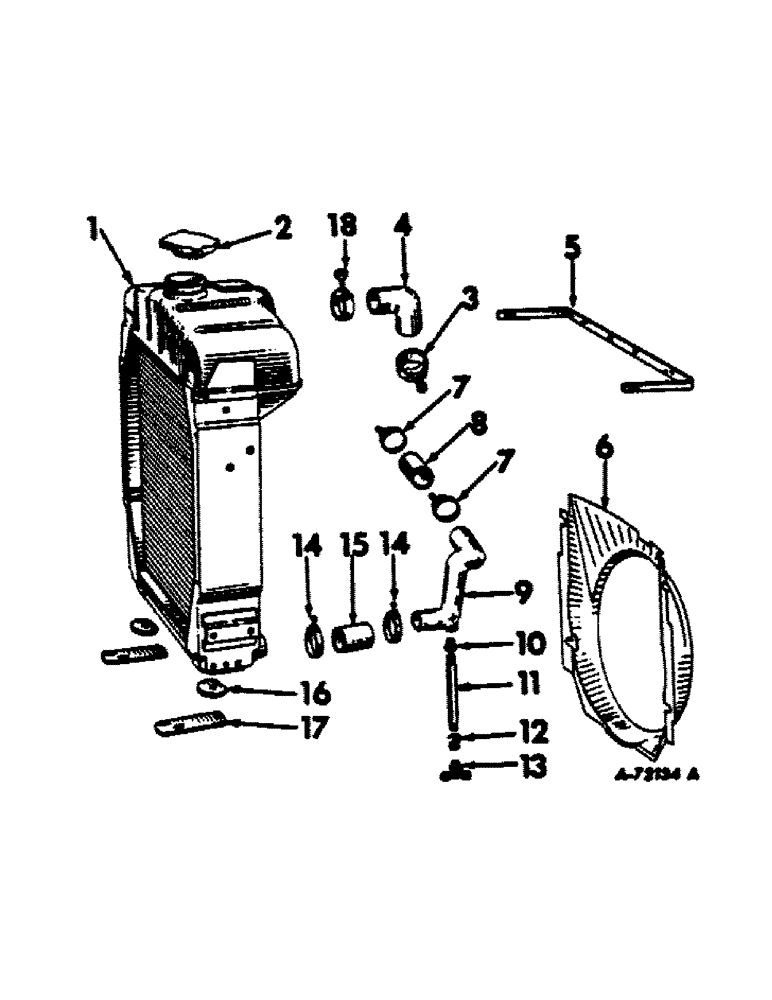

Запчасти Case IH 504 (070) - COOLING SYSTEM, RADIATOR AND CONNECTIONS, INTERNATIONAL TRACTORS COOLING SYSTEM

1

377092R92

RADIATOR ASSY, carbureted engine tractors

1шт.

1

382289R92

RADIATOR ASSY, diesel engine tractors

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16-14 x 1-1/4 sq-nk crg

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 elastic stop

2шт.

2

393229R91

CAP

radiator pressure

1шт.

3

39205H

CLAMP

radiator inlet hose lower

1шт.

4

375172R1

RADIATOR HOSE,2.00" ID x 5.60", SAE 20R4, CLASS R, GRADE 1

Inlet 2.00" ID x 5.60", SAE 20R4, CLASS R, GRADE 1

1шт.

5

377098R1

BRACE, radiator

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

6

377448R1

HOUSING, fan, carbureted engine tractors

1шт.

6

382290R1

HOUSING, fan, diesel engine tractors

1шт.

109084

NUT,1/4"-20, G5

4шт.

13556R1

BOLT,Sq Hd, 1/4" - 20

1/4-20 x 5/8 sq-hd mach

4шт.

7

39142H

COLLAR CLAMP

CLAMP, water pump inlet hose, carbureted engine tractors

2шт.

7

39205H

CLAMP

water pump inlet hose, diesel engine tractors

2шт.

8

377146R1

RADIATOR HOSE,1.38" ID x 3.00"

Water pump, Carbureted engine tractors 1.38" ID x 3.00"

1шт.

8

375546R1

RADIATOR HOSE,2.00" ID x 2.25"

Water pump inlet, Diesel engine tractors 2.00" ID x 2.25"

1шт.

9

369091R1

ELBOW, radiator outlet, carbureted engine tractors

1шт.

9

375075R2

ELBOW, radiator outlet, diesel engine tractors

1шт.

103867

PLUG

3/8 std pipe

1шт.

10

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

BUSHING, 3/8 to 1/4 reducing, diesel engine tractors

1шт.

11

221-1166

NIPPLE, LUBE

NIPPLE, 3/8 x 3 std pipe, radiator drain, carbureted engine tractors

1шт.

12

111644

COUPLING

3/8 x 1/4 reducing, carbureted engine tractors

1шт.

13

144569

COCK, DRAIN

COCK, 1/4 drain, radiator

1шт.

14

39149H

HOSE CLAMP

CLAMP, radiator outlet hose

2шт.

15

48827DA

FLEXIBLE HOSE,1.50" ID x 2.50"

RADIATOR HOSE, , Outlet 1.50" ID x 2.50"

1шт.

16

18464DA

GASKET

PAD, radiator mounting

2шт.

17

369087R1

BRACKET, radiator mounting

2шт.

NLS

NO LONGER SERVICED

4шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .080 ga

4шт.

18

81448H

EXCITER

CLAMP, inlet hose upper

1шт.
