Запчасти Case IH 504 (207) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, INTL TRACTOR W/28" REAR WHEELS OR 24" DISC TYPE REAR WHEELS (11) - WHEELS

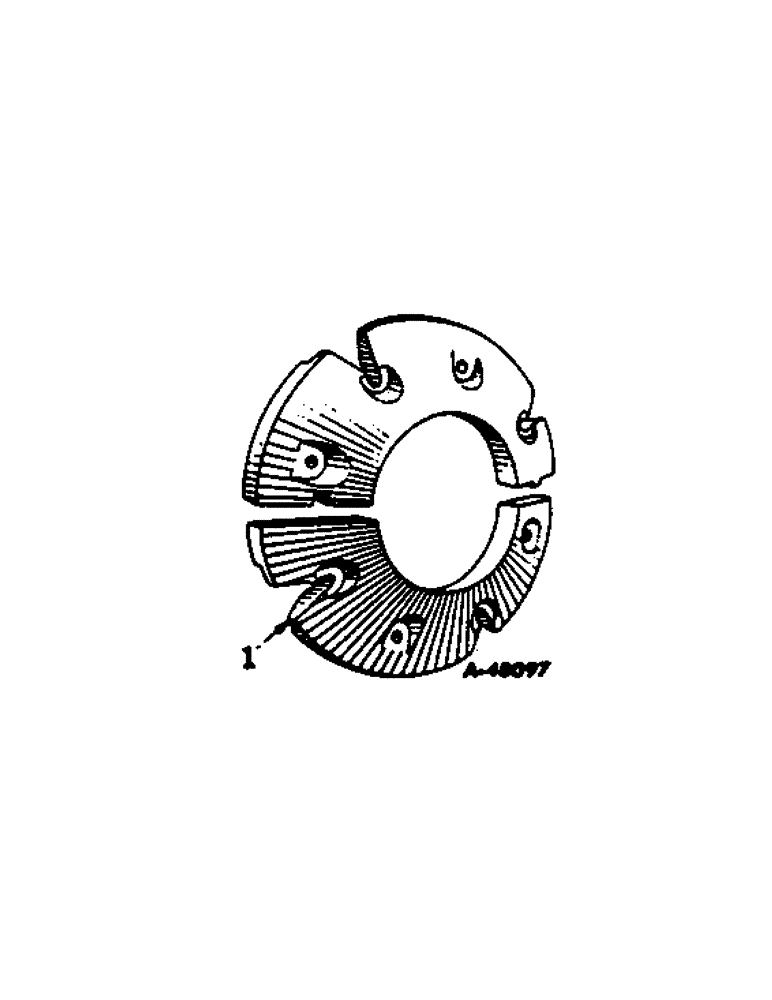

Схема запчастей Case IH 504 - (207) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, INTL TRACTOR W/28" REAR WHEELS OR 24" DISC TYPE REAR WHEELS (11) - WHEELS
1

Артикул

Название

Примечание

Количество

1

365321R2

WEIGHT

rear wheel, half, approx. 65 lbs, 4 for first set

1шт.

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

rear wheel weight

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex, jam

8шт.

124574

WASHER, 5/8 C-Z med lock

16шт.

1

365321R2

WEIGHT

rear wheel, half, approx. 65 lbs, 4 for second set

1шт.

365332R2

SQUARE BOLT

BOLT, rear wheel weight

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

8шт.

124847

COLLAR

5/8-11 C-Z hex, jam

8шт.

124574

WASHER, 5/8 C-Z med lock

8шт.

Выбрано товаров: 10
