Запчасти Case IH 504 (204) - WHEELS, REAR WHEELS AND DUAL REAR WHEEL SPACER, INTERNATIONAL TRACTORS (11) - WHEELS

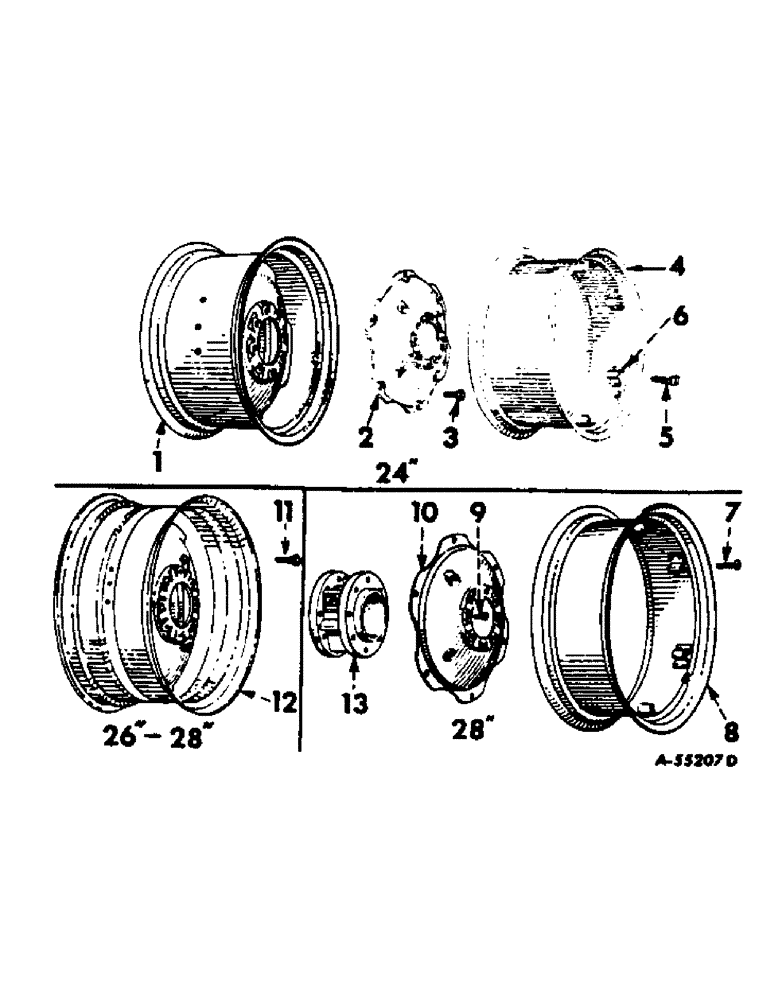

Схема запчастей Case IH 504 - (204) - WHEELS, REAR WHEELS AND DUAL REAR WHEEL SPACER, INTERNATIONAL TRACTORS (11) - WHEELS
13
6
11
3
1
9
8
12
4
2
7
10
5

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Service parts for tractors equipped with single rear wheels, consists of all unmarked parts and those marked unit A

1шт.

NSS

NOT SOLD SEPARAT

Service parts for tractors equipped with dual rear wheels, consists of all unmarked parts and those marked unit B

1шт.

1

364346R92

WHEEL

rear, for 56 inch and 68 inch tread setting, one piece disc type, W12-24 rim for 13.6/12-24, 14.9/13-24 or 16.9/14-24 tire, 2 for unit A

1шт.

1

365480R91

WHEEL

rear, one piece disc type, W16-24 rim for 16.9/14-24 tire, 2 for unit A

1шт.

1

376196R91

WHEEL

rear, for 60 inch and 64 inch tread setting, W12-24 rim for 13.6/12-24, 14.9/13-24 or 16.9/14-24 tire, 2 for unit A

1шт.

1

387066R91

WHEEL, rear, for 56 to 68 in. tread setting, one piece disc type, W12-24 rim for 14.9/24 or 16.9/24 tire, heavy duty, 2 for unit A, Serial Range: 7892-11683

1шт.

1

392001R91

WHEEL, rear, for 56 to 68 in. tread setting, one piece disc type, W12-24 rim for 14.9-24 of 16.9-24 tire, heavy duty, 2 for unit A, 11684 up

1шт.

2

374806R1

DISC, WHEEL

DISC, rear wheel, 2 for unit A

1шт.

3

522067R1

BOLT

rear wheel mounting, 16 for unit A

1шт.

124634

NUT,9/16"-18, G5

16шт.

4

374808R91

SPARE PART

RIM ASSY, rear wheel, W12-24 rim for 13.6/12-24, 14.9/13-24 or 16.9/14-24 tire, 2 for unit A

1шт.

4

374809R91

RIM ASSY, rear wheel, W16-24 for 16.9/14-24 tire, 2 for unit A

1шт.

5

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 12 for unit A

1шт.

352777R1

NUT

5/8-11 cd-pltd hex

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga cd-pltd

12шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

7

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 12 for unit A

1шт.

352777R1

NUT

5/8-11 cd-pltd hex

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 15/16 x 13 ga

12шт.

8

361700R91

RIM

ASSY, rear wheel, W10-28 rim for 12.4/11-28 tire, 2 for unit A, 4 for unit B

1шт.

8

363988R91

RIM

ASSY, rear wheel, W12-28 rim for 13.6/12-28 or 14.9/13-28 tire, 2 for unit A

1шт.

8

373508R91

RIM ASSY, rear wheel, W14-28 rim for 16.9/14-28 tire, 2 for unit A

1шт.

9

522067R1

BOLT

rear wheel mounting, 16 for unit A

1шт.

9

364895R1

BOLT,9/16" - 18 x 1.59"

rear wheel mounting, 16 for unit B

1шт.

10

361724R1

WHEEL DISC

DISC, rear wheel, 2 for unit A, 4 for unit B

1шт.

11

375143R1

BOLT,Hex, 3/16" - 18 x 1.92" Thd L

rear wheel mounting, for 26 inch rear wheels, 16 for unit A

1шт.

11

522067R1

BOLT

rear wheel mounting, for 28 inch rear wheels, 16 for unit A

1шт.

124634

NUT,9/16"-18, G5

16 for unit A 9/16"-18, G5

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, , 16 for unit A 9/16"

1шт.

12

375141R91

WHEEL, rear, one piece disc type DW16-26 rim for 16.9/14-26 or 2 for unit A

1шт.

12

375142R91

WHEEL, rear, one piece disc type DW18-26 rim for 18.4/15-26 tire, 2 for unit A

1шт.

12

376197R91

WHEEL ASSY.

WHEEL, rear, W12-28 rim for 13.6/12-28 or 14.9/13-28 tire, 2 for unit A

1шт.

13

367865R1

SPACER, dual rear wheel, 2 for unit B

1шт.

181457

BOLT,Hex, 9/16" - 18 x 1 3/4"

SCREW, 9/16-18 x 1-3/4 hex-hd cap 18.4/15/26 tire, 2 for unit A

16шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

16шт.

367864R91

PARTS ACCESSORY, dual wheel spacer, unit B

1шт.

For use permitting dual rear wheels to be moved out 4 inches on each side when particular type of power loaders are mounted on the tractors.

1шт.

364894R91

PACKAGE, dual real wheel mounting bolt, unit B, for tractors with W10-28 rims, consists of 16 bolts 364895R1 and two studs 364896R1

1шт.

364896R1

STUD, rear wheel mounting, used to locate the wheel disc on the hub

2шт.

383697R1

PLUG

valve hole

1шт.

Выбрано товаров: 42
