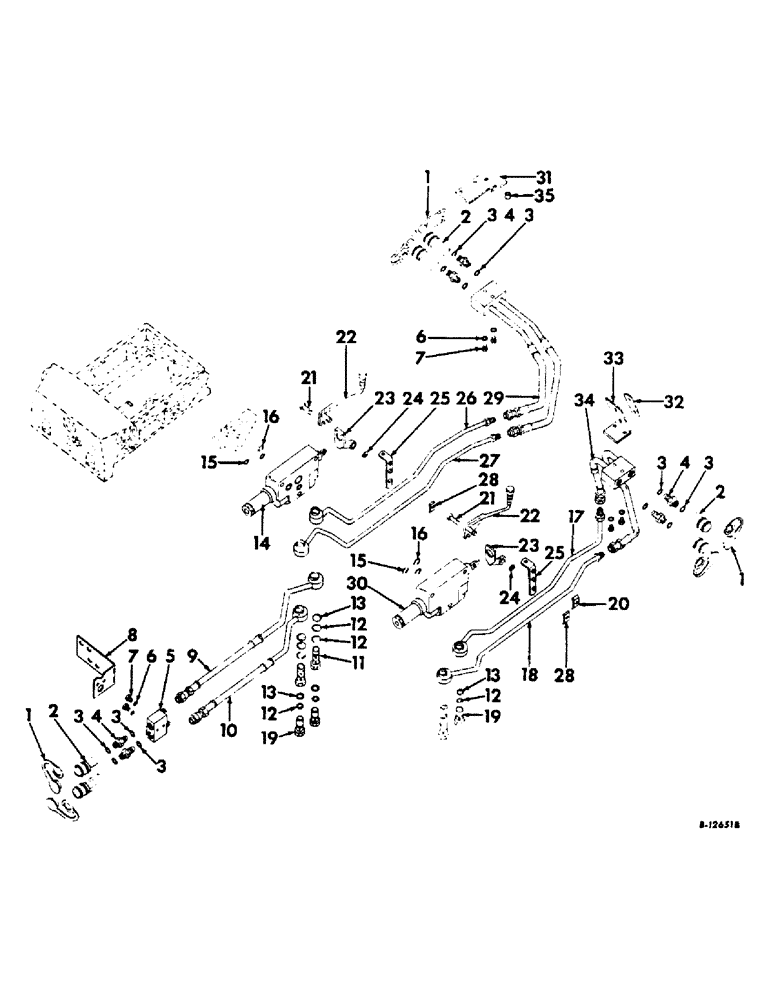

Запчасти Case IH 504 (237) - HYDRAULIC SYSTEM, AUXILIARY VALVES AND MANIFOLD TUBES, INTERNATIONAL TRACTORS (07) - HYDRAULIC SYSTEM

378018R92

PARTS ACCESSORY, single auxiliary valve, consists of all parts marked unit A

1шт.

When parts accessory 378018R92 or 378022R92 is applied on tractors 501 to 3450, the following parts must also be ordered (1) o-ring 364879R1 (1) o-ring 383219R1 (1) valve 386031R91 (1) washer 378985R2.

1шт.

378022R92

PARTS ACCESSORY, double auxiliary valve, consists of all parts marked unit B

1шт.

When parts accessory 378018R92 or 378022R92 is applied on tractors 501 to 3450, the following parts must also be ordered (1) o-ring 364879R1 (1) o-ring 383219R1 (1) valve 386031R91 (1) washer 378985R2.

1шт.

382153R93

PARTS ACCESSORY, LH front and rear manifold, tractors equipped with single or double auxiliary valve, consists of all parts marked unit C

1шт.

382152R91

PARTS ACCESSORY, RH front manifold, tractors equipped with double auxiliary valve, consists of all parts marked unit D

1шт.

378298R92

MANIFOLD

PARTS ACCESSORY, rear manifold, tractors equipped with single or double auxiliary valves, consists of all parts marked unit E

1шт.

1

373220R1

PLUG

CAP, self-sealing coupling dust, 4 for unit C, 2 for units D & E

1шт.

2

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female, only serviceable item is O-ring 385713R1, 2 for units D & E, 4 for unit C

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, self-sealing coupling connector, 8 for unit C, 4 for units D & E

1шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, self-sealing coupling, 4 for unit C, 2 for units D & E

1шт.

5

381136R91

BLOCK

ASSY, rear junction, units C & E

1шт.

103026

NUT,3/8"-24, G5

2шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Junction block plug, 4 for unit C, 2 for units D & E

1шт.

7

9410356

PLUG

junction block, 4 for unit C, 2 for units D & E

1шт.

8

378313R1

BRACKET, rear manifold, units C & E

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

2шт.

9

381316R91

MANIFOLD

ASSY, rear drop, units C & E

1шт.

10

381317R91

TUBE ASSY.

MANIFOLD ASSY, rear lift, units C & E

1шт.

11

378256R1

BOLT,Hex, 7/8" - 14 x 2.71"

PLUG, inlet union long, 2 for unit C

1шт.

12

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, inlet union plug seal, 4 for unit C, 2 for units D & E

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, inlet union plug, 2 for units C, D & E

1шт.

14

383267R92

VALVE

ASSY, hydraulic control, unit B, inner position, for components see list of parts under details of hydraulic control valve

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

control valve plug

2шт.

9410360

PLUG

control valve

2шт.

20647R1

BOLT (SPREADER),1/4" x 1/2", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap, 3 for unit B, serial no. 14035 & above

1шт.

20160R1

BOLT,3/8" x 6 7/8", Gr 8

SCREW, 3/8-16 x 6-7/8 hex-hd cap, 3 for unit B, up to serial no. 14034

1шт.

15

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, control valve small, 2 for unit A, 4 for unit B

1шт.

16

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, control valve large, unit A, 2 for unit B

1шт.

17

381935R91

TUBE ASSY, RH rear port, unit D, Serial Range: 501-1330

1шт.

17

470918R92

TUBE ASSY, RH rear port, unit D, 1331 up

1шт.

18

381936R91

TUBE ASSY, RH front port, unit D

1шт.

19

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, inlet union short, 2 for units D & E

1шт.

20

384972R1

CLAMP, manifold, unit D

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

21

J547M

PIN

1/2 x 1-7/16 headed, unit A, 2 for unit B

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, split (Cotter), 3/16" x 1-1/4", unit A, 2 for unit B

1шт.

22

381685R21

HANDLE

LEVER W/PIN, 381140R1, valve actuating

1шт.

381140R1

PIN, lever pivot, unit A, 2 for unit B

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095, unit A, 2 for unit B

1шт.

23

378029R1

BRACKET

valve lever, unit A, 2 for unit B

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2 for unit A, 4 for unit B Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , 2 for unit A, 4 for unit B 5/16"

1шт.

24

370290R1

SNAP RING,#50, .392" Dia, E-Type

RING, retaining, , units A & D; 2 for unit B #50, .392" Dia, E-Type

1шт.

25

383501R11

BRACKET ASSY, front tube, units C & D

1шт.

26

381937R91

TUBE ASSY, hydraulic LH rear port, unit C

1шт.

27

381938R91

TUBE ASSY, hydraulic LH front port, unit C

1шт.

28

369758R1

CLAMP

tube, units C & D

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

29

385083R91

MANIFOLD ASSY, LH front, unit C

1шт.

30

383267R92

VALVE

ASSY, hydraulic control, outer position, units A & B, serial no. 14034 & below, for components see list of parts under details of hydraulic control valve

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

9410360

PLUG

control valve

2шт.

20158R1

SCREW

3/8-16 x 4-7/8 hex-hd cap

3шт.

30

390826R92

VALVE

ASSY, hydraulic control, outer position, units A & B, serial no. 14035 & above, for components see list of parts under details of hydraulic control valve

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

9410360

PLUG

control valve

2шт.

20845R1

BOLT,3/8" x 4 3/8", Gr 8

SCREW, 3/8-16 x 4-3/8 hex-hd cap

3шт.

31

381993R1

BRACKET, LH junction block, unit C

1шт.

103026

NUT,3/8"-24, G5

2шт.

NLS

NO LONGER SERVICED

2шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

31

385080R1

BRACKET, LH junction block, unit C, used with 385083R91

1шт.

103026

NUT,3/8"-24, G5

1шт.

NLS

NO LONGER SERVICED

1шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 hex-hd cap

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

32

381989R1

CLIP, RH junction block bracket, unit D

1шт.

33

381944R1

BRACKET, RH junction block, unit D

1шт.

103026

NUT,3/8"-24, G5

4шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, 3/8-24 x 1-1/4 hex-hd cap

2шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

381940R91

MANIFOLD ASSY, RH front, unit D, Serial Range: 501-1330

1шт.

34

470917R91

MANIFOLD ASSY, RH front, unit D, 1331 up

1шт.

35

371108R1

SPACER,3/8" Pipe x .844"

junction block bracket, unit C

1шт.
