Запчасти Case IH 504 (138[A]) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH, INTERNATIONAL TRACTORS (06) - ELECTRICAL SYSTEMS

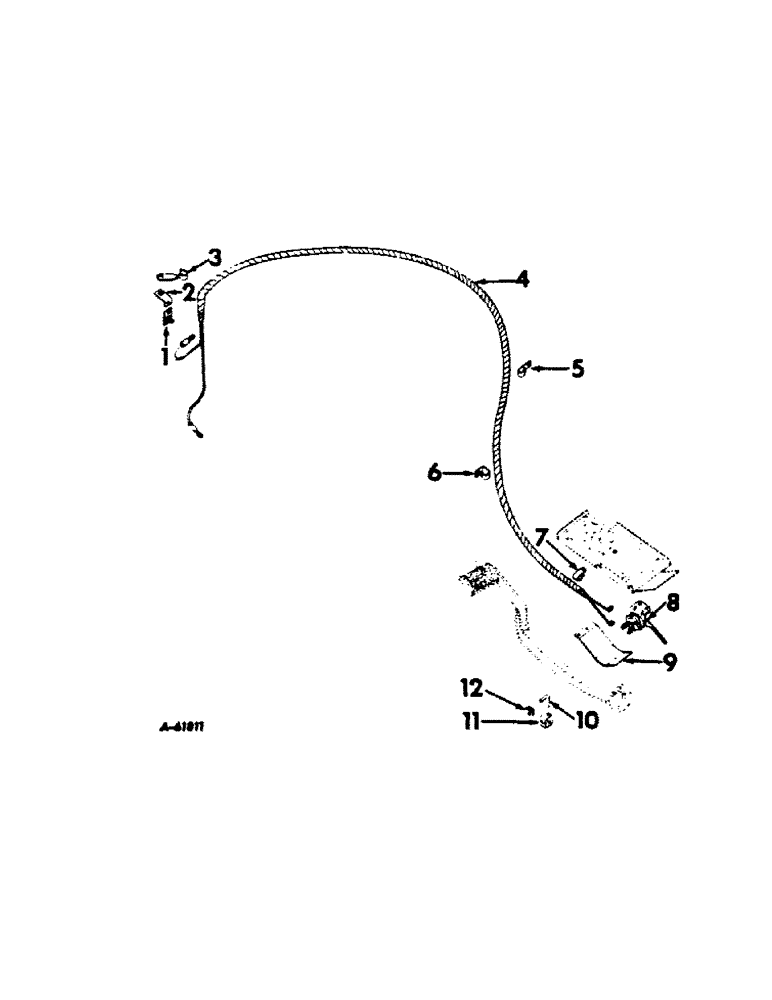

Схема запчастей Case IH 504 - (138[A]) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH, INTERNATIONAL TRACTORS (06) - ELECTRICAL SYSTEMS
5
8
3
9
1
4
6
2
12
10
7
11

Артикул

Название

Примечание

Количество

379345R91

PARTS ACCESSOR, safety starting switch, Serial Range: -19200

1шт.

1

42915D

BLOCK

junction

1шт.

110633

NUT,#10-24

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

10-24 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

42916D

BRACKET, junction block

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

370740R1

CLAMP

CLIP, cable harness, on fuel tank support LH rear mounting bolt

1шт.

4

375478R91

HARNESS ASSY, safety starting switch cable

1шт.

5

355097R1

CLIP, cable harness, on clutch housing top cover first LH mounting bolt

1шт.

6

359526R1

CLIP, cable harness, on upper mounting bolt of torque amplifier lever ratchet

1шт.

7

358431R1

CLIP, cable harness, on under side of platform LH rear mounting bolt

1шт.

8

375477R91

SWITCH

ASSY, safety starting

1шт.

125981

SCREW, 10-32 x 5/16 hex-hd mach

2шт.

9

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

10

379343R1

ARM, safety starting switch control

1шт.

11

375473R1

BRACKET, safety starting switch control arm

1шт.

12

375474R1

NUT, safety starting switch control bracket

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

Выбрано товаров: 21
