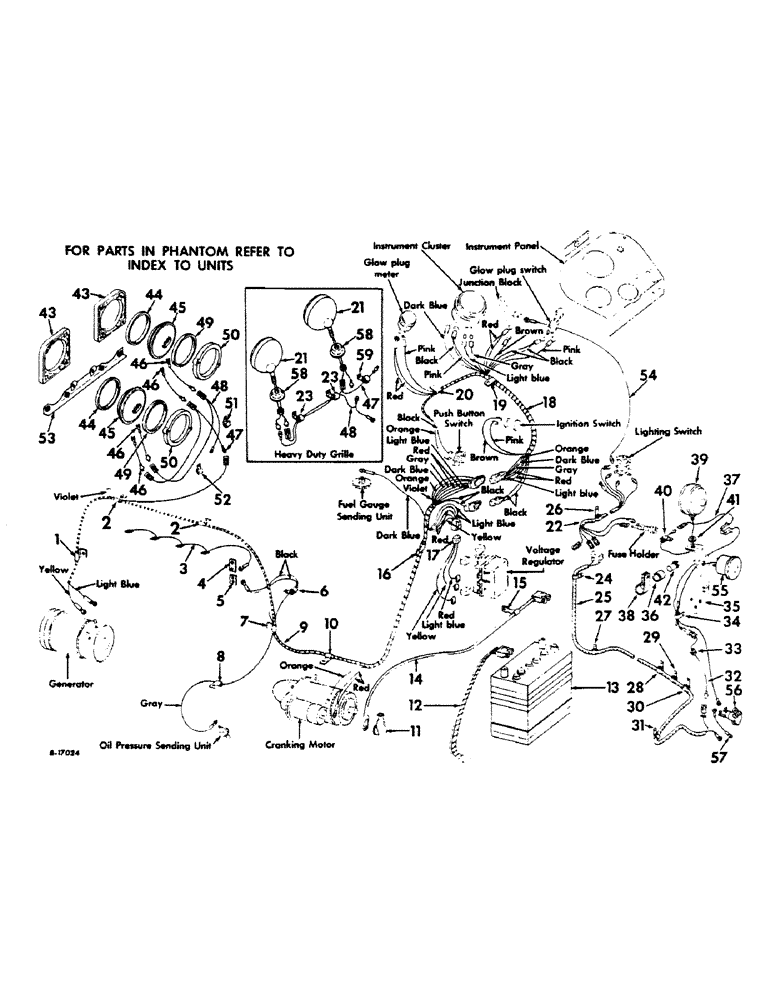

Запчасти Case IH 504 (117) - ELECTRICAL SYSTEM, STARTING & LIGHTING, W/GENERATOR, INTERNATIONAL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

370383R1

CLIP

cable harness, on generator bracket upper mounting bolt

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on valve cover mounting studs

2шт.

3

319966R91

CABLE PULLING GRIP

HARNESS ASSY, glow plug

1шт.

4

304313R1

BRACKET

junction block

1шт.

5

42915D

BLOCK

junction

1шт.

103088

NUT,#10-32

10-32 hex, mach screw

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable, on exhaust manifold rear mounting stud

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on intake manifold rear mounting bolt

1шт.

8

366460R1

CABLE CLIP

CLIP, cable, on crankcase breather pipe flange

1шт.

9

377111R91

HARNESS ASSY, cable

1шт.

10

362123R1

CLIP

cable harness, on fuel tank support LH front bolt

1шт.

11

364910R1

BOOT

COVER, solenoid terminal

1шт.

12

378760R91

CABLE

STRAP W/BOLT, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

13

395599R1

BATTERY, Prestolite 30H-A9Z, 12 volt

1шт.

14

377114R91

CABLE PULLING GRIP

CABLE W/COVER AND BOLT, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

15

363660R1

CLIP

cable, on governor control balance spring anchor upper mounting bolt

1шт.

16

362123R1

CLIP

cable harness, on voltage regulator support RH mounting bolt

1шт.

17

376868R91

CABLE

ASSY, voltage regulator

1шт.

18

380401R91

CABLE PULLING GRIP

HARNESS ASSY, instrument panel

1шт.

19

370383R1

CLIP

cable harness, on governor control friction plate upper mounting bolt

1шт.

20

362121R1

CLIP

cable harness, on instrument cluster lower mounting stud

1шт.

21

377866R91

LIGHT

ASSY, sealed beam head, only serviceable item is sealed beam unit 371443R91

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

22

377298R91

HARNESS ASSY, lighting cable

1шт.

23

370383R1

CLIP

cable harness, on headlight mounting bracket bolts

2шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on voltage regulator support LH mounting bolt

1шт.

25

381543R91

HARNESS ASSY, rear light cable

1шт.

26

362123R1

CLIP

light cable harness, on upper mounting bolt of governor friction plate

1шт.

27

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on clutch housing top cover LH bolt

1шт.

28

358986R1

CABLE CLIP

CLIP, rear light cable, on rear frame spacer LH side

1шт.

29

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on hyd housing LH side

1шт.

30

362123R1

CLIP

rear light cable, on rear frame spacer LH side mounting bolt

1шт.

31

358986R1

CABLE CLIP

CLIP, rear light cable, on LH fender front LH mounting bolt

1шт.

32

376857R91

CABLE ASSY, flasher light junction

1шт.

33

363846R1

GROMMET

flasher light cable

1шт.

34

366460R1

CABLE CLIP

CLIP, flasher light cable, on tail and flasher light bracket rear mounting bolt

1шт.

35

395517R1

BRACKET, tail and flasher light

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

36

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

37

394382R91

CABLE ASSY, Serial Range: flasher-light

1шт.

38

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

SCREW, 1/4-20 x 3/4 C-Z hex-hd cap

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

39

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp 9417866 lens, amber, guide, 396585R1 or lens, red, guide, 397442R1 or lens, amber, Dietz, 899280R1 or lens, red, Dietz, 899279R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

40

358986R1

CABLE CLIP

CLIP, flasher light cable, on flashing warning light stud

1шт.

41

394262R1

WASHER

GASKET, flashing warning light

1шт.

42

394132R91

FLASHER UNIT

FLASHER ASSY, warning light

1шт.

43

377302R1

HOUSING, headlight

2шт.

153797

SCREW, 1/4-20 x 1 cr-rec-fil-hd mach

6шт.

44

377303R1

RING

headlight retaining, front

2шт.

45

373662R91

LAMP

LIGHT ASSY, sealed beam head

2шт.

46

377300R91

CABLE ASSY, headlight junction

4шт.

47

377299R91

CABLE ASSY, harness to headlight junction

1шт.

48

377301R91

CABLE ASSY, headlight, Serial Range: junction-ground

1шт.

49

377304R1

SPECIAL RING

RING, headlight retaining, rear

2шт.

50

377305R1

RING

headlight clamping

2шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

10-32 x 1-1/2 cr-rec-fil-hd mach

4шт.

51

366460R1

CABLE CLIP

CLIP, headlight cable, on hood grille housing support lower mounting bolt

1шт.

52

366460R1

CABLE CLIP

CLIP, headlight cable, on radiator brace RH side

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

53

377535R11

BRACE ASSY, headlight mounting

1шт.

377536R91

NUT, 1/4-20 floating cage

2шт.

54

376869R91

CABLE

ASSY, lighting switch to junction block

1шт.

55

379789R91

LAMP

LIGHT ASSY, tail, only serviceable items are gasket 81714R1, lamp 142450 and lens 157729R1

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

56

362002R92

SOCKET

ASSY, electric breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

57

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

58

370307R1

SEAT

headlight mounting ball

2шт.

59

370383R1

CLIP

headlight cable, on oil cooler upper RH mounting bolt

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.
