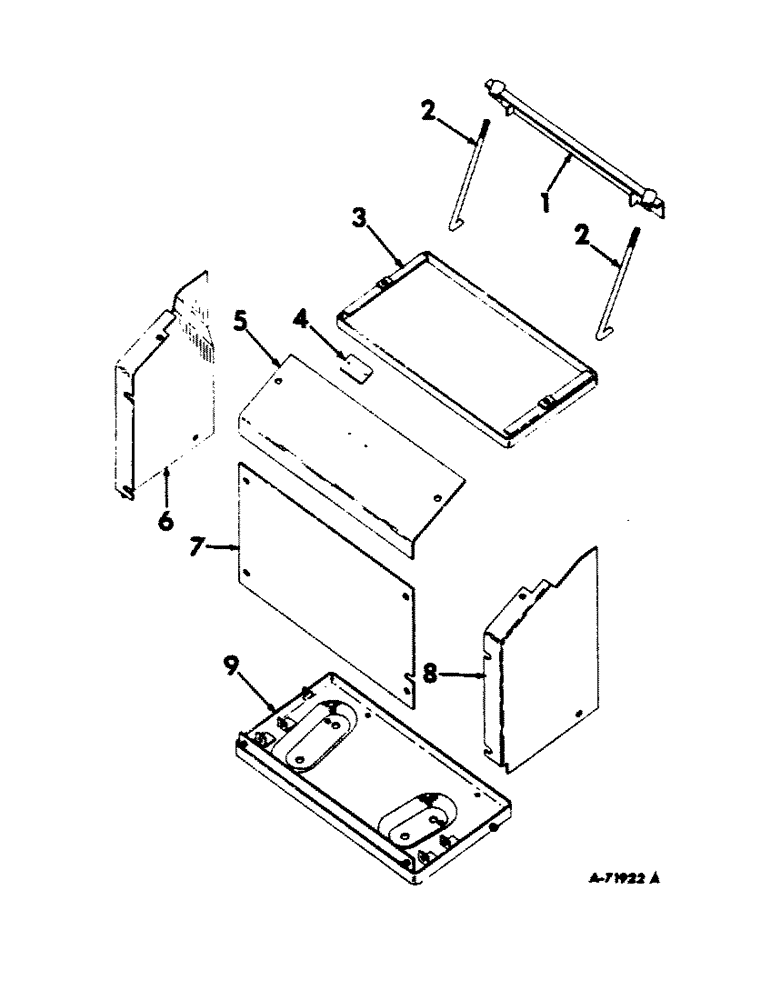

Запчасти Case IH 504 (097) - ELECTRICAL SYSTEM, BATTERY HOLDER, INTERNATIONAL TRACTORS (06) - ELECTRICAL SYSTEMS

1

395337R1

BRACKET

CLAMP ASSY, battery hold-down, carbureted engine tractors

1шт.

2

377837R1

ROD

battery hold-down, carbureted engine tractors

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga

2шт.

3

380463R11

CLAMP ASSY, battery hold-down, diesel engine tractors

1шт.

4

371372R1

PLATE, gear shift

1шт.

4

371371R1

PLATE, gear shift, tractors with torque amplifier

1шт.

4

311270R1

PLATE, gear shift, tractors with forward and reverse drive

1шт.

9402597

RIVET, 1/16 x 3/16 mushroom hd

2шт.

5

377841R1

COVER, battery housing top

1шт.

377681R1

SCREW, 5/16-18 x 3/8 slt-hex, washer-hd cap

2шт.

6

377839R11

PANEL ASSY, battery housing LH side, carbureted engine tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

3шт.

6

380466R91

PANEL ASSY, battery housing LH side, diesel engine tractors

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-18 x 1-3/4 sq-hd cone-pt set

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

7

384973R11

PANEL ASSY, battery housing rear

1шт.

8

377840R11

PANEL ASSY, battery housing RH side, carbureted engine tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga

3шт.

8

380467R91

PANEL ASSY, battery housing RH side, diesel engine tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-18 x 1-3/4 sq-hd cone-pt set

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga

3шт.

9

377833R11

BASE ASSY, battery support, carbureted engine tractors

1шт.

9

380461R91

BASE ASSY, battery support, diesel engine tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.
