Запчасти Case IH 504 (091) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR (06) - ELECTRICAL SYSTEMS

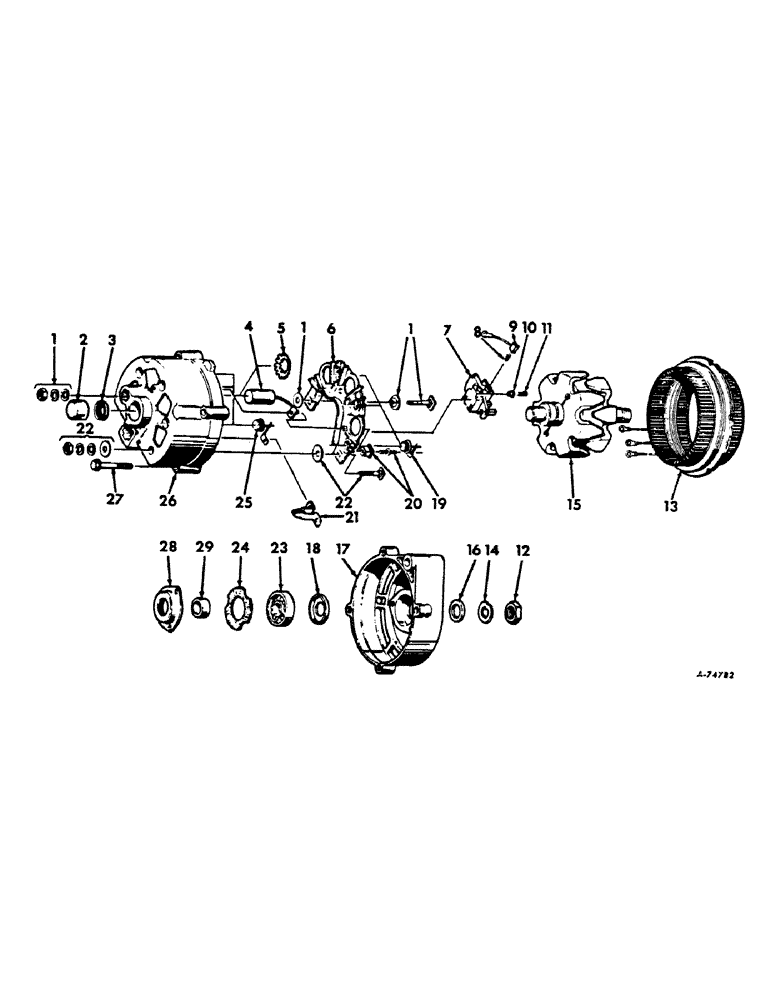

Схема запчастей Case IH 504 - (091) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR (06) - ELECTRICAL SYSTEMS
6
29
10
1
4
24
23
9
11
17
22
18
13
28
25
26
5
12
14
22
27
19
7
2
16
1
20
21
15
1
8
3

Артикул

Название

Примечание

Количество

1100720

ALTERNATOR

ALTERNATOR GENERATOR ASSEMBLY, order 1100805

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1100805

GENERATOR

ALTERNATOR GENERATOR ASSY, 702337C91

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL PACKAGE, ground

1шт.

2

7451326

BEARING

BEARING, slip ring end roller, for use with 1100720

1шт.

2

7451763

BEARING

BEARING, slip ring end roller, for use with 1100805

1шт.

3

1959790

SEAL

RETAINER W/FELT, slip ring end, for use with 1100720

1шт.

3

1961323

SEAL

RETAINER, slip ring end felt, for use with 1100805

1шт.

4

1959455

CAPACITOR

CAPACITOR, for use with 1100805

1шт.

1959389

INSULATOR

INSULATOR, capacitor terminal screw

1шт.

1959323

WASHER, capacitor terminal screw

1шт.

5

1960750

VALVE SPRING

SPRING, capacitor retaining, for use with 1100805

1шт.

6

1959828

PACKAGE

HEAT SINK ASSEMBLY

1шт.

7

1964682

HOLDER

HOLDER ASSEMBLY, brush

1шт.

8

1955519

SPRING

SPRING, brush

2шт.

9

NSS

NOT SOLD SEPARAT

BRUSH, order holder assembly 1964682

2шт.

10

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1911324

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR ASSEMBLY

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1964695

ROTOR

ROTOR ASSY, for use with 1100720

1шт.

15

1958565

ROTOR

ROTOR ASSY, for use with 1100805

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

1947344

SLINGER

SLINGER, drive end grease, for use with 1100720

1шт.

19

1959829

DIODE

DIODE, positive, for use with 1100720

3шт.

19

1964353

DIODE

DIODE PACKAGE, positive, for use with 1100805

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

1956982

TERMINAL, field & indicator light

2шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

954378

BALL BEARING

BEARING, drive end ball, for use with 1100720

1шт.

23

904751

BEARING

BEARING, drive end ball, for use with 1100805

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1959830

SET

DIODE, negative, for use with 1100720

3шт.

25

1964354

DIODE

DIODE PACKAGE, negative, for use with 1100805

3шт.

26

1959827

FUNNEL

FRAME FRAME W/NEGATIVE DIODE, bearing retainer and condenser, for use with 1100720

1шт.

26

1969329

FUNNEL

FRAME FRAME W/NEGATIVE DIODE, bearing retainer and condenser, for use with 1100805

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSEMBLY, drive end bearing

1шт.

1956984

SCREW

SCREW, drive end bearing retainer

1шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.

Выбрано товаров: 52
