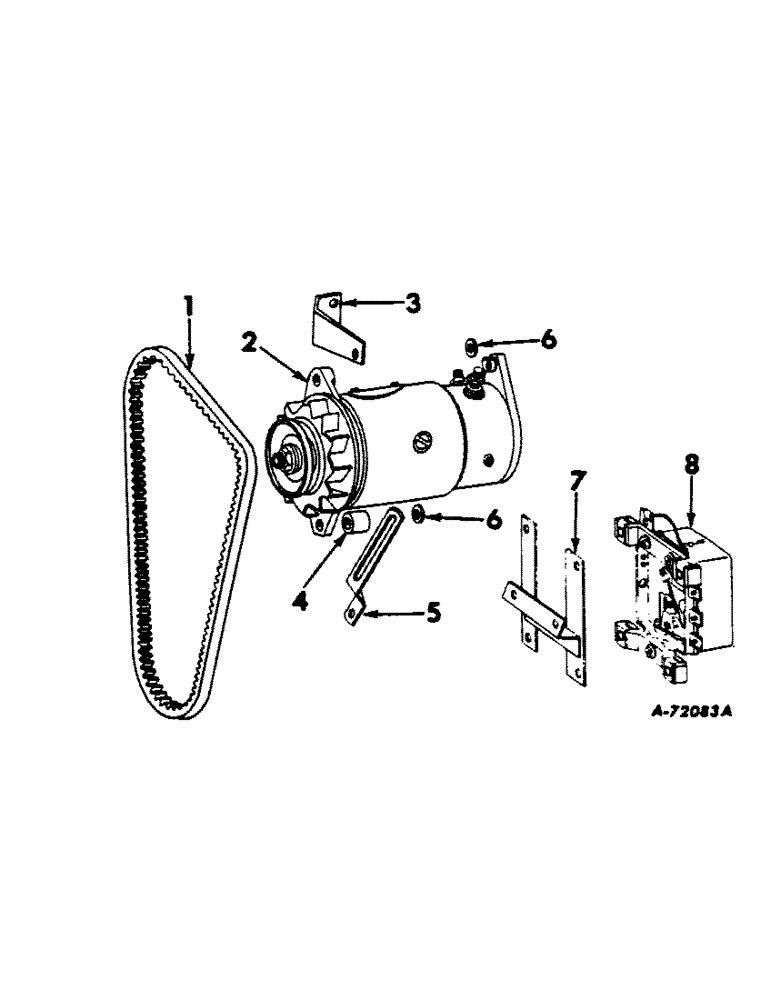

Запчасти Case IH 504 (086[A]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

315969R1

BELT

Fan, Generator and water pump

1шт.

2

1100402

GENERATOR

ASSY, 317707R91 12 volt, regular duty, for components see list of parts under details of generator

1шт.

2

1100403

GENERATOR ASSY, 375461R91 12 volt, heavy duty, for components see list of parts under details of generator

1шт.

225-14112

NUT,#12-24

12-24 hex, mach screw

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

492-11012

LOCK WASHER,#12

WASHER, lock, #12

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

3

320278R11

BRACKET ASSY, generator, Farmall tractors

1шт.

3

308386R1

BRACKET, generator, International tractors

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

280184R1

SPACER, generator brace, long

1шт.

5

308387R1

BRACE

generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

280185R1

SPACER

generator brace, short

1шт.

7

378054R91

BRACKET, voltage regulator, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

1119270E

REGULATOR ASSY, voltage, 375055R91 12 volt, for components see list of parts under details of voltage regulator

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
