(08-13) - ELECTRICAL, ELECTRICAL WIRING, 686 AND 86 DIESEL TRACTORS WITH D-310 ENGINE

Запчасти Case IH HYDRO 86 (08-13) - ELECTRICAL, ELECTRICAL WIRING, 686 AND 86 DIESEL TRACTORS WITH D-310 ENGINE (06) - ELECTRICAL

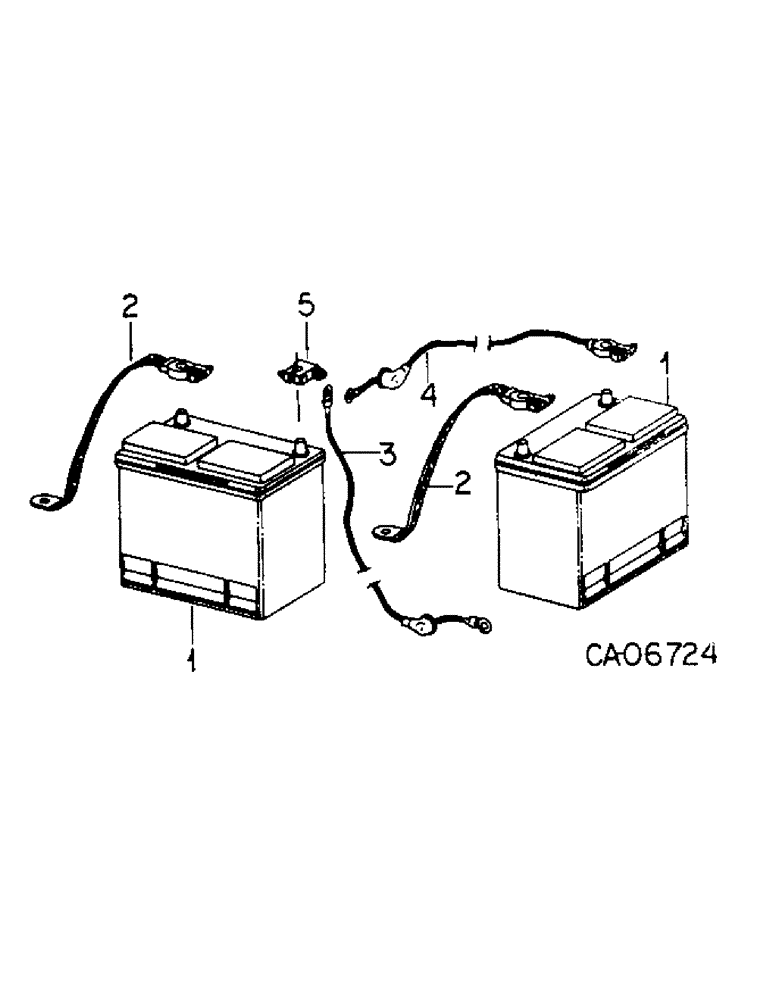

Схема запчастей Case IH HYDRO 86 - (08-13) - ELECTRICAL, ELECTRICAL WIRING, 686 AND 86 DIESEL TRACTORS WITH D-310 ENGINE (06) - ELECTRICAL
5
2
4
1
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IHMF24PF

DRY BATTERY

maintenance free, 12 volt or

2шт.

1

121766C1

BATTERY

maintenance free, 12 volt

2шт.

2

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

2шт.

3

131091C1

CABLE

ASSY, battery to solenoid, Consists of

1шт.

364910R1

BOOT

INSULATOR

1шт.

4

131090C1

CABLE

ASSY, Serial Range: battery-battery

1шт.

364910R1

BOOT

INSULATOR

1шт.

383619R1

COVER

INSULATOR

1шт.

5

130984C1

CABLE

TERMINAL, battery cable

1шт.
