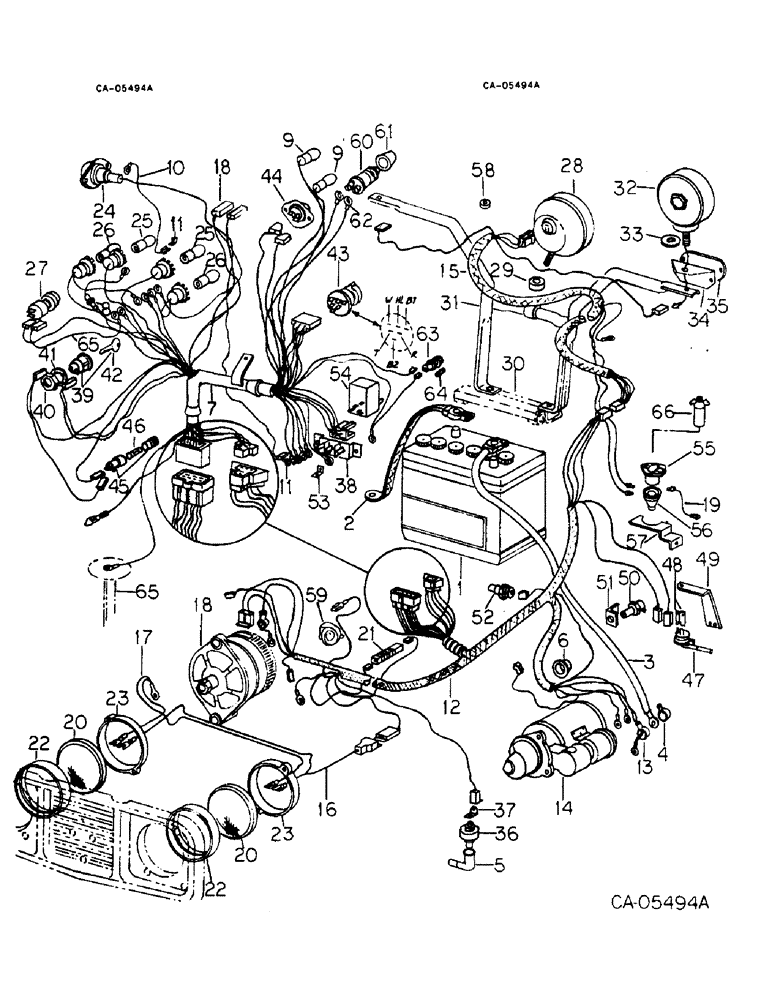

Запчасти Case IH HYDRO 86 (08-05) - ELECTRICAL, ELECTRICAL WIRING, 666 AND 86 GASOLINE TRACTORS (06) - ELECTRICAL

1

IHMF24PF

DRY BATTERY

12 volt maintenance free or

2шт.

1

121766C1

BATTERY

12 volt maintenance free

2шт.

2

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

3

377114R91

CABLE PULLING GRIP

CABLE ASSY, Serial Range: battery-solenoid

1шт.

4

364910R1

BOOT

COVER, solenoid terminal

1шт.

5

444162

ELBOW

1/8-27 90 deg male auto pipe street, oil pressure switch mounting, optional w/144163 or 9409931

1шт.

6

399397R1

BUSHING

snap

1шт.

7

121735C1

HARNESS

ASSY, panel cable

1шт.

8

145510

FUSE,1 Amp, Type 3AG

cartridge type agc-1

1шт.

9

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

10

404399R1

CABLE ASSY, hydrostatic control light ground

1шт.

11

365501R1

TERMINAL CONNECTOR

TERMINAL

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

12

121737C1

HARNESS

ASSY, front cable

1шт.

13

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

14

MOTOR, cranking, Delco-remy, Refer to cranking motor listing this group

1шт.

15

121738C1

HARNESS ASSSY, combination light

1шт.

16

65961C1

CABLE ASSY, head light junction

1шт.

17

65962C1

CABLE

ASSY, head light ground

1шт.

18

ALTERNATOR-GENERATOR ASSY, Refer to alternator-generator listing this group

1шт.

19

104388C2

CABLE

ASSY, seven pin, Serial Range: connector-ground

1шт.

20

373662R91

LAMP

UNIT ASSY, head light, sealed beam, optional w/131508C1

2шт.

20

131508C1

LAMP BASE

LAMP ASSY, seal beam, Tungsten-halogen, optional w/373662R91

2шт.

21

548239R2

RECTIFIER

DIODE ASSY

1шт.

22

529674R1

RETAINER

head light

2шт.

23

377305R1

RING

headlight clamping

2шт.

21268R1

SCREW

10-24 x 1-1/2 zn slt-fil hd mach

4шт.

24

399232R91

LIGHT

ASSY, hydrostatic control

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

6-32 x 1/2 zn cr-rec pan hd mach

2шт.

446130

WASHER,#8

11/64 x 13/32 x 18 ga C-Z

2шт.

134530

NUT,Hex, #6 - 32

2шт.

25

9412348

BULB,C2B, #257, 14V

LAMP NO. 257 12 VOLT, optional w/24929R1, oil and amp tellite flasher

2шт.

26

9417863

BULB,C2F, #1895, 14V

LAMP NO. 1895 12 VOLT, tachometer and gauge cluster

4шт.

27

109369C91

LIGHT ASSY.

LIGHT ASSY TRANSMISSION OIL TEMPERATURE WARNING, only serviceable parts are lense, 71652C1 and bulb 200257H1

1шт.

28

387729R92

LIGHT ASSY.

LIGHT ASSY, combination rear and tail, only serviceable parts are sealed beam unit, 371461R91, rubber retainer, 676078R1 and lamp 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 c-z int tooth lock

1шт.

350920R1

CLAMP

1шт.

29

365503R1

SPACER

combination rear light

1шт.

30

389018R11

PLATE

ASSY, rear light and IPTO handle support

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

31

535867R1

SUPPORT ASSY, warning light

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

32

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning

1шт.

33

394262R1

WASHER

GASKET, flasher warning lamp

2шт.

120371

NUT,1/2"-20, G5

2шт.

34

533091R1

BRACKET, reflector mounting

2шт.

35

533092R1

REFLECTOR

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

no. 8-18 x 1/2 c-z cr-res-pan hd tap

4шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 ext tooth

2шт.

36

392249R92

SWITCH

eng oil pressure

1шт.

37

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch

1шт.

38

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

39

403562R2

SWITCH

ASSY, ignition key

1шт.

40

365502R1

NUT

switch mounting

1шт.

41

375431R1

LOCK WASHER

switch mounting

1шт.

42

131313C1

KEY, IGNITION

switch, Replaces 382458R2

1шт.

43

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

44

397940R93

SWITCH

push button

1шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 znd rc-hd mach

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

45

376852R91

HOUSING

ASSY, fuse

1шт.

46

9428126

FUSE,20 Amp, Type SFE

cartridge SFE-30

1шт.

47

537641R1

SWITCH ASSY

neutral starting, 686 gear drive tractors

1шт.

48

384396R1

SPADE TERMINAL,Male

TERMINAL, neutral starting switch, gear drive tractors

2шт.

49

389021R1

BRACKET, neutral starting switch, gear drive tractors

1шт.

125981

SCREW, 10-32 x 5/16 hex-hd mach

2шт.

50

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, hydrostatic drive tractors

1шт.

51

534842R1

BRACKET, neutral starting switch, hydrostatic drive tractors

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

109084

NUT,1/4"-20, G5

2шт.

52

539280R1

SWITCH

temperature warning, hydrostatic drive tractors

1шт.

53

365501R1

TERMINAL CONNECTOR

TERMINAL, fuel gauge sending unit ground cable

1шт.

54

131066C91

SWITCH

ASSY, turn signal & flasher, Replaces 107344C91, Stewart Warner, not California, optional w/131209C91

1шт.

54

131209C91

SWITCH

ASSY, turn signal & flasher, Lucas ltd, not California, optional w/131066C91

1шт.

54

75370C91

PACKAGE

turn signal & flasher switch, Replaces 130816C92, California only, Consists of

1шт.

SWITCH ASSY, turn signal & flasher (NSS)

1шт.

188395R1

WIRE CONNECTOR,Male

CONNECTOR

1шт.

INSTRUCTIONS (NSS)

1шт.

55

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY, 7 pole flap lock connector

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

56

481489C1

COVER, 7 pole socket rubber

1шт.

57

121754C1

BRACKET, connector socket mounting

1шт.

58

250725R1

WASHER

SPACER, left warning light support

1шт.

59

411949C91

HORN

ASSY, Replaces 166166R91

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

60

393209R91

SWITCH

horn

1шт.

61

371487R1

CYLINDER END CAP

CAP, horn switch dust

1шт.

62

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

63

376852R91

HOUSING

ASSY, fuse

1шт.

64

9426334

FUSE,10 Amp, Type 3AG

cartridge AGC-10

1шт.

65

GAUGE, sending unit fuel, See fuel tank, supports, connections, and heat shields in group 12

1шт.

66

121646C1

TERMINAL CONNECTOR,Female

PLUG ASSY, 7 contact connector

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle & hardware, for ref no. 54

1шт.
